| Model Numbe: | XB-OTS-225L/408L | Product Name: | Environmental Reliability Program Temperature Humidity Test Chamber 80 L 150L |
|---|---|---|---|
| Temperature Control: | -60°C ~ +150 °C | Humidity Control: | 20%~98% RH |
| Body Materials: | SUS#304 Stainless Steel Plate | Compressor: | Frans/s"Tecumseh" |
| Application: | Electronic,Auto,plastic,Instrument | Temperature Accuracy: | 0.5°C |
| Temperature Rate Of Change( ºC/Min): | 3-20ºC/Min | Temp.& Humidity Uniformity: | ≤±1.5℃,≤±2.5% RH |
| Heat Up&Cool Down Time: | ≤5℃/min For Heating; ≤ 1.2℃/min For Cooling | Cooling Type: | Water Cold |
| Screen Size &Display: | 7" TFT-LCD | Lead Time: | 18 Days |
| High Light: | high low temperature chamber,temperature humidity test chamber |
||

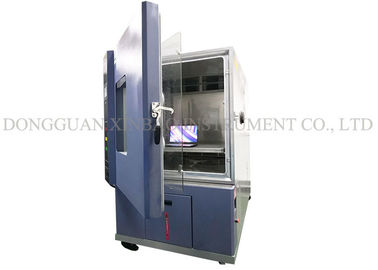

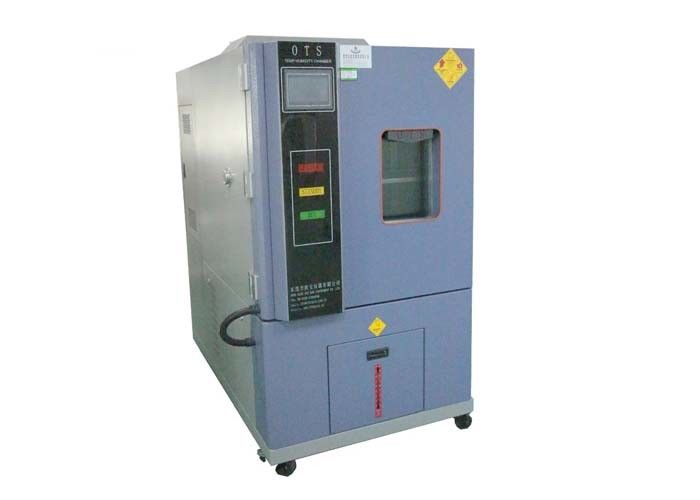

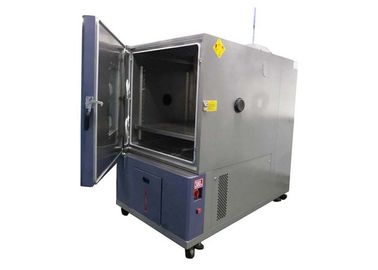

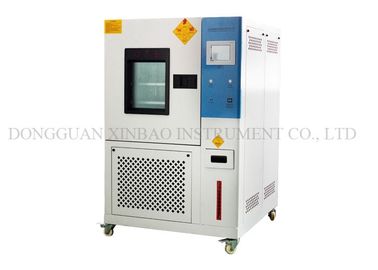

Environmental reliability program temperature humidity test chamber 80 L 150L
Chamber Summary:
Easy To Operating Performance of climate temperature humidity test chamber for electronics, plastic products, electrical appliances, instruments, metals, chemicals, building materials, food, vehicles, aerospace, medical ... Products of quality.
Easy To Operating Temperature Humidity Chamber specially test various materials resistance to heat, cold, dry, wet performance
Working principle
Easy To Operating Temperature Humidity Chamber (heating and cooling) and humidification is composed of two parts. Through installation in box within top Department of rotating fan, will air row into box achieved gas cycle, and balance box within of temperature, and humidity, by box built-in of temperature, and humidity sensor collection of data, biography to temperature, and humidity controller (micro information processing device) for edit processing, issued thermostat adjustable wet instruction, through air heating unit, and condensation tube and sink within heating evaporation unit of common completed.
Control
English LCD display LCD touch-panel, the screen on the input data, and programmable temperature and humidity, backlight adjustable 17, curve, curve of setting/display value. Can display a variety of alerts, failure occurs through the screen display, eliminating failures, eliminate misuse. Multi-PID control functions, sophisticated monitoring functions, and the data displayed on the screen.
Main features
1, perfect design: circular shape and surface spray, high-texture appearance, and no reaction with flat handle, easy, safe and reliable.
2, bright, broad vision of the large observation window: The three vacuum coating windows and Philips energy-saving fluorescent lamps, without wipers defogging keep clear observation results can always observe the condition of the test sample.
3, humidification system piping and control circuit separation: humidification system piping and power supply, controller, circuit board separation, avoid the affected pipeline leakage circuit to improve safety.
4, advanced and reliable refrigeration and control systems: closed compressor imported from Europe, imported environmentally friendly refrigerant, a world-renowned brand refrigeration device, imported LCD touch screen controller, friendly interface, easy to learn
Parameters:
| Product name | Temp Humidity Chamber | Model Number | XB-OTS-225/408L | ||
| Power | 3∮ AC380V 50Hz | Weight | 360kg/380kg | ||
| Interior size | 60*75*50 /80*85*60 | Exterior size | 110*167*110/130*177*120 | ||
| Customized size | acceptable | Cooling type | Water cold | ||
| Temperature range | --60℃ ～150℃ | Humidity range | 20% ～98%RH | ||
| Temp.& humidity control fluctuation | ≤±0.5℃, ≤ ±2.5%RH | Indication resolution | 0.01℃, 0.1 %RH | ||
| Temp.& humidity Uniformity | ≤±1.5℃,≤±2.5% RH (Put 9 sensor into inner chamber with 9 different location to get uniformity ) | ||||
| Heat up&Cool down time | ≤5℃/min for heating ,≤1.2℃/min for cooling | ||||
| Chamber materials |
SUS#304 stainless steel for Inner chamber with thickness 1.5mm Steel plate for external chamber with thickness 1.5mm |
||||
|
Insulation materials |
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm | ||||
| Door |
Hinged door, single door open in the central cabinet ( the front of the chamber) Heat distribution on the door (automatic adjustment) anti-frost, anti-condensation insulating glass observation window Door electric equipment (automatic adjustment) anti-frost, anti-condensation device Preparation inside the door lights (LED longevity and efficient light source) |
||||
| Accessories |
Communication interface: RS232 Test hole: diameter 50mm 1 pieces (size can be customized) Observation window: Tempered glass (size can be customized) One light: 9 w/AC220V Foot wheel: four castor, four balance goblet Sample shelf: stainless steel rack 2 pieces In the total bearing weight (bottom and rack combined) no more than: 200 kg |
||||
| Control panel | Controller+ operation button+over heating protection device +RS232 and USB interface | ||||
|
Air Circulation& Drain system |
(1) Centrifugal fan & imported motor (2) Reverse uniflow(air flow direction) (3) Flow-throws wind (4) Inner air circulation fan, wind channel and stainless steel cycle fan, through the top window and air diffuser, the wind will out uniformly from the top, which could reach the purpose of control temperature uniformly. (5) Drain system uses swirl type outlet and U-trap deposition unit
|
| Safety protection device |
(1)Electricity leak protection. (2)Lightning strike protection, ZRN lightning arrester inside the controller. 2.1 Sensor dates transferred inside the microcomputer. 2.2 Temp. sensors—open circuit or short circuit ( + - OVER ) 2.3 The first level over temp. protection (3)Error detected units 3.1 The second level over temp. Protection—electronic over temp protection unit (Japan). 3.2 The third level over temp. protection. 3.3 Compressor protection—Refrigerants pressure protection & overload protection.(Denmark) 3.4 Extended protection unit— two suppletive ports. (4)Error protection— power cut off, error reports shown in LCD panel and audible alarm starts. (5)Dynamic high and low temperature protection. (6)Ambient temperature protection — The inner chamber and specimens automatically return back to ambient temperature after the operation stop. |
|
|
(1)Non fuse protection switch (2)Overheat alarm protection/ (3)Compressor over temp ,over current and over load protection (4)Phase sequence protection (5)Motor over-current protection |
||
|
Package and transport |
Package with Export Standard Wooden Box
|
Other model for options
| Model | XB-OTS-225L | XB-OTS-408L | XB-OTS-800L | XB-OTS-1000L |
| Chamber Volume(L) | 225L | 408L | 800L | 1000L |
| inner chamber size(cm) | 60*75*50 | 80*85*60 | 100*100*80 | 100*100*100 |
| External size(cm) | 110*167*110 | 130*177*120 | 150*192*140 | 150*192*160 |
Application :
Standard Features:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30IEC68-2-03 EIA - 364-31C EIA - 364-59
