Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Rotation Speed: | 150-300rpm |
|---|---|---|---|
| OEM: | Welcomed | Weight: | 200-600kg |
| Time Setting: | 0-999hours | Amplitude: | 25.4mm(1inch) |
| High Light: | vibration testing equipment,vibration lab equipment |
||

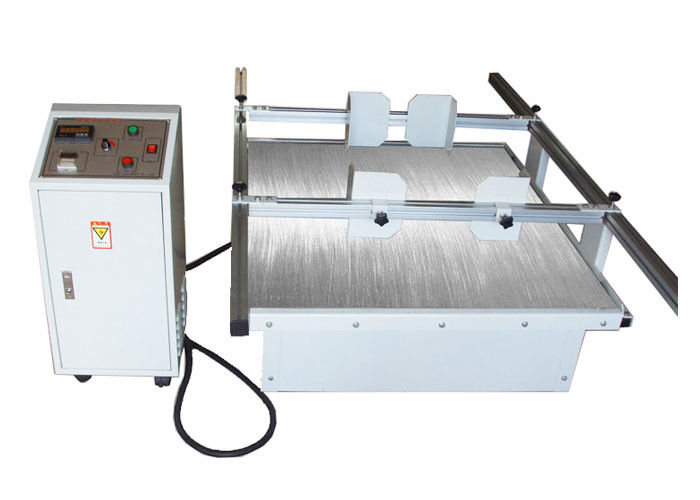

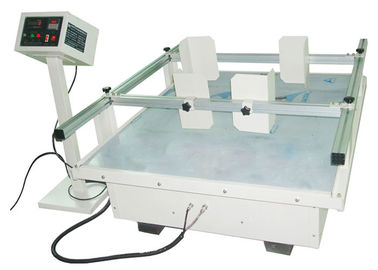

Carton packaging simulation vehicle transport vibration test machine
Introductions:
This product is for a variety of packaging materials, PC boards, electrical products .
as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance.... simulate the transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.
Technical Parameters:
| Frequency range | 60~300RPM cycle/min (Adjustable) |
| Vibration mode | Rotary vibration (Vertical and horizontal) |
| Amplitude range | 25.4mm(1 inch) meet ISTA/EN71 |
| Max .Load | 100KG |
| Accuracy Grade | 0.5 |
| Simulation speed | 25 ~ 40km / h |
| Working Table size(L*W)(mm) | 1000*1200 mm |
| Digital speed | Accuracy is not greater than ± 3 rev / min |
| Work time setting range | 0~999H99M |
| Speed display accuracy | 1RPM cycle/min |
| Motor Power | 1HP |
| Max.current | 5A |
| Power | 1 phase 220V 50Hz/60Hz |
| Overall dimensions | 1255*1070*660 mm |
| Machine weight | 125kg |
| Environmental conditions | temperature: 5 ~ 40 ℃, relative humidity ≤ 85% |
| Speed control mode | DC speed control or AC frequency control |
| *** Standard: ASTM-D999(A1&A2) ISTA PROJECT 2A | |
Analog Transport Vibration Test Bench Test Standard Requirements for Equipment:
1. ISTA test standard is the American Transportation Association standard
2. ASTM test standards are American Materials Association standards
Two standard requirements for simulated transport vibration are:
1. Amplitude is 25.4mm (1 inch, fixed)
2. Frequency 1.5-5Hz (or 100-300 r / min adjustable)
3. The test basis is: T = 14200 / CPM (based on the total number of vibration is 14200 times)
