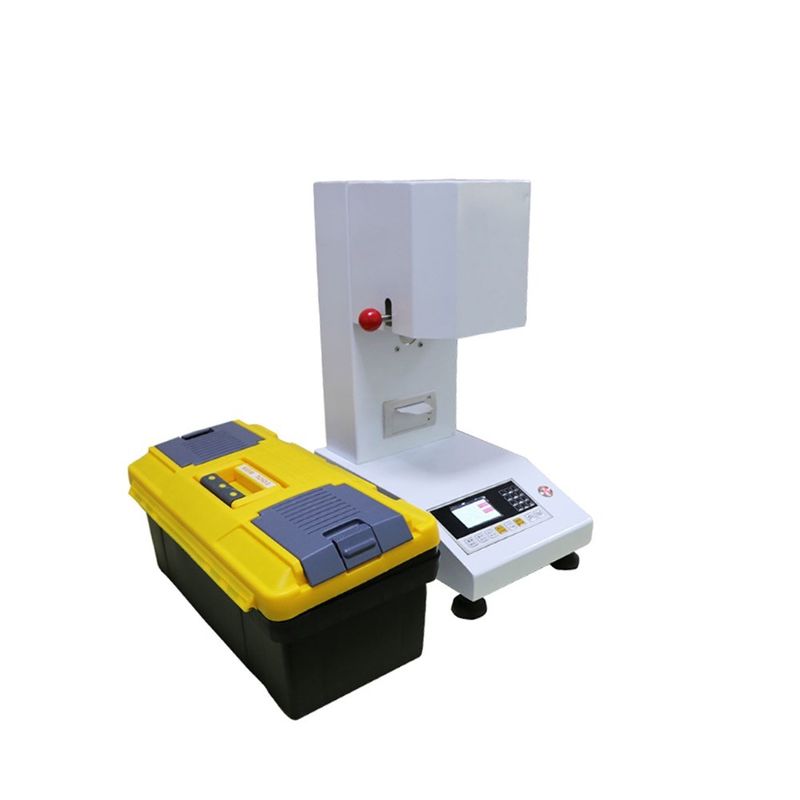

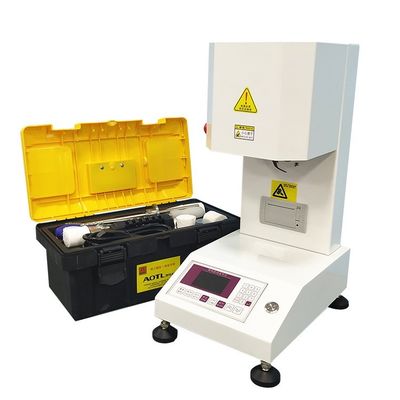

ASTM D1238 AC220V Melt Flow Rate Meter For Plastic Production

ASTM D1238 AC220V Melt Flow Rate Meter For Plastic Production
ASTM D1238 AC220V Melt Flow Rate Meter For Plastic Production ASTM D1238 AC220V Melt Flow Rate Meter For Plastic Production

Large Image :  ASTM D1238 AC220V Melt Flow Rate Meter For Plastic Production

Product Details:
Place of Origin: Dongguan China
Brand Name: OTS
Certification: CE
Model Number: Melt Flow Rate Meter (XB-OTS-400A)
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for ISO 4918 Floor Caster Tester for PVC Flooring Testing
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Key Words: Melt Flow Rate Meter Temperature Range: Room Temperature - 320 ℃
Display Resolution: 0.1 ℃ Delivery Time: 20 Days
Brand Name: OTS Warranty: 14Months
Testing Load: (8 Grades In Total) Cutting Method: Players Can Move Or Cut Automatically
High Light:

ASTM D1238 Melt Flow Rate Meter

,

AC220V Melt Flow Rate Meter

,

GB/T3682 Lab Testing Equipment

Display resolution 0.1 ℃ Melt Flow Rate Meter / Warranty 14Months​




Introduction



The melt flow rate meter is 4.3tft color screen touch operation, PID temperature control, better temperature stability, uniformity.Compared with the common model A, A variety of upgrades and improvements were made. The control part was upgraded to 4.3 touch. The core components were upgraded according to ASTM1238.Built-in program control is more user-friendly.





Meet the standard



ASTM D1238,ISO 1133,GB/T3682





Technical Parameters



1. Extrude the material:

Diameter of drum mouth: 9.5504 0.0076 mm, in accordance with ASTM D 1238-04 5.2

Barrel length: 162 mm in accordance with ASTM D 1238-04 5.2

Cylinder diameter, sensor hole, finish, hardness in accordance with ASTM D 1238

Die diameter: 2.0955 0.0051 mm in accordance with ASTM D 1238-04 5.3

Die opening length: 8.000 0.025 mm in accordance with ASTM D 1238-04 5.3

Piston head diameter: 9.4742 0.0076 mm in accordance with ASTM D 1238-04 5.4.1

Piston head length: 6.35 0.13 mm in accordance with ASTM D 1238-04 5.4.1

2. Standard test load (8 grades in total)

3. Temperature range: room temperature - 320 ℃

4. The constant temperature precision: plus or minus 0.5 ℃,

5. Display resolution: 0.1 ℃

6. Cutting method: players can move or cut automatically

7. Constant temperature time: can work continuously

8. Micro printer automatic printing output

9. Power supply voltage: 1phase AC220V 10% 50HZ



Application



Plastic, resin is used for measuring melt flow rate when the viscous flow state MFR value, it applies to the polycarbonate, higher temperature of aromatic sulfone, nylon engineering plastics, can also be applied to polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, poly formaldehyde (POM), polycarbonate (PC) resin with lower melting temperature, such as plastic test, widely used in plastic production, plastic products, such as petroleum and chemical industry and related colleges and universities, scientific research units, and the commodity inspection department.Melt Flow rate instrument is suitable for the Designation: D 1238-04 Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer1 "in the Standard of regulation of Thermoplastics Melt mass Flow rate measurement, equivalent adopted of this Standard, and can meet the ISO 1133:Standard test for determination of mass flow velocity of thermoplastic melts.The melt flow rate meter is a desk-top structure with reasonable design, stable and reliable performance, beautiful appearance and convenient operation.



Product features



1. 4.3TFT color screen touch operation control

2. PID dual zone temperature control, heating speed, high constant temperature precision

3. After packing, can quickly restore the constant temperature state

4. The time is accurate to 0.1s

5. Automatic and manual cutting test method can be adopted

6. Equipped with a printer to automatically print out the test results
