Product Details:
Payment & Shipping Terms:
|
| Test Standard: | SJ/T11169-1998(eqv UL 1642:199 | Test Cover Width: | 12 Inches (305 Mm) X Depth 14 In |
|---|---|---|---|
| Flame Hight: | 10~ 75±2 Mm | Burner: | Bunsen Burner, Nozzle Diameter O |
| Burning Gas Demand: | High Purity Liquefied Petroleum G | Power Supply: | AC 1 Phase 220V 60/50Hz |
| Test Hole Diameter: | 102mm | Flame Application Time: | 0 ~ 999.9 Seconds ± 0.1 Seconds |
| High Light: | battery testing equipment,battery and cell test equipment |
||

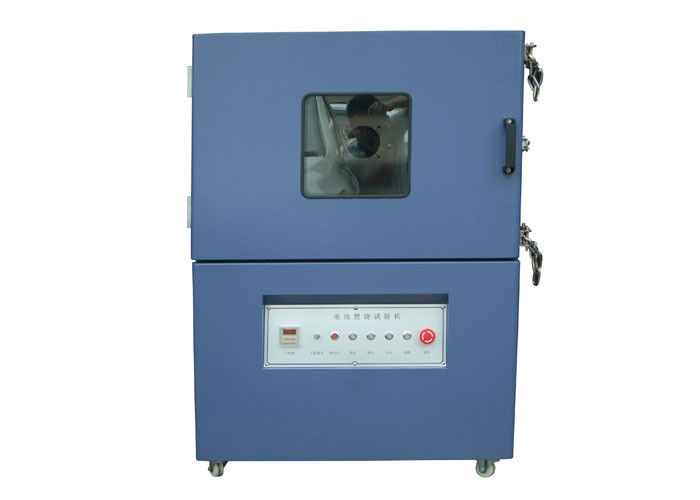

Battery Fire Testing Burning Testing Machine
Introduction

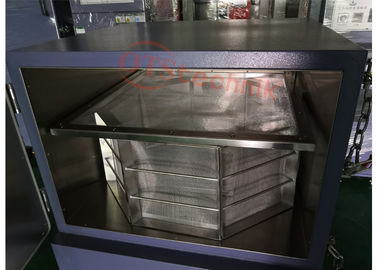

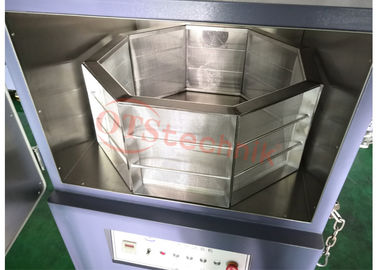

Battery Burning Test Machine is suitable for lithium battery (or battery pack) flammability test. Drill a round hole with a diameter of 102 mm on an experimental platform and place a wire mesh on the round hole to place the measured battery on the wire mesh. Install an octagonal aluminum mesh around the pattern (then ignite the burner, heat the sample until the battery explodes or the battery burns, and the combustion process is timed.
Technical Parameter
| Model | XB-659 |
| Display Method | PLC Touch Screen |
| Burner | Bunsen burner, nozzle diameter of 9.5mm long about 100 mm |
| Burning gas demand | High purity liquefied petroleum gas (configured by yourself) |
| Flame application time | 0 ~ 999.9 seconds ± 0.1 seconds |
| Flame hight | 10~ 75±2 mm |
| Test hole diameter | 102mm |
| Test cover width | 12 inches (305 mm) X depth 14 inches (355 mm), octagon |
| Test cover height | 24 inches (610 mm) |
| Ignition devices | Automatic ignition (remote control type control 8 meters of less than effective) |
| Use power | 1 ∮, 220V, 50 / 60Hz, |
| Test standard | SJ/T11169-1998(eqv UL 1642:1995), SJ/T11170-1998 (eqv UL 2054:1997), UL 1642[13] , GB8897.4-2002 6.3.2.9, IEC60086-4:2000 |
Features
1. The battery combustion tester is used for testing fire resistance of battery.
2. The result is according to the fire time to determine the fire resistance capability.
3. The test finish when the burning battery is exploded or burned away.
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
