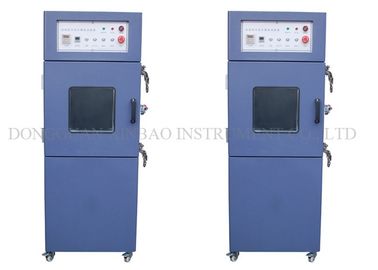

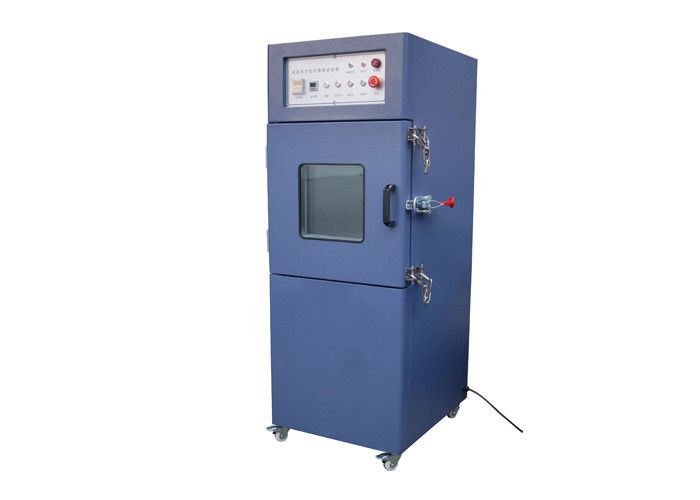

Battery Low Pressure High Altitude Test Chamber/lithium ion battery testing equipment

Battery Low Pressure High Altitude Test Chamber/lithium ion battery testing equipment
Battery Low Pressure High Altitude Test Chamber/lithium ion battery testing equipment Battery Low Pressure High Altitude Test Chamber/lithium ion battery testing equipment

Large Image :  Battery Low Pressure High Altitude Test Chamber/lithium ion battery testing equipment

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE ISO
Model Number: XB1006
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets In stock (Min. Order)
Price: Negotiable
Packaging Details: packaged in wooden cases
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Set/Sets per Month Battery Low pressure test chamber
Detailed Product Description
Standard: UL,IEC,UN,GB Display Screen: PLC Touch Screen
Application: Battery Power Supply: AC380V, 50~60Hz, 5A
Environment Temperature: 20±5℃ Testing Time: 0~999H/M/S (can Be Reset )
Normal Pressure Rangea: 11.6 KP(can Be Reset Usage: Process Testing Machine
High Light:

battery testing equipment


battery and cell test equipment

Battery Low Pressure High Altitude Test Chamber

Product Description


Battery low voltage high altitude simulation test chamber and a simulated testing machine for UL, IEC, UN, GB standard test requirements and design, such as at the low pressure storage status of the samples in a short time, can be automatically controlled trial cycle, the whole monitoring the pressure change in the cabinet, test can be automatically terminated. The machine simulation batteries and battery pack in pressure is equal to or less than 11.6 Kpa and environmental temperature for (20 + 5) ℃ condition for 6 hours, if the battery with no leakage, no exhaust, no break-up, no rupture and no fire, and each experimental battery or battery pack after test the open circuit voltage of not less than 90% of its voltage before the simulated experiment, is qualified.




1. Carton material: steel plate paint treatment
2. Inner box material: stainless steel
3. Various takeovers: special steel materials
4. Storage partitions: 304 stainless steel frame
5. Inner box size: 300*300*300mm
6. Digital display vacuum control table, the pressure range of 1-60kPa adjustable, commonly used 11.6kPa
7.Automatically control air input and output and automatically control air pressure
8. Door seal Use high temperature silicone seal
9. Observing the glass window : The glass door window with the tempered glass observation window allows the user to clearly observe the interior of the box.
10. Supply voltage: AC380V 50Hz, 5A
Note: The internal temperature of the laboratory must be controlled at (20°C+5°C) to meet the temperature requirements in the test box when the battery is tested at low altitude and high altitude.


Product name Battery simulate high altitude low pressure test chamber
inner box Material SUS201 # stainless steel, thickness 3mm
outer box material A3 cold plate paint, thickness 1.5mm
pressure range 0.5 ~ 100Kpa, commonly used test pressure 11.6 Kpa
inner box size W400xH400xD400mm
Outside dimension W550xH1200xD550
Sample shelf stainless steel
vacuum display

pointer (or digital display) vacuum control table, accurate display of vacuum, easy to

set the vacuum

timer LED digital display, in 0-9999H free to set (H / M / S seconds to switch)
pressure fluctuations ≤ 5%
Power AC380V, 50HZ, 2.2KW
Placed environment

laboratory must be controlled by the internal temperature (20 ℃ +5 ℃), in order to

achieve the test box temperature requirements.
