| Test Hole Diameter: | 102mm | Power Supply: | AC 1 Phase 220V 60/50Hz |
|---|---|---|---|
| Burning Gas Demand: | High Purity Liquefied Petroleu | Burner: | Bunsen Burner, Nozzle Diamet |
| Flame Hight: | 10~ 75±2 Mm | Test Cover Width: | 12 Inches (305 Mm) X Depth |
| High Light: | battery and cell test equipment,impact test apparatus |
||

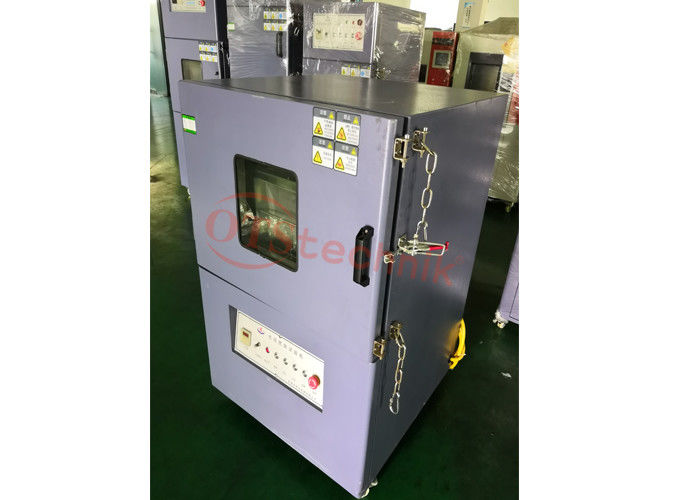

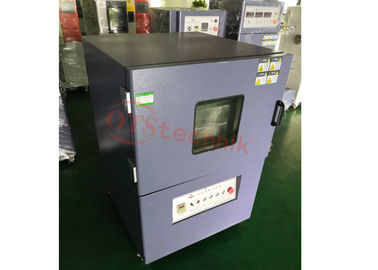

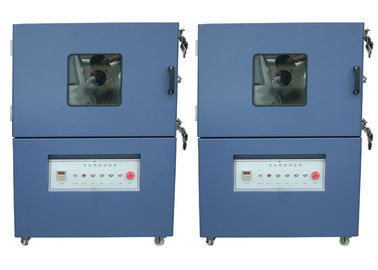

This machine applied for battery burning resistance testing.
This battery burning tester is necessary testing equipments for various battery manufacturer, quality inspection & control department. With features of easy operation, safety reliable, high accuracy it becomes ideal testing machine for battery burning and ejection testing.
Standard Compliance
UL 1642,
UL2054,
GB31241
|
Technical Parameters
|
|||
|
Burner
|
Bunsen burner,pipe inner diameter 0.375inch(9.5mm)length about 100mm
|
||
|
Flame Applicate Time
|
0~999.9s±0.1s
|
||
|
Flame Continuous Time
|
0~999.9s±0.1s
|
||
|
Flame Height
|
10~75±2mm
|
||
|
Testing Bar Diameter
|
1/4 inch(6.35mm)×14 inch(355.6mm)
|
||
|
Test Cover Width
|
24 inch(610mm)×14 inch(355.6mm),Octagonal
|
||
|
Test Cover Height
|
12inch (305mm)
|
||
|
Testing Aluminum Mesh Diameter
|
0.010 inch (0.25mm) 16hole×16hole
|
||
|

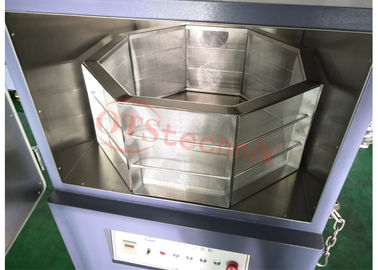

Octagonal stainless steel net cover
|
Distance between each other 2 feet (610mm),Octagonal net cover height1 feet (305mm)
|
||
|
Testing Hole Diameter
|
102mm
|
||
|
Fire Ignition Device
|
Auto fire ignition
|
||
|
Display Method
|
PLC Touch Screen
|
||
|
Control Method
|
Remote control, whole test procedure fully automatic
|
||
|
Burning Gas Requirement
|
High purity liquefied petroleum gas(Customer Prepare)
|
||
|
Bottom
|
Installed with universal wheel
|
||
|
Observation Window
|
390 X 360mm(20mm thickness tempered explosion proof glass)
|
||
|
Timer
|
4 bytes display ,0~9999(Hour,Minute,Second switchable)
|
||
|
Inner chamber Material
|
SUS304 Stainless steel
|
||
|
Outer Chamber Material
|
Cold rolled powder painted
|
||
|
Smoke Extractor
|
Φ 150mm on back side
|
||
|
Overall Dimension
|
W940XD780XH1620 mm
|
||
|
Power Source
|
AC 220V 50HZ
|
||
|
Power
|
2.0KW
|
||
1. Fix the mesh on top of the burner with 38.1mm distance, each 25.4mm mesh with 20 holes, steel wire diameter 0.43mm.
2. Ignition the burner, simultaneously observe the battery burning situation, till battery explode or burn out. And time the whole burning procedure.
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
