Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-1000 | Product Name: | Low Pressure High Altitude Test Chamber Simulation Climate For Battery Pack |
|---|---|---|---|
| Temperature Control: | -70°C ~ +150 °C | Humidity Control: | 20%~98% RH |
| Body Materials: | SUS#304 Stainless Steel Plate | Controller: | OTS Designed Controller With LCD |
| Pressure Range: | 101kpa ~1kpa | Usage: | Universal Testing Machine,environmental Test Chambers |
| Cooling Rate: | 0.7c~1.0c/Min (Average) | ||
| High Light: | climate control chamber,walk in environmental chamber |
||

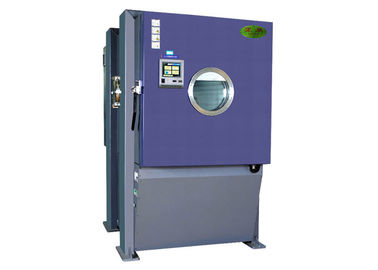

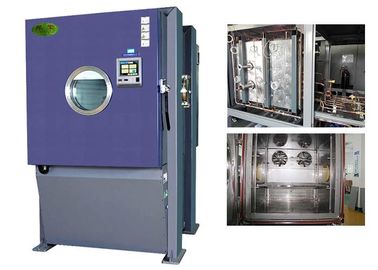

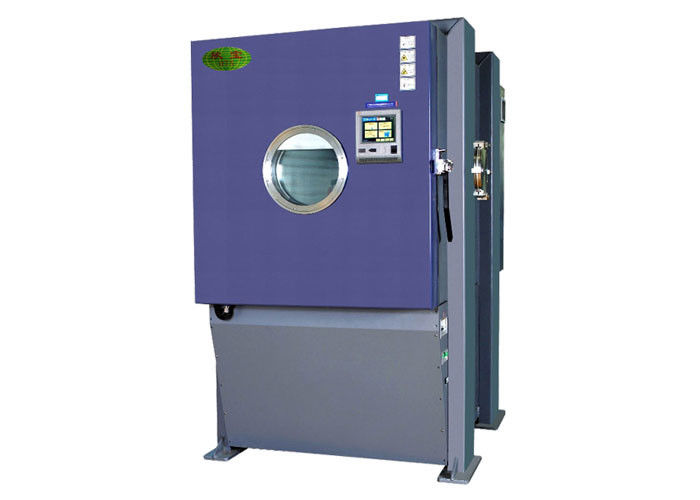

Low Pressure High Altitude Test Chamber Simulation Climate for battery Pack
Introduction:
Low Pressure High Low Temperature Altitude Test Chamber Climate Simulation is used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.
Technical parameters:
| Model | XB-OTS-1000M | |||
| Inner Size (D*W*H)mm | 1000*1000*1000 | |||
| Capacity(KW) | 16 | |||
| Chamber Volume(L) | 1000 | |||
| Specifications | Temp range | -70℃~+150℃ | ||
| Temp fluctuation | ±0.5% | |||
| Temp deviation | ≥100℃, ±3.0℃(at 101kPa, ATM no load) | |||
| <100℃, ±2.0℃(at 101kPa, ATM no load) | ||||
| Cooling rate | 0.7℃~1.0℃/min (Average) | |||
| Pressure range | 101kPa ~1kPa | |||
| Pressure accuracy | ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa) | |||
| Depressurization rate | 101kPa ~1kPa≤30mins (Room temp) | |||
| Pressure recovery rate | 10kPa/Min(adjustable) | |||
Standard configuration
Two sample holders; an observation window; φ25 or φ50 cable hole.
Optional parts
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Structure
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Features
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
| Model | XB-OTS252M | XB-OTS-504M | XB-OTS-2160M | |
| Inner Size (D*W*H)mm | 600*600*700 | 800*700*900 | 1200*1400*1200 | |
| Capacity(KW) | 11 | 15 | 18 | |
| Chamber Volume(L) | 252 | 504 | 2160 | |
