Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic, 220V/50Hz | Usage: | Universal Testing Machine |
|---|---|---|---|
| Product Name: | Battery Impact Tester | Using Circumsta: | 0 ~ 30° C |
| Chamber Gate: | Single Door, Viewing Window, Cold-rolled Door Lock | Internal Material: | SUS#304 Stainless Steel Plate |
| High Light: | battery and cell test equipment,impact test apparatus |
||
Battery Safety testing equipment Battery Crushing Tester for Li-Ion cell & Packs
Introduction:
This equipment mainly used for safety inspection for batteries like vehicles lithium batteries, power battery, battery-cell, electric vehicle battery etc, which integrated with pressure system, explosion-proof system, data acquisition system, computer control system together, adopt independent machine and control system, realized remote control and testing. And have multi safety protection devices, available to comply with various test standard.
Specification:
| Model | XB-OTS-658 |
| Transfer method | Hydraulic drive |

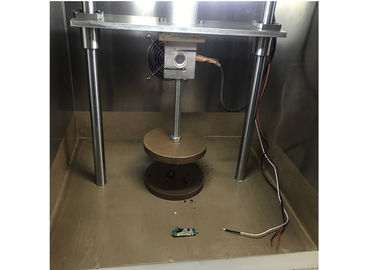

| Battery extrusion head (plate) | Standard round extrusion plate, easy to handle replacement (size 150mm diameter) |
| Extrusion degree | The extrusion is continued until the actual pressure reaches 13kN±0.2kN, and the pressure is held for 1min. Once the maximum pressure is reached, the device automatically relieves pressure and completes the extrusion; |
| Maximum pressure range | 1 kN ~ 20kN (commonly used 13 kN) |
| Pressure display accuracy | 0.1N, sensor resolution: 1/10,000 |
| Unit conversion | kg, N, lb |
| Data sampling frequency | 80 times / sec |
| Compressed space | (W*H*D) 520*500*445mm |
| Machine extrusion stroke | 200mm |
| Delay function | 0-9999 (H/M/S can set and adjust test time arbitrarily) |
| Machine size | (W*H*D) 730×775×1910mm |
| Voltage | AC220V, 50HZ, 15A |
| Power | 2.5KW |
| Machine weight | About 200kg |
Features:
1.The wire enclosed with metal fireproof cover, which is available to prevent the flame during testing process.
2.Lighting system is designed to observe the internal testing process;

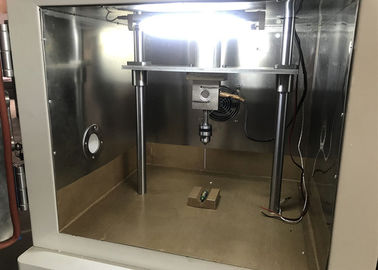

3. Nail Penetration/Crush Force controllable within range from 250N to 13KN ,meet different standard
4.Wire hole provides a possibility to test internal temperature or air pressure while vent hole with air blower can discharge the exhaust air.

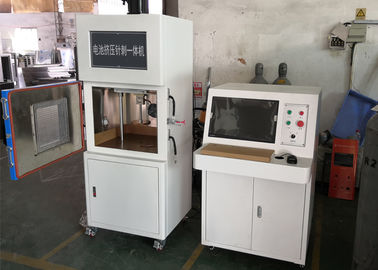

5.Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety.
Applications:
Lithium polymer battery crush/squeeze tester is applied to test safety capability of battery by simulating lithium battery suffered crush in the process of transportation, storage and handling home waste under certain temperature. The specimen of battery is qualified without leakage, explosion, breaking or fire.
Test standard:
UN38.3,UL1642,UL2054,QC/T 743-2006 , QC/T 744-2006,GB 8897.4-2002,IEC60086-4 ,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052, IEC62133-2012, SAE-J2464,GB31241
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
