Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-60 | Product Name: | CASS Corrosion Salt Spray Test Chamber , Automotive Paint Salt Fog Test Chamber |
|---|---|---|---|
| Laboratory Temperature: | NSS.ACSS 35°C ±1°C/ CASS 50°C | Spray Volume: | 1.0~2.0ml/80cm2/h |
| Test Chamber Temp: | 35±1°C For Salt Spray Method (NSS ACSS), 50±1°C For Corrosion-resistant Testing Method(CASS) | Warranty Period: | 14 Months |
| PH: | 6.5~7.2 For Salt Spray Method (NSS ACSS)and 3.0~3.2 For Corrosion-resistant Testing Method(CASS) | Controller: | OTS Designed Controller With LCD |
| Temp: 35±1°C For Salt Spray Method (NSS ACSS), 50±1°C For Corrosion-resistant Testing Method(CASS) S: | 47±1°C For Salt Spray Method (NSS ACSS), 63±1°C For Corrosion-resistant Testing Method(CASS) | ||
| High Light: | walk in environmental chamber,temperature and humidity chamber |
||

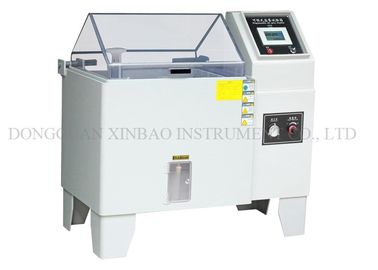

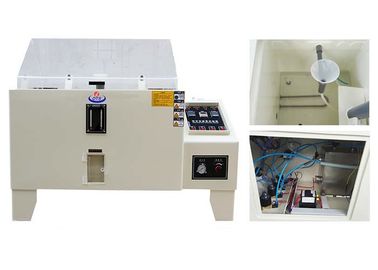

CASS Corrosion Salt Spray Test Chamber , Automotive Paint Salt fog Test chamber
Introduction
Coating Corrosion Testing Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Specification
| Model | XB-OTS-60 | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x120x140 | 270x150x150 |
| Inside temp | Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method. | ||||
| (CASS)50°C±1°C | |||||
| Brine temp | 35°C±1°C 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 480L | 800L | 1000L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
| Test room relative humidity | 85%RH or more | ||||
| PH | 6.5~7.2 or 3.0~3.2 | ||||
| Spray method | Programmable spray (including the continuous spray interrupted spray) | ||||
| Protective system | 1.The over temperature of whole machine. | ||||
| 2.Automatically cut the power off when the water level of test chamber or pressure bucket is below the standard. | |||||
| 3. The entire machine is set with a timer and alert of overflow, electronic leakage, light circuit. | |||||
| Warranty | 12+2month(in view of transportation ,Customs be 2month),maintenance for lifelong | ||||
Design Standard:
Thermostatic control can be set under CNS, JIS, ASTM standard:
Ⅰ Humidity and salt spray test: NSS,ACSS
1) Temperature of test box: 35℃±1℃
2) Temperature of pressure bucket: 47℃±1℃
Ⅱ Corrosion resistance test: CASS
1) Temperature of test box: 50℃±1℃
2) Temperature of pressure bucket: 63℃±1℃
Supply system: the pressure is 1kg/cm²
Spray measurement 1-2mI(mI/80cm²/h)(average in 16 hours)
Spray way: Continuously.
Features:
1. Temperature of machines are controlled by PID which is highly precision and stable, so it ensures the fluctuation of humidity and temperature, as well as test operation.
2. The temperature control is adopted by P.I.D＋S.S.R so that to improve the stability and service life of the screen and accessories. The touch screen is able to display data and settings at the same time.
3. The automotive water tap is with a filter to prevent blockage of pipes and extend the machine’s service life.
4. In the test chamber , there is a automotive overflow protection device instead of manual work, which improves production efficiency.
5. The heat system is equipped with titanium alloy device. It is corrosion- resistance and rustless, and it also has a repair hole for convenience.
6. The oil water separator is from a famous Taiwan brand ---SNS and with 2 cups. So it can improve the accuracy of tests.
7. The pressure bucket, also called saturated air barrel, is made with SUS304 stainless board. It is to compress the air into humidity and oil filter as a core part of this machine.
