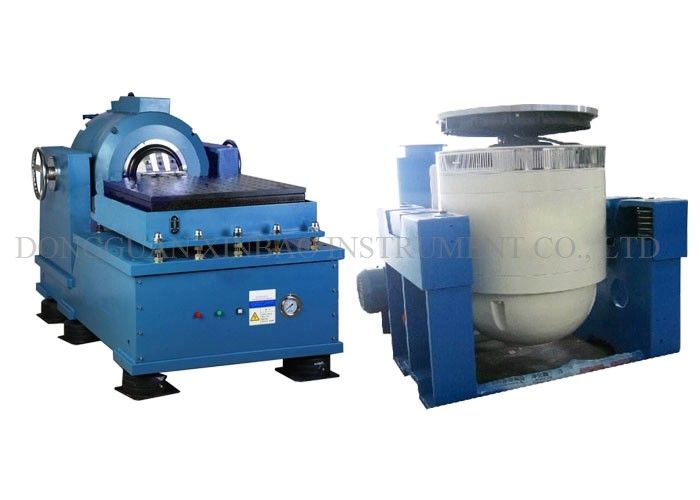

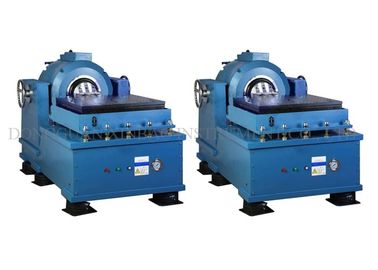

Reliable Mechanical Vibration Test Machine / Vibration Test Equipment
Mechanical vibration test machine application:
Mechanical vibration test machine applies to electronic products, components, module, mechanical and electrical products, instruments and meters and other transportation vibration simulation test. It meets the standards of GB, UL, IEC vibration test and reliability test.
Mechanical vibration test machine features
1, Using centrifugal excitation method, low mechanical noise.
2, Using synchronous reverse movement, excellent table evenness.
3, Stepless amplitude adjustment, meet different product test requirements.
4, Use-friendly operation control interface.
5, Fixed with shock absorption bags without special foundation.
System Performance parameters
| Vibration table | ||
| Sine thrust | 600kgf | |
| Random thrust | 600kgf | |
| Impact thrust | 1200kgf | |
| Frequency Range | 5～2000Hz | |
| Continued displacement | 51mm | |
| The impact of displacement | 51mm | |
| Maximum speed | 2m/s | |
| Maximum acceleration | 981m/s2 | |
| Moving coil diameter | Φ150mm | |
| Allow eccentric moment | ＞190N.m | |
| Load connection point | 6 piont | |
| Equivalent mass of moving parts | 6kg | |
| Countertops screw size (standard) | M8 | |
| Screw layout table (diameter, circumference) | 8 on Φ100mm,8 on Φ,200mm. | |
| Axial isolation frequency | ＜3Hz | |
| Maximum load | 120Kg (customer request 45Kg) | |
| Magnetic flux leakage | ＜1mT | |
| Dimensions (without packaging)(L×W×H) | 1600mm×985mm×850mm | |
| Vibration table Weight | 1850kg | |
| Amplifier output | 8kVA | |
| SNR | ＞65dB | |
| System Protection | The entire power amplifier has: Grid overvoltage, undervoltage power grid phase, logical failure, power module protection, power module temperature, output overcurrent, output overvoltage, power supply, displacement units, units body temperature, external linkage, etc. protection circuit, when any fault occurs, turn off the output, sound and light alarm. In addition to the above protection, it also has a protective function RMS values of tolerance protection, emergency stop devices, such as improving running. | |
| Rated output voltage | 120Vrms | |
| Amplifier efficiency | ＞95% | |
| Fan | ||
| Power | 0.75kW | |
| Airflow | 0.3m3/s | |
| Duct diameter | 120mm | |
| Pressure | 0.048kgf/cm2 | |
| Vertical extension table | ||
| Table size | 600mm×600mm | |
| Equivalent mass | 23kg | |
| Upper frequency | 2000Hz | |
| Countertop Materials | Aluminium | |
| Horizontal slide | ||
| Table size | 600mm×600mm | |
| Thickness | 30mm | |
| Countertops weight | 36kg | |
| Frequency | 2000Hz | |
| Bearing number | 1 | |
| Bearing weight | 0.58kg | |
| Connector Weight | 1.4kg | |
| Maximum Load | 300kg | |
| Countertop Materials | Aluminium | |
Vertical Vibration Reliability Test
Through the vibration controller of the signal source output to the power amplifier, amplified by the signal and then input to the vibration table body, generating excitation source, simulate the actual situation of the specimen to the vertical vibration test; through the acceleration sensor signal acquisition and input to Vibration control device, the output signal and feedback signal stacking calculation, to achieve the excitation source and the target spectrum of high degree of coincidence. The system is given by the signal target spectrum, to complete the vibration test of the specimen, the test specimen vibration durability, integrity and so on.
Test Content
Random vibration test
Random vibration test according to the actual environmental requirements are the following types: broadband random vibration test, narrowband random vibration test, broadband random plus one or several sinusoidal signals, broadband random plus one or several narrowband random. The first two are randomized trials, the latter two are mixed type can also be classified into randomized trials. Stochastic control uses the transfer function equalization method to continuously output Gaussian random signals, and quickly performs real-time accurate closed-loop control. The built-in adaptive control algorithm can react quickly to the nonlinearity of the system. The random control also provides kurtosis control functions specifically designed for reliability enhancement tests. The working principle of the electric shaking table is based on the amperometric law of the current-carrying conductor acting in the magnetic field by the electromagnetic force
