Product Details:
Payment & Shipping Terms:
|
Model Numbe: | XB-OTS-800 | Product Name: | IEC 60068 Temperature Chamber High Low Temperature And Humidity Test Chamber |
---|---|---|---|
Temperature Control: | -20°C ~ +180 °C | Humidity Control: | 20%~98% RH |
Power Supply: | 220V / 380V, 50Hz / 60Hz Customized Acceptable | Temperature Accuracy: | 0.5°C |
Color: | White | Power: | Electronic |
Place Of Origin: | Original France Tecumseh | ||
High Light: | high low temperature chamber,stability test chamber |

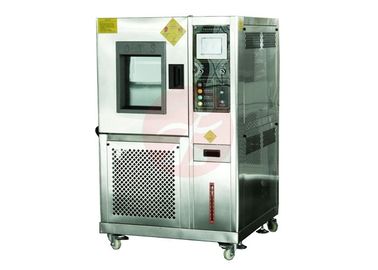

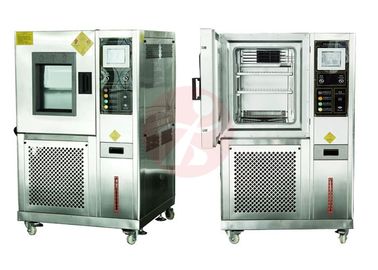

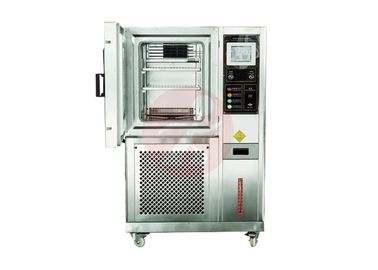

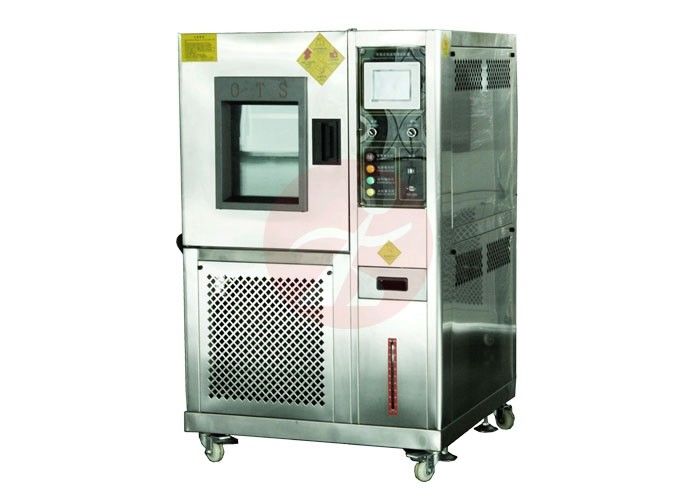

IEC 60068 Temperature Chamber High Low Temperature And Humidity Test Chamber
Usages:
Used in test various types of materials for their tolerances under condition of heat, cold,dry, humidity.
Introduction:
IEC 60068 Temperature Chamber High Low Temperature And Humidity Test Chamber is for testing material heat, cold, dry resistance, humidity resistance.
Manufactured samples, specimens, or components are placed inside the chamber and subjected to one or more of these environmental parameters to determine reliability or measure after-effects such as corrosion. In the case of machinery such as internal combustion engines, byproducts such as emissions are monitored.
Specifications :
ModeNumber | XB-OTS-80 | XB-OTS-150 | XB-OTS-225 | XB-OTS-408 | XB-OTS-800 | XB-OTS-1000 |
Inner size(W*H*D)CM | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 100*100*800 | 100*100*100 |
External size (W*H*D)CM | 90*136*94 | 100*146*104 | 100*161*117 | 110*171*137 | 150*186*137 | 150*186*157 |
Temperature range | -70°C~+150°C(180°C)(A:-20°C B:-40°C C:-60°C D:-70°C ) | |||||
Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H) | |||||
Temp humidity | ±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition. | |||||
analytic accuracy/uniformity | ||||||
Temperature humidity | ±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H. | |||||
control accuracy/fluctuation | ||||||
Heat/cooling time | About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition ) | |||||
Inner and outer materials | SUS#304 Stainless steel for inner chamber and | |||||
Carton Advanced cold plate nano paint for outer. | ||||||
Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
Cooling system | Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C) | |||||
Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, | |||||
super humidity over-temperature protection switch, fuse, failure warning system | ||||||
Parts | Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze | |||||
Controller | TEMI1500 TH-900C South Korea | |||||
Compressor | Original France“Tecumseh”brand | |||||
Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
1. Graceful appearance, circularly shaped body for , surface treated with mist strips and plane handle with no reaction. Our temperature humdity climatic chamber is easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process.The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R23, R404A)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The controller of environmental chamber has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Standard Reference
GB11158 | GB10589-89 |
GB10592-89 | GB/T10586-89 |
GB/T2423.1-2001 | GB/T2423.2-2001 |
GB/T2423.3-93 | GB/T2423.4-93 |
GB/T2423.22-2001 | IEC60068-2-1.1990 |
MIL-STD-810F-507.4 | MIL-STD883C 1004.2 |
JIS C60068-2-3-1987 | IEC68-2-03 |
ASTM D1735 | JESD22-A101-B-2004 |
JESD22-A103-C-2004 | JESD22-A119-2004 |
FAQ:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4. Do you have a branch company or service office in my country?
We have offices in the belowing:
The US Office: XIN BAO INSTRUMENT (US) LLP
Address: 1201 N Park Ave Tucson AZ 85719
Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD
Tel:+(848)66764653 Fax:(+848)37527888
Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.
Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd
Tel: (+65) 96857857
Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349
Italy Dealer :AMSE SRL
Tel:+39-011-2730000
Address: Strada della Cebrosa 86, 10156 Torino Italy
Suzhou Branch: XIN BAO INSTRUMENT SUZHOU BRANCH
Tel:0512-67078249 Fax: 0512-67078749
Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province
Nanjing Branch: XIN BAO INSTRUMENT NANJING BRANCH
Tel: 025-85657886 Fax: 025-85657896
Address: Room 539, Excellence Building, 688 Zhujiang Road, Xuanwu District, Nanjing City, Jiangsu Province
Taizhou Branch: XIN BAO INSTRUMENT TAIZHOU BRANCH
Tel: 0576-88522556 Fax:0576-88522556
Address: No.68, Gaoyuan District, Jiaojiang District, Taizhou City, Zhejiang Province
Taiwan : TAIWAN XIN BAO INSTRUMENT CO.,LTD
Tel:04-24731563 Fax:04-23804092
Address: No. 551-1, 4, Central Road, Taichung City, Taiwan
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
