| Product Name: | Custom-made Automatic Walk In Environmental Test Chamber For Car Testing | Temperature Control Range: | -30°C ~ 120 °C |
|---|---|---|---|
| Humidity Range: | 10%~98%RH | Controller: | Programmable LCD Touch Screen |
| Inner Chamber Material: | SUS304 | Indication Resolution: | 0.01℃, 0.1 %RH |
| Humidity Accuracy: | ≤ ±3.0%RH | Temperature Accuracy: | ≤ 0.5°C |
| High Light: | walk in stability chamber,walk in environmental chamber |
||

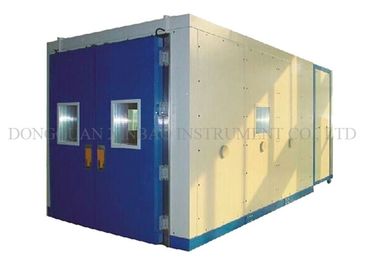

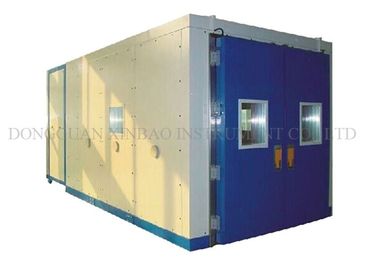

Custom-made Automatic Walk In Environmental Test Chamber for Car Testing
Introduction:
Custom-made Automatic Walk In Environmental Test Chamber for Car Testing serves as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etcOTS manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
The OTS-Series walk-in temperature and climate test chambers are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.
| Model | XB-OTS-2A |
| Volume | 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements |
| Temperature range | -30 °C ~+120 °C |
| Humidity range | 20%~95%R.H. |
| Accuracy/uniformity | ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
| Accuracy/volatility | ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
| Cooling time | 5.0 °C /minute |
| Inside material | SUS#304 Stainless Steel |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Cooling system | Water-cooled / two-stage compressor |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| Accessories | recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| Controller | German Siemens PLC or TH-900C Korea or TEMI |
| Compressor | France's Tecumseh Brand or Germany |
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Product Features:
1. Has the USB download function, with RS232 interface, the curve of the software, do not need recorder
2. With vacuum glass observation window, direct observation of the function more effectively
3. The refrigerant servo control valve flow calculation. Save electricity 30%, dormancy in flow time, energy saving more than 50%
4. Preventing electromagnetic interference by SGS certification controller; At least 32 digital soft path matching with The Times development and software upgrade function
5. Through the ISO - 9001 quality certification ( Dongguan & Suzhou & Taiwan)
6. Defrost cycle (800 cycle defrost time, defrosting guarantee within 2 hours each time, integration test reach 25% of the energy saving province electricity)
Optional accessories:
1. Cable Port: Two size of cable port is available: &50mm, &100mm.
2. Double door
3. Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
4. Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
5. Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.
6. Entire ceiling blow-out duct
7. The extremely wide air inlet reduces the airflow rate (down to apprrox.0.5m/s)
8. Dehumidifier
9. The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21°C,23%RH)for electrostatic reliability tests.
10. Temperature and humidity recorder
11. 100mm width recording paper with 6 dots
12. 180mm width recording paper with 12 dots
13. Status indication lamp
14. Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.
15. Water purifier
16. Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.
17. Power socket
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for Custom-made Automatic Walk In Environmental Test Chamber for Car Testing.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
About OTS:
Dongguan Xinbao Instrument Co., Ltd, with owner brand of OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards:ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, Aviation, etc.
