Force Precision: | ±0.5% | Test Stroke: | 600mm (without Grips) |
---|---|---|---|
Stroke Resolution: | 0.1mm | Max Capacity: | 2,5,10,20,50,100,200,500kgf Can |
Motor: | Servo Motor | Test Speed: | 1~500 Mm/min Selectable |
High Light: | mechanical tensile testing machine,universal tensile tester |
Applicable Industries:
The tensile testing equipment is the double columns pulling and pressure testing machine,which is suitable for testing strength of plastic film, composite materials, soft packaging materials, plastic hose, adhesive, adhesive tape, adhesive sticker, medical patch, protective film, release paper, combination cover, metal foil, nafion, backplane materials, non-woven fabric, rubber, paper fiber and other materials in tension, compression, bending, shearing, tearing and peeling, puncture, three point bending condition and relevant physical parameters.
This machine is Widely used in textile manufacturing, furniture manufacturing industry related materials, all kinds of wire mesh, adhesive sticker pressure sensitive adhesive tape, film materials, medical electronic equipment protective film related industries.
Specification
Universal testing machine laboratory apparatus textile fiber tensile test machine/rubber tensile tester
Model | XB-OTS-600A |
Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg, 1000kg,2000kg,5000kg(It is optional.) can be setting |
Induction method: | Precision load cell (sensor) |
Max. Load Capacity: | 500kg |
Force Resolution/Accuracy: | ± 0.5% |
Accuracy class: | 0.5 |
Resolution: | 1/1,000,000 |
Test width: | 400mm(Standard specifications special specifications can be customized) |
Test stroke: | Max.700 mm( included the fixture) |
Stroke Resolution: | 0.01mm |
Speed range: | 0.01-500mm/min |
Machine Dimension (W*D*H) | 580*580*1250mm (W*D*H) |
Power system: | Servo drive + servo motor + precision ball screw transmission (Panasonic or Taiwan king serve import) |
Weight: | About 65kg |
Power: | 1 phase 220V 50Hz |
Packing | Standard Export plywood case |
Displacement Control: | Displacement encoder count with four frequency technology |
So that the displacement of four times | |
the resolution can up to 0.0005mm |
Force system: servo drives + Servo motor + precision ball screw drive
Control system:Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System : TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher
Obtain data: The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics
Corresponding Standard:
ASTM D903,GB/T16491,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7 ,GB 13022,GB 8808,GB 1040,GB 4850,GB 7753/7754,GB 453,GB/T 17200,GB/T 16578,GB/T 7122,GB/T 17590,ASTM E4,ASTM D828,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 and other standards.

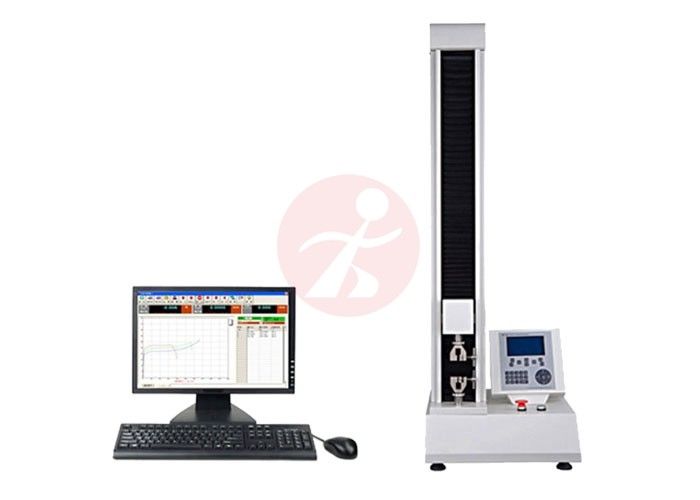

Front View of Universal testing machine laboratory apparatus textile fiber tensile test machine/rubber tensile tester
