| Sine Thrust: | 600kgf | Impact Thrust: | 1200kgf |
|---|---|---|---|
| Frequency Range: | 5～2000Hz | Continued Displacement: | 51mm |
| Maximum Speed: | 2m/s | Maximum Acceleration: | 981m/s2 |
| Moving Coil Diameter: | Φ150mm | Allow Eccentric Moment: | ＞190N.m |
| Load Connection Point: | 6 Piont | ||
| High Light: | vibration testing equipment,shaker test equipment |
||

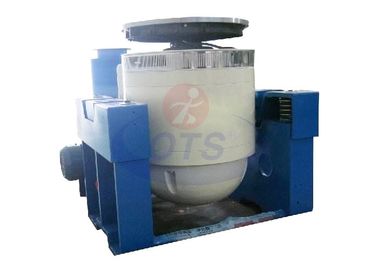

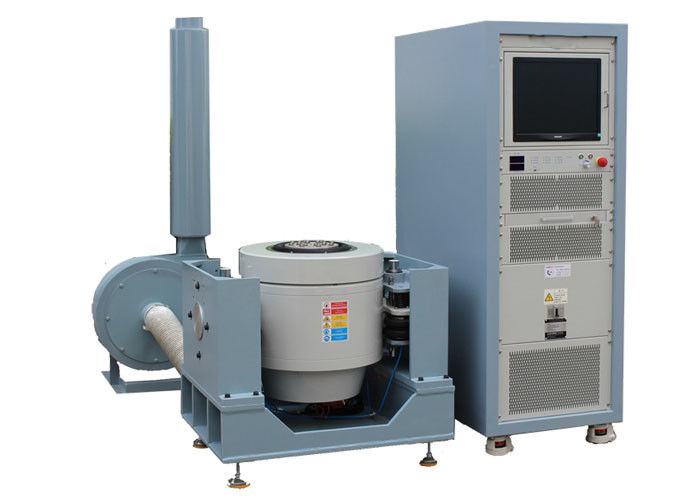

LCD Computer Control and Easy Operation High Frequency Electromagnetic Vibration Test Machine
LCD Computer Control and Easy Operation High Frequency Electromagnetic Vibration Test Machine,simulates a series of controlled vibration(ocean
wave, wind blow, earthquake, rain...), produced by natural or human made. Testing products withstands
transportation and vibration environment in lifelong period, consequently control product quality and design best products. It is widely applied to national defense, aviation, aerospace, communications, electronics, automotive, home appliance, etc.
System Performance parameters
| Vibration table | ||
| Sine thrust | 600kgf | |
| Random thrust | 600kgf | |
| Impact thrust | 1200kgf | |
| Frequency Range | 5～2000Hz | |
| Continued displacement | 51mm | |
| The impact of displacement | 51mm | |
| Maximum speed | 2m/s | |
| Maximum acceleration | 981m/s2 | |
| Moving coil diameter | Φ150mm | |
| Allow eccentric moment | ＞190N.m | |
| Load connection point | 6 piont | |
| Equivalent mass of moving parts | 6kg | |
| Countertops screw size (standard) | M8 | |
| Screw layout table (diameter, circumference) | 8 on Φ100mm,8 on Φ,200mm. | |
| Axial isolation frequency | ＜3Hz | |
| Maximum load | 120Kg (customer request 45Kg) | |
| Magnetic flux leakage | ＜1mT | |
| Dimensions (without packaging)(L×W×H) | 1600mm×985mm×850mm | |
| Vibration table Weight | 1850kg | |
| Amplifier output | 8kVA | |
| SNR | ＞65dB | |
| System Protection | The entire power amplifier has: Grid overvoltage, undervoltage power grid phase, logical failure, power module protection, power module temperature, output overcurrent, output overvoltage, power supply, displacement units, units body temperature, external linkage, etc. protection circuit, when any fault occurs, turn off the output, sound and light alarm. In addition to the above protection, it also has a protective function RMS values of tolerance protection, emergency stop devices, such as improving running. | |
| Rated output voltage | 120Vrms | |
| Amplifier efficiency | ＞95% | |
| Fan | ||
| Power | 0.75kW | |
| Airflow | 0.3m3/s | |
| Duct diameter | 120mm | |
| Pressure | 0.048kgf/cm2 | |

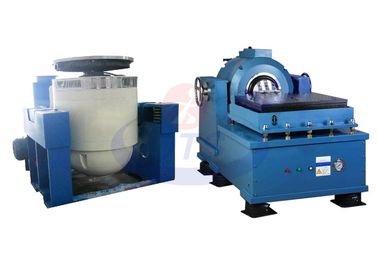

| Vertical extension table | ||
| Table size | 600mm×600mm | |
| Equivalent mass | 23kg | |
| Upper frequency | 2000Hz | |
| Countertop Materials | Aluminium | |
| Horizontal slide | ||
| Table size | 600mm×600mm | |
| Thickness | 30mm | |
| Countertops weight | 36kg | |
| Frequency | 2000Hz | |
| Bearing number | 1 | |
| Bearing weight | 0.58kg | |
| Connector Weight | 1.4kg | |
| Maximum Load | 300kg | |
| Countertop Materials | Aluminium | |
Features :
Cost performance and high reliability
Modular hardware and low- noise design techniques , hardware circuit to achieve closed-loop control system are placed in the control box , independent of the computer , the front control box with USB2.0 interface to communicate with the PC .
Control of high precision , wide dynamic range
Dual DSP parallel processing architecture , 24- bit resolution ADC / DAC, with high-precision floating-point digital filter and low-noise design techniques , the control system has a high dynamic range and control accuracy.
Improve detection and automatic safety protection, safe test
System features : system parameter setting protection , vibration table limit limit protection , control interrupts to protect the spectrum, the spectrum under the control of interruption protection , control and alarm on spectrum protection, control spectrum under police protection , manual emergency interruption, the pre- trial protection, control channel rms protection, self-test maximum output voltage protection , run the maximum output voltage protection , the testing process can be continuous detection , overload check , interruption tolerance band check RMS inspection perfect safety measures to ensure the safety tests operation.
Flexible input
In addition to direct input voltage signal , the system built-in charge amplifier and ICP constant current source can be directly connected to the ICP -and charge- type acceleration sensor.
Win2000/XP based application software , easy to operate . Users can choose in English interface
Controlled by the DSP to achieve closed-loop control system , the PC software independent of the control loop , truly multitasking and graphical Windows interface, user-friendly operation , display rich form .
The user installation preparation requirements
( A ) Installation conditions
1 . three-phase power supply system power supply
Frequency: 50Hz
Line, the line voltage : 380V
Voltage fluctuation range: <10%
2. the user is equipped with a three-phase system is independent of the use of vibration isolation platform power switch
The entire system maximum output power 16kVA
( B ) the use of environmental conditions to check
1, temperature range : 0 ℃ ~ 40 ℃;
2 , range :0- 90% humidity , non-condensing
3 , the installation site floor flat , non-corrosive gases surrounding , less dust , preferably with air conditioning.
( C ) Ground
Vibration test systems must be equipped with laboratories dedicated ground .
Earth ground resistance of less than 4Ω.
( D ) lifting condition check
Users should be ready for the appropriate spreader truck
More reliable
Global safety design, use our chambers safely and with peace of mind for many years to come.
We deliver chambers that conform to international safety standards.
Our chambers conform to ISO risk assessment as well as global safety design electrical safety standards such as CE marking
and EMC directive
