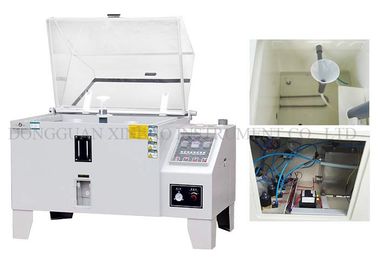

Electronic Cyclic Salt Fog Chamber , Salt Spray Test Chamber Full Automatic Detecting System

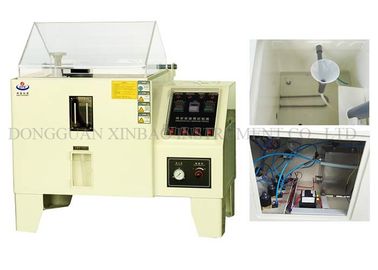

Electronic Cyclic Salt Fog Chamber , Salt Spray Test Chamber Full Automatic Detecting System

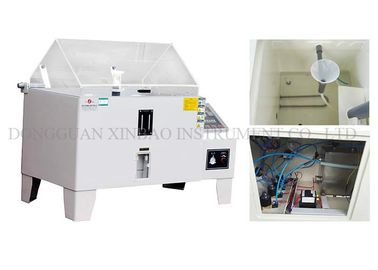

Electronic Cyclic Salt Fog Chamber , Salt Spray Test Chamber Full Automatic Detecting System
video play

Large Image :  Electronic Cyclic Salt Fog Chamber , Salt Spray Test Chamber Full Automatic Detecting System

Product Details:
Place of Origin: China
Brand Name: OTS
Certification: CE Certification
Model Number: XB-OTS-60
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for Corrosion Resistance Salt Spray Test Chamber , Electronic Cyclic salt fog Tester
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Model Numbe: XB-OTS-60 Product Name: Corrosion Resistance Salt Spray Test Chamber , Electronic Cyclic Salt Fog Tester
Laboratory Temperature: NSS.ACSS 35°C ±1°C/ CASS 50°C PH: 6.5~7.2 For Salt Spray Method (NSS ACSS)and 3.0~3.2 For Corrosion-resistant Testing Method(CASS)
Controller: OTS Designed Controller With LCD Temp: 35±1°C For Salt Spray Method (NSS ACSS), 50±1°C For Corrosion-resistant Testing Method(CASS) S: 47±1°C For Salt Spray Method (NSS ACSS), 63±1°C For Corrosion-resistant Testing Method(CASS)
Material: PVC Material Design Standards: IEC68-2-11,JIS,H8502,ASTM B-117-97,ISO9227,CNS3627,3885,4159,7669,8886,JIS D-0201
Usage: Salt Spray Corrosion Test Chamber
High Light:

environmental growth chambers

,

benchtop environmental chamber

Corrosion Resistance Salt Spray Test Chamber , Electronic Cyclic salt fog Tester



Introduction



Corrosion Resistance Salt Spray Test Chamber , Electronic Cyclic salt fog Tester is used for a variety of surface treatment, including metal plating, coatings,organic and inorganic coating, anodizing, anti-rust oil, chemical corrosion resistance, and then to finished products for a long time corrosion resistance.



Specification

Model XB-OTS-60 XB-OTS-90 XB-OTS-120 XB-OTS-160 XB-OTS-200
Inner size (cm) 60x45x40 90x60x50 120x80x50 160x100x50 200x100x50
External size(cm) 107x60x118 141x88x128 190x110x140 230x120x140 270x150x150
Inside temp Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method.
(CASS)50°C±1°C
Brine temp 35°C±1°C 50°C±1°C
Test chamber volume 108L 270L 480L 800L 1000L
Brine chamber volume 15L 25L 40L 40L 40L
Compressed air pressure 1.00±0.01kgf/cm2
Spray volume 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)
Test room relative humidity 85%RH or more
PH 6.5~7.2 or 3.0~3.2
Spray method Programmable spray (including the continuous spray interrupted spray)
Protective system 1.The over temperature of whole machine.
2.Automatically cut the power off when the water level of test chamber or pressure bucket is below the standard.
3. The entire machine is set with a timer and alert of overflow, electronic leakage, light circuit.
Warranty 12+2month(in view of transportation ,Customs be 2month),maintenance for lifelong





Design Standard:

GB-T2423.17-1993 Humidity and salt spray test

GB/T 12967.3-91 CASS test

ASTM.B117-97 Humidity and salt spray test

GB/T 10125-2012 Corrosion tests in artificial atmospheres; Humidity and salt spray test

* GB/T 2423.18-2000 *GB/T 10125-1997 ASTM.B117-97

*JIS H8502 *DIN50021*JIS Z2371 * IEC68-2-11*QJ 2027-1990

*IEC68-2-52 1996 *GB.10587-89 *EN 14147*SH/T 0081-1991

*CNS.4158 * CNS.4159 CASS*GB/T 12967.3-91 CASS

Thermostatic control can be set under CNS, JIS, ASTM standard:

Ⅰ Humidity and salt spray test: NSS,ACSS

1) Temperature of test box: 35℃±1℃

2) Temperature of pressure bucket: 47℃±1℃

Ⅱ Corrosion resistance test: CASS

1) Temperature of test box: 50℃±1℃

2) Temperature of pressure bucket: 63℃±1℃

Supply system: the pressure is 1kg/cm²

Spray measurement 1-2mI(mI/80cm²/h)(average in 16 hours)

Spray way: Continuously.



Features:
A. The whole part of the device is made of P.V.C. Sheet and the inside of the device is reinforced by using a special lining material. Hence, it is sturdily made and will not transform forever.
B. The test chamber is heated from five directions in order to ensure the temperature difference in the chamber may be kept within (± 1℃).
C. Spray nozzle: The nozzle is specially made to enable it to suck up the salt water and then spray it out in the shape of mist with considerable high speed. When it falls on the surface of the item being tested, the difference of fallen mist may be controlled within ± 0.3ml / 80 cm2h.
D. HUNTER PRINCIPLE is used to make the saturated air hot and moist and to keep the humidity in the test chamber required for test.
E. Temperature is the pre-requisite condition that with have direct impact on corrosion rate. We use P.I.D. temperature control unit to limit the temperature difference within the range of ± 0.5℃.
F. A warning device is used to indicate the low level of the test fluid, when the fluid is only enough for being sprayed for five hours, a buzzer will remind the user to replenish the liquid to ensure continuous spray test.
G. Use full automatic detecting system, test stopped automatic, and lighting display when trouble.

Electronic Cyclic Salt Fog Chamber , Salt Spray Test Chamber Full Automatic Detecting System 0
