Product Details:
Payment & Shipping Terms:
|
| Suitable For: | Toys, Electronics, Furniture, Gift | Frequency: | Frequency Of 2-5 Hz Continuous |
|---|---|---|---|
| Tester: | Vibration | Rated Load: | 75kg, 150kg, 230kg (optional) |
| Amplitude: | 25.4MM(1 Inch) | Fence Height: | 33 Cm,38 Cm,42 Cm |
| High Light: | vibration testing equipment,vibration lab equipment |
||

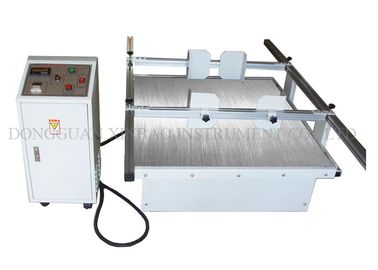

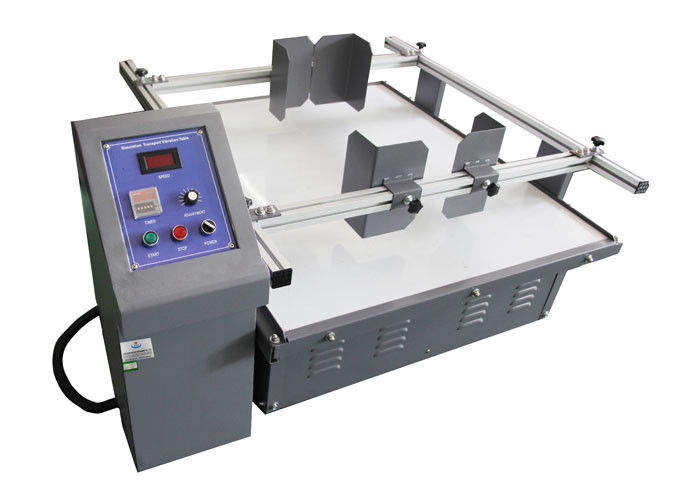

Simulating Transportation Package Vibration Test Machine
Equipment Overview:
Electronic Digital Vibration Testing Machine is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.
To meet the criteria:
This Vibration Testing Machine meets the following standards: GB / T 4857.7-92 "transport package fixed-frequency sinusoidal vibration test method"
Applications Industry:
The Vibration Testing Machine applies to toys, electronics, furniture, gifts, ceramics, packaging and other products packaged to simulate the transport tests, in line with the United States and European transport standards.
Technical Parameters:
| Frequency range | 60~300RPM cycle/min (Adjustable) |
| Vibration mode | Rotary vibration (Vertical and horizontal) |
| Amplitude range | 25.4mm(1 inch) meet ISTA/EN71 |
| Max .Load | 100KG |
| Accuracy Grade | 0.5 |
| Simulation speed | 25 ~ 40km / h |
| Working Table size(L*W)(mm) | 1000*1200 mm |
| Digital speed | Accuracy is not greater than ± 3 rev / min |
| Work time setting range | 0~999H99M |
| Speed display accuracy | 1RPM cycle/min |
| Motor Power | 1HP |
| Max.current | 5A |
| Power | 1 phase 220V 50Hz/60Hz |
| Overall dimensions | 1255*1070*660 mm |
| Machine weight | 125kg |
| Environmental conditions | temperature: 5 ~ 40 ℃, relative humidity ≤ 85% |
| Speed control mode | DC speed control or AC frequency control |
| *** Standard: ASTM-D999(A1&A2) ISTA PROJECT 2A | |
