Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Max Displacement: | 25-50 |
|---|---|---|---|
| Max Speed: | 200 | Moving Coil Diameter: | 150-400 |
| Sweep Frequency Range(HZ): | 2~4000 | Max.load(kg): | 110KG |
| High Light: | shaker test equipment,vibration lab equipment |
||

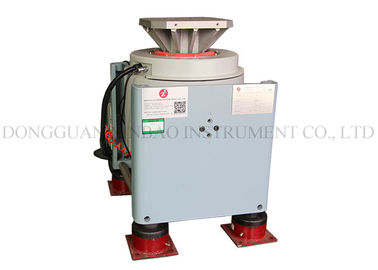

High quality high frequency vibration test machine
Application:
Transportation vibration test machine is used to test the objects/products property in a vibration transportation environment, such as boat, car, truck and train. It is widely applied to electronic, electrical and mechanical, photoelectric, automobile, toys, packaging.
Features:
1.Digital instrument display the vibration frequency synchronization squelch belt drive the test fixture
using rail, easy of operation, safety, the machine base is made of heavy duty channel with damping
pads, easy installation, smooth running, without having to install anchor bolts,DC motor speed,
smooth running, load capability, the rotary vibration (commonly known as the Happy Valley-type), in line
with European standards for the transport.
2.Set way: Chinese and English menu, computer operation, the use of specialized monitoring and
control software, test of the whole process of handling and output.
3.Display functions: dynamic display test curves, multi-Dan, on the number of data.
4. Curve recorder features:
real- time record of the test data, test data automatically, the test results can be stored, printed.
Specifications:
| Model: | XB-OTS-EV |
| Vibration exciter size L.W.H(mm): | 750×560×670 |
| Power Amplifier size L.W.H(mm): | 800×550×1250 |
| Frequency(Hz) | 2~4000 |
| Max.load | 110kg(max) |
| Max displacement | 25-50 |
| Max.Acceleration(G) | 200 |
| Operating ambient temp | 0~+45°C |
| Power |
1phase AC220V/380V 50HZ/60HZ |
