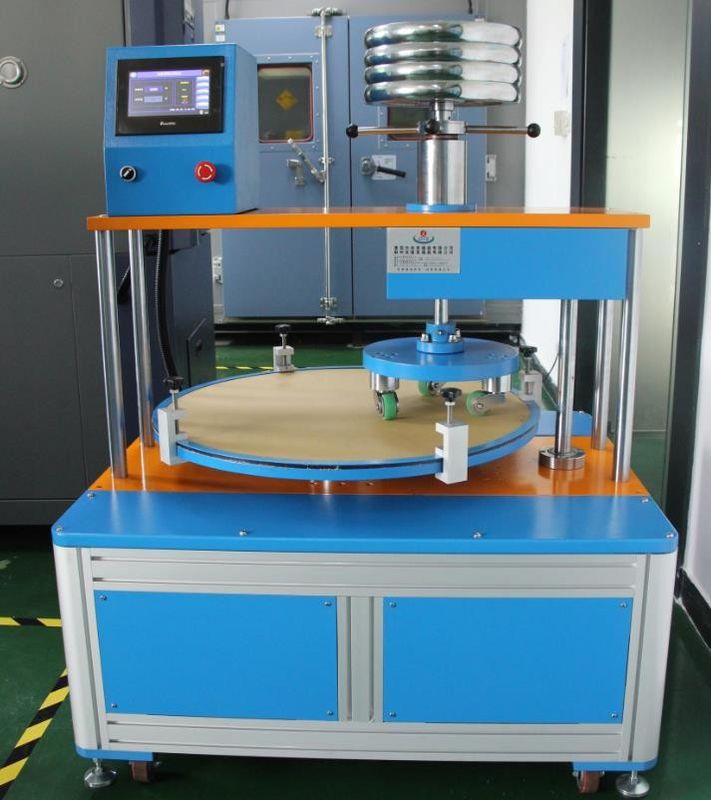

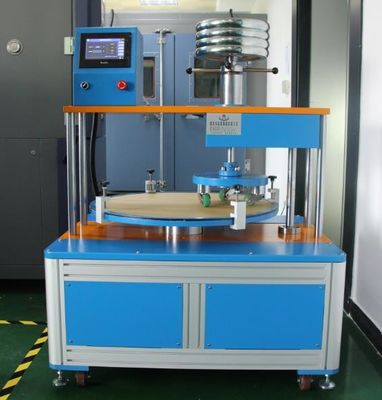

EN 425 Floor Caster Abrasive Wear Testing Machine

EN 425 Floor Caster Abrasive Wear Testing Machine
EN 425 Floor Caster Abrasive Wear Testing Machine
video play

Large Image :  EN 425 Floor Caster Abrasive Wear Testing Machine

Product Details:
Place of Origin: guangdong
Brand Name: OTS
Model Number: XB-OTS-7W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for EN 425 Floor Covering Caster Used Floor Caster Abrasion Durability Test Machine
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Name: ASTM D6962 Roller Seat Testing Machine For Carpet Test Function: Caster-Resistant Flooring Effect Test / Resistant
Warranty: 1 Year Sample Table: 800mm
Size Of Sample: 750mm Test Speed: Rotary Table (20 + 0 / -1) R / Min, Caster Assemble
Standard: BS En-425 En-985 ASTM D6962-17 & ISO 4918 Origin: China
Power: 220V 50HZ
High Light:

Floor Caster Abrasive Wear Testing Machine


EN 425 Abrasive Wear Testing Machine


220V 50HZ Abrasion Testing Machine

EN 425 Floor Covering Caster Used Floor Caster Abrasion Durability Test Machine
Casters floor testing machine CE-MD certificate.pd...


The reference standard:

1. BS EN 425-2002 (R2012): Resilient and Laminate Floor Coverings - Castor Chair Test Resilient floor coverings - Determination of chair casters effects.
2.BS EN 985-2001 Textile floor coverings -. Castor chair test textile floor casters wheelchair test
3.ISO 4918-2009 Resilient, textile and laminate floor coverings - Castor chair test stratified elastic textile floor coverings - foot wheelchair test
4.ISO 10581-2011 Resilient floor coverings - Homogeneous poly (vinyl chloride) floor covering - Specification Elastic Carpet - Homogeneous PVC carpet - Specification
5.ANSI-NALFA-LF-01-2008.3.6 / ANSI-NALFA-LF-01-2011 Castor Chair Resistance-- North American Laminate Flooring Association chair casters anti-abrasion test
6. GB / T 2611-2007: "General requirements for testing machines.".
7. GB / T 5226.1-2008: "Safety of machinery - Electrical machinery electrical equipment Part General technical conditions.
8. EN 425 Floor Covering Caster Used Floor Caster Abrasion Durability Test Machine


Product Description:

Caster-resistant floor friction tester, also known as floor casters abrasion durability testing machine, floor casters friction durability testing machine, also known as castor-resistant floor effect tester, etc., this test is widely used to test the wear resistance of the floor caster by certain Specifications casters in a certain speed, a certain load, friction floor samples under certain circumstances trajectory, automatically shut down after the completion of the cumulative number of trials to observe the change of the sample, the sample assess wear, with a total test cycle counting, cycle times It can be set, holding pressure time can be set and other functions.

EN 425 Floor Caster Abrasive Wear Testing Machine 0

Technical Parameters:

Test function Caster-resistant flooring effect test / Resistant floor caster friction durability test
Sample table ¢800mm
Size of Sample ¢750mm
Load 90kg
Test Speed Rotary table (20 + 0 / -1) r / min, caster assembly (50 ± 1) r / min
Timer (0 ~ 999999) times ( the standard of 25,000 times can be set)
Run Time Control After the rotation of the (180 ± 10) s, and maintain the platform stops (5 ± 2) s
Test Method continuous cycle test
Power Supply 1 phase 220 V 50hz
External size About(L)1460×(D)1000×(H)1750mm
Weight About 180kg


One set of standard load
One set of floor casters
One set of Power line,operation manual





  • Mold custom casters special abrasion test, life is not less than 50 million times, users can save the cost of a very large supplies consumption. (Service life not less than 50 million times based on the results of Armstrong commercial flooring samples tested)
  • The configuration of Strengthening caster is not only make the caster structure stronger but also more durable, more suitable for the testing of sample with greater friction and friction coefficient


  • Caster has automatic load leveling device, it is possible with the specimen thickness changes automatically adjusted three wheels in contact with the flatness of the sample.
  • Compact and elegant design, which is not only being safer to use,but also being more easy to operate and maintain:


  • Having a function of one button to complete, that is one engineer who without any mechanical principle can very quickly grasp practices and use safely


1. When the machine is not in use, please turn off the power supply. It should be operated or
supervised by a special operator to ensure safety.
2. Do not tamper with the components in the box. The electronic parts and circuit boards are
very sensitive to static electricity, dust, etc., and are likely to be damaged due to the charge on your
3. Do not touch the motion of the machine with your hands when the machine is running so as to
avoid danger.
4. Avoid dirt or water on the panel.
