Model Numbe: | XB-OTS-150L | Product Name: | Environmental Reliability Program Temperature Humidity Test Chamber 80 L 150L |
---|---|---|---|
Temperature Control: | -40°C ~ +150 °C | Humidity Control: | 20%~98% RH |
Body Materials: | SUS#304 Stainless Steel Plate | Compressor: | Frans/s"Tecumseh" |
Application: | Electronic,Auto,plastic,Instrument | Temperature Accuracy: | 0.5°C |
Temperature Rate Of Change( ºC/Min): | 3-20ºC/Min | Temp.& Humidity Uniformity: | ≤±1.5℃,≤±2.5% RH |
Heat Up&Cool Down Time: | ≤5℃/min For Heating; ≤ 1.2℃/min For Cooling | Cooling Type: | Air Cold |
Screen Size &Display: | 7" TFT-LCD | Lead Time: | 18 Days |
Highlight: | high low temperature chamber,temperature humidity test chamber |
Environmental reliability program temperature humidity test chamber 80 L 150L
Introduction:
Accelerated life testing chamber, rapid chamge temperature testing systems is widely applied for quality inspection for all types of electric products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries by constant high low temperature change, damp heat etc environment simulation reliability test.
Parameters:
Product name | Temp Humidity Chamber | Model Number | XB-OTS-80/150 | ||
Power | 1∮ AC230V 50Hz | Weight | 360kg/380kg | ||
Interior size | 40(W)*50(H)*40(D)cm 50(W)*60(H)*50(D)cm | Exterior size | 90(W)*142(H)*100(D)cm 100(W)*152(H)*110(D)cm | ||
Customized size | acceptable | Cooling type | Air cold | ||
Temperature range | --20℃ ~150℃ | Humidity range | 20% ~98%RH | ||
Temp.& humidity control fluctuation | ≤±0.5℃, ≤ ±2.5%RH | Indication resolution | 0.01℃, 0.1 %RH | ||
Temp.& humidity Uniformity | ≤±1.5℃,≤±2.5% RH (Put 9 sensor into inner chamber with 9 different location to get uniformity ) | ||||
Heat up&Cool down time | ≤5℃/min for heating ,≤1.2℃/min for cooling | ||||
Chamber materials |
SUS#304 stainless steel for Inner chamber with thickness 1.5mm Steel plate for external chamber with thickness 1.5mm |
||||
Insulation materials |
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm | ||||
Door |
Hinged door, single door open in the central cabinet ( the front of the chamber) Heat distribution on the door (automatic adjustment) anti-frost, anti-condensation insulating glass observation window Door electric equipment (automatic adjustment) anti-frost, anti-condensation device Preparation inside the door lights (LED longevity and efficient light source) |
||||
Accessories |
Communication interface: RS232 Test hole: diameter 50mm 1 pieces (size can be customized) Observation window: Tempered glass (size can be customized) One light: 9 w/AC220V Foot wheel: four castor, four balance goblet Sample shelf: stainless steel rack 2 pieces In the total bearing weight (bottom and rack combined) no more than: 200 kg |
||||

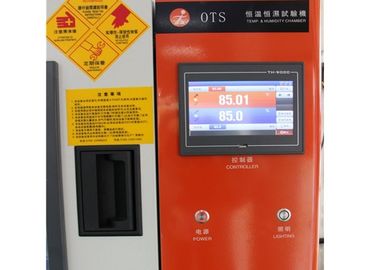

Control panel | Controller+ operation button+over heating protection device +RS232 and USB interface |
Air Circulation& Drain system |
(1) Centrifugal fan & imported motor (2) Reverse uniflow(air flow direction) (3) Flow-throws wind (4) Inner air circulation fan, wind channel and stainless steel cycle fan, through the top window and air diffuser, the wind will out uniformly from the top, which could reach the purpose of control temperature uniformly. (5) Drain system uses swirl type outlet and U-trap deposition unit
|
Safety protection device |
(1)Electricity leak protection. (2)Lightning strike protection, ZRN lightning arrester inside the controller. 2.1 Sensor dates transferred inside the microcomputer. 2.2 Temp. sensors—open circuit or short circuit ( + - OVER ) 2.3 The first level over temp. protection (3)Error detected units 3.1 The second level over temp. Protection—electronic over temp protection unit (Japan). 3.2 The third level over temp. protection. 3.3 Compressor protection—Refrigerants pressure protection & overload protection.(Denmark) 3.4 Extended protection unit— two suppletive ports. (4)Error protection— power cut off, error reports shown in LCD panel and audible alarm starts. (5)Dynamic high and low temperature protection. (6)Ambient temperature protection — The inner chamber and specimens automatically return back to ambient temperature after the operation stop. |
|
(1)Non fuse protection switch (2)Overheat alarm protection/ (3)Compressor over temp ,over current and over load protection (4)Phase sequence protection (5)Motor over-current protection |
||
Package and transport |
Package with Export Standard Wooden Box
|
Other model for options
Model | XB-OTS-225L | XB-OTS-408L | XB-OTS-800L | XB-OTS-1000L |
Chamber Volume(L) | 225L | 408L | 800L | 1000L |
inner chamber size(cm) | 60*75*50 | 80*85*60 | 100*100*80 | 100*100*100 |
External size(cm) | 110*167*110 | 130*177*120 | 150*192*140 | 150*192*160 |
Application :
Standards:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30IEC68-2-03 EIA - 364-31C EIA - 364-59
