| Model Numbe: | XB-OTS-1500P | Product Name: | Laboratory PLC Control IEC60529 Floating Sand Dust Proof Test Chamber |
|---|---|---|---|
| Dust Concentration:: | 2kg/m3~5kg/m3, Should Be Replaced | Dust Type: | Powdered Cement, Dry Talcum Powder |
| Blower: | Centrifugal Fan | Environment Temperature And Humidity:: | 15~45c, 45~75%Rh |
| Sieves Hole Size: | 75um | Wire Netting Wire: | 50um |
| Dimension: | All Size Customized | ||
| High Light: | climate control chamber,walk in environmental chamber |
||

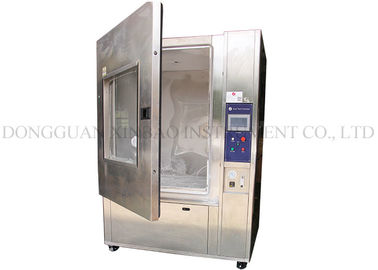

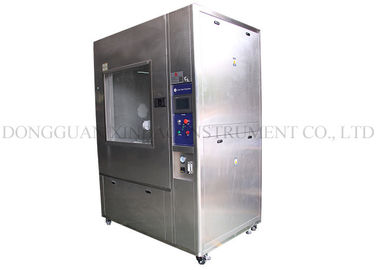

Laboratory PLC control IEC60529 floating sand dust proof test chamber
Introduction
IPX56 sand dust test chamber is applied to all mechanic, electric, electronic, electric chemical and mechanical and electric equipments,
it is used to evaluate whether equipment can resistivity and storage, running or not in air of dry sand or dust.
environment IPX56 led light sand dust test chamberis applied to IEC-529, GB4208-93, GB2423.37-89 and GJB150.12.
Sand dust tester is utilized in auotomotive, electro-technical products, materials, coatings, solary energy, LED etc.
Design Features
. Chamber material: SUS#304 stainless steel;
. Transparent window is convenient to observe specimen during testing;
. Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
. Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
Specifications :
| No | Model | XB-OTS-800P | XB-OTS -1000P | XB-OTS -1500P | |||
| 1 | Internal dimension (D*W*H) mm | 800*800*800 | 1000*1000*1000 | 1000*1500*1000 | |||
| 2 | External dimension (D*W*H) mm | L1250×D1020×H1770 | L1450×D1220×H1970 | L1450*D1720*H1970 | |||
| 3 | Testing Temp | RT+10~70℃(should be declare when order) | |||||
| 4 | Humidity.Range | 45%~75%(can’t display) | |||||
| 5 | Mess diameter | 50um | |||||
| 6 | Wire spacing | 75um | |||||
| 7 | talc powder quantity | 2~4kg/m | |||||
| 8 | type of testing dust | dry talc powder | |||||
| 9 | falling dust | Free fall | |||||
| 10 | Testing time | 0-999 H (adjust) | |||||
| 11 | time of vibration | 0-999H(adjust) | |||||
| 12 | timing accuracy | ±1 s | |||||
| 13 | External material | A3 steel with powder coating | |||||
| 14 | Internal material | SUS304stainless steel plate | |||||
| 15 | gate structure | the door with a big window, and equipped with dust scraper | |||||
| 16 | protective device | 0-999/H(Adjust) | |||||
| vacuum degree | 0—10Kpa(Adjust) | ||||||
| speed of evacuation |
0-2400L/H (Adjust) |
0-4800 L/H(Adjust) | 0-6000 L/H(Adjust)) | ||||
| 17 | Power supply(V) | AC220V | |||||
| 18 | Power(KW) | 1KW | 1.5KW | 2KW | |||
| 19 | Standard | IEC60529:1989+A1:1999,GB4208,GB7000.(IP5X,IP6X) | |||||
Working environment:
1, Temperature: 15~35'C; Relative humidity: 25~75%RH;
2, Without strong vibration and Electromagnetic effect around;
3, Test chamber should be stable placed and keep balance;
4, Installation place should keep good ventilation, and without strong airflow, high dust and corrosive material.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
14 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
Please feel FREE to contact us if you have any needs.
