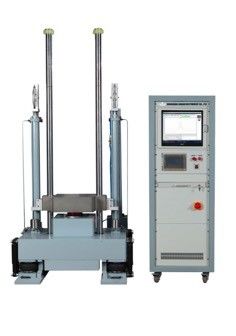

Gas Liquid Pressurization 0.8MPa Mechanical Shock Impact Tester

Gas Liquid Pressurization 0.8MPa Mechanical Shock Impact Tester
Gas Liquid Pressurization 0.8MPa Mechanical Shock Impact Tester

Large Image :  Gas Liquid Pressurization 0.8MPa Mechanical Shock Impact Tester

Product Details:
Place of Origin: Dongguan China
Brand Name: OTS
Certification: CE
Model Number: Mechanical Shock Impact Tester
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for RoHS Energy Dispersive X-Ray Fluorescence Spectrometer XRF Analyzer
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Brand: OTS Key Words: Mechanical Shock Impact Tester
Machine Size: 120*110*245 Weight (kg): 1900
Working Air Pressure: 0.5~0.8MPa Price: Negotiable
High Light:

0.8MPa Shock Impact Tester

,

Mechanical Shock Impact Tester

,

OTS Shock Impact Tester

Mechanical Shock Impact Tester Working Air Pressure 0.5 ~ 0.8MPa​






Features



1. The free fall impact machine with hydraulic lifting and high pressure oil brake is used to realize the shock characteristics test of the vibration isolation system under different impulse width.

2. the use of gas liquid pressurization, strong friction brake to prevent two impact braking function;

3. With the impact measuring instrument and single channel data acquisition, the acceleration data of two channels can be measured, stored, report print, data callback, database management and so on.

4. A wide sine wave pulse with arbitrary action time can be generated.

5. Can do the equivalent drop test of the packing box.

6. Many parallel infrared rays form a protective wall to protect the personal safety of the operator.





The mechanical impact tester is mainly suitable for the impact test of electronic products, aerospace, shipbuilding, military industry, automobile parts, transportation and other fields. By selecting different waveform generators, half sine wave, post peak saw-tooth wave or square wave impact test can be carried out.





Standard



GB/T2423-2008,GJB150,GJB360,GJB548,GJB1217,MIL-STD-202G,IEC-68-2-27,MIL-STD-810G,MIL-STD-883G





Specification





Model XB-OTS-30
Table Size(cm) 40*40
Max Load(kg) 30
Max Acceleration (G) Half sine wave 600
post peak saw tooth wave 100
Trapezoid wave
Pulse Effect Time(ms) Half sine wave 30~0.5
post peak saw tooth wave 18~6
Trapezoid wave
Machine Size (cm) 120*110*245
Weight (kg) 1900
Working Air Pressure 0.5~0.8MPa







Model XB-OTS-30 XB-OTS-50 XB-OTS-100 XB-OTS-200 XB-OTS-300 XB-OTS-600 XB-OTS-1000
Table Size(cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
Max Load(kg) 30 50 100 200 300 600 1000



Max

Acceleration (G)

Half sine wave 600 600 600 500 500 300 300
post peak saw tooth wave 100 100 100 100 100 100 100
Trapezoid wave   150 150 150 100 100 100
Pulse Effect Time(ms) Half sine wave 30~0.5 30~1 30~1 30~2 20~3 20~3 20~3
post peak saw tooth wave 18~6 18~6 18~6 18~6 18~6 16~6 18~6
Trapezoid wave   30~6 30~6 30~6 30~6 30~6 30~6
Machine Size (cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
Weight (kg) 1900 2300 3200 4200 8500 15500 21500
Working Air Pressure 0.5~0.8MPa
