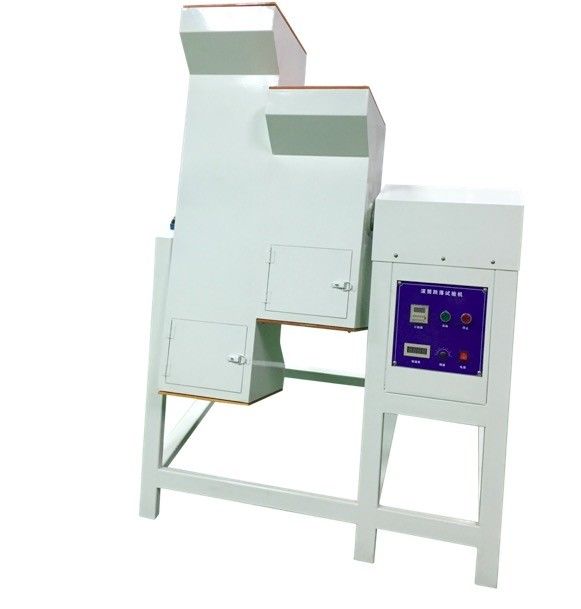

GB/ T2423.8-1995 Lab Test Chamber Tumbling Barrel Drum Drop Tester

Drum Drop Tester Tumbling Barrel Test Machine The Operation Panel Design Is Simple And Easy To Control​



Introduction

This machine is suitable for the roll and drop test of mobile phone and similar products, with the function of 6 digit digital display and counting, and can conduct the test of 2 samples simultaneously in 2 test bins.Mobile phone drum drop testing machine is suitable for mobile phone, PDA, electronic dictionary, CD, MP3, remote control and other small portable electronic products for continuous slewing and falling test.After N times of falling and falling behind, the product's ability to withstand rotary drop can be evaluated by setting the number of times to reach.

Design standard

The test equipment meets the international GB/ t2423.8-1995 or iec60068-2-32, Ed2 test conditions;The roller manufacturing process meets the GB/ t2423.8-1995 appendix standard.

Technical Parameters

1. Number of rollers: 2

2. Allowable specimen weight: 2kg(Max)

3. Drop height: 500 or 1000mm (Customizable)

4. Drum width: 350mm

5. Rotary speed: 5-20 times /min

6. Turns: 1-999999 (adjustable)

7. Machine size: 1100*725*1440mm

8. Weight: 65kg

9. Power supply: AC220V 50HZ 5A or designated

10. Chassis: made of anti-static powder paint

Feature

1. The unique design of this machine can meet the requirement of simultaneous testing of 500 or 1000mm drop height, and at most two mobile phones can be tested simultaneously;

2. The machine is driven by taiwan-made speed-regulating motor and speed governor for rotary speed setting, and driven by synchronous belt pulley/drive, with extremely low noise at start and stop, and smooth operation;

3. The operation panel design is simple and easy to control. The frequency can be directly displayed and the rotation can be controlled by inching to facilitate loading and unloading of specimens.

4, LCD display can be preset counter count, electric memory function, reach the set times automatically stop;
