| Model Numbe: | XB-OTS-150 | Temperature Control: | -40°C ~ +150 °C |
|---|---|---|---|
| Humidity Control: | 20%~98% RH | Controller: | OTS Designed Controller With LCD |
| Application: | Electronic,Auto,plastic,Instrument | Temperature Accuracy: | 0.5°C |
| Color: | White | Place Of Origin: | Original France Tecumseh |
| High Light: | temperature controlled chamber,environmental growth chambers |
||

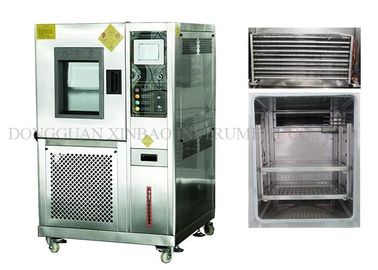

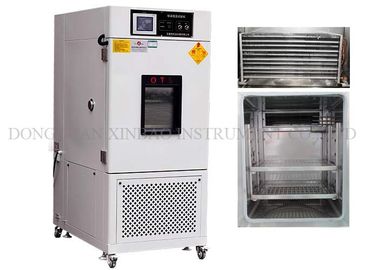

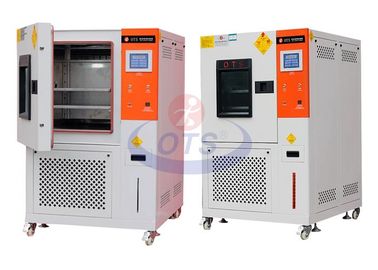

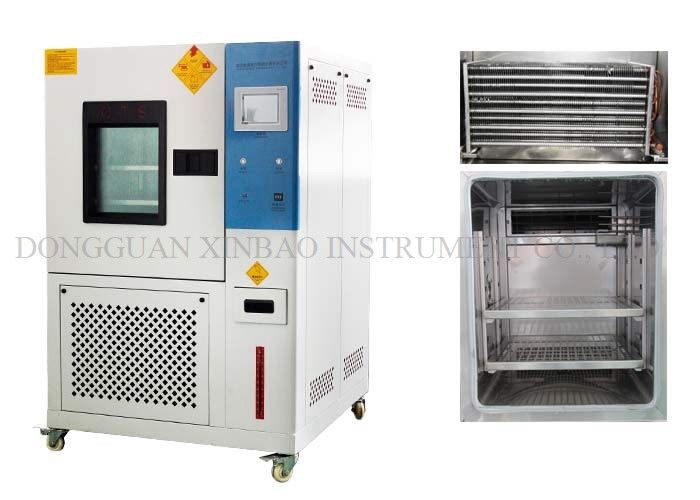

Touch Screen Environmental High And Low Temperature Test Chamber for Electronics
Introduction:
Touch Screen Environmental High And Low Temperature Test Chamber for Electronics is able to provide rapid product temperature change rates and use varying levels of relative humidity to locate design problems prior to shipping your products, improving product quality and reliability.
Stability Temperature Humidity Test Chamber ClimaticTest Chamber Features:
1).The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2).Available in Chinese and English LCD touch screen, easy operation and program.
3).Able to display the relative date and information of the whole operating system in running mode, graphic display. precautions, maintenance and troubleshooting appear on the screen instantly.
4).The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5).The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
6).Water Supply adopts automatic watering System, Circulating water supply together with water filter.
Specifications :
| Model | XB-OTS-80 | XB-OTS-150 | XB-OTS-225 | XB-OTS-408 | XB-OTS-800 | XB-OTS-1000 |
|---|---|---|---|---|---|---|
| Inner Chamber Size W*H*D(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 80*85*60 | 100*100*80 | 100*100*100 |
| External Chamber Size W*H*D(cm) | 90*142*100 | 100*152*113 | 110*167*113 | 130*177*123 | 150*192*144 | 150*192*163 |
| Inner Chamber Volume(L) | 80 | 150 | 225 | 408 | 800 | 1000 |
| Temperature Range | -70°C~+150°C/180°C(A:-20℃ B:-40℃ C:-60°℃ D:-70℃) (Optional) | |||||
| Humidity Range | 10%~98%R.H.(5%~98%R.H) | |||||
Standards Implemented and met
●GB10592-89 Technical requirements for high and low temperature test chamber
●GB2423.1-1989 Low temperature test mode
●GB2423.2-1989 High temperature test mode
●GJB150.3-1986 High temperature test mode
●GJB150.4-1986 Low temperature test mode
●GJB150.9-1986 Warm test method
Do you agree with us?
| Minimum Order Qty: | 1 units |
| Price: | Negotiable |
| Payment Terms: | T/T, negotiable |
| Warranty | 14 months on parts (excluding the damages caused by the natural disasters, abnormal power, improper operation and maintenance, etc) |
| Delivery Time: | 20 working days after received 50% deposit |
| Packaging Details: | Packed in carton firstly, and then reinforced with plywood case for outer packing |
FAQ
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .
