High Efficiency Industrial Drying Oven Temp Control Fluctuation ±1.5℃

High Efficiency Industrial Drying Oven Temp Control Fluctuation ±1.5℃
High Efficiency Industrial Drying Oven Temp Control Fluctuation ±1.5℃ High Efficiency Industrial Drying Oven Temp Control Fluctuation ±1.5℃

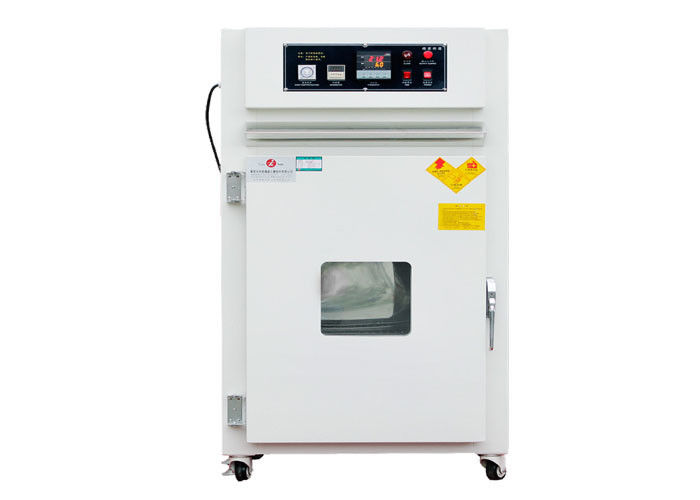

Large Image :  High Efficiency Industrial Drying Oven Temp Control Fluctuation ±1.5℃

Product Details:
Place of Origin: Dongguan,China
Brand Name: OTS
Certification: CE/ISO
Model Number: XB-OTS-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export plywood case suitable for different and long distance transportation
Delivery Time: 20 working days after payment
Payment Terms: T/T, Western Union
Supply Ability: 300 sets/month
Detailed Product Description
Temperature Range: RT+10℃~250℃ Inner Oven Size: 65*65*65cm(W*H*D)
Controller: Touch Screen Controller Test Hole: 2 Pcs Test Holes
Power: 1 Phase 220V 50Hz Temp Control Fluctuation: ± 1.5℃
High Light:

hot air circulation drying oven


laboratory drying oven

High Efficiency Double Door Industrial Cyclic Heating Hot Air Drying Oven



Application :


Industrial oven use: widely used in drying industry, such as transformer, inductance baking, PCB, hardware and plastic parts, the baking of silk and other industries, such as shoes, drying and activation.Cheap and adaptable.




  Product name High Temperature oven Model Number XB-OTS-275L
  Power 1 phase 220V 50Hz Cable Port External Power
  Interior size(W*H*L) 65*65*65cm(W*H*D)

Exterior size


  Customized size Acceptable Control method PID ,PID automatically adjust the output



1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted.


2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.


3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.


4.Timing device for LED Digital constant timing, providing complete use Conditional design.


5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.


6.Machine continuous running time is above three month


7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down.

  Temp control fluctuation ± 1.5℃ Temperature range




  Accuracy ±0.5℃ Temperature resolution 0.1
  Temperature uniformity ±2℃ Power





Key set of

data input

Resolution 0.1 ℃

ntegration time(IT):


Derivative time(DT):


Built-in timer function


Protection device

Motor overload protection
Fault indicator
No fuse protection switch



Heating up time


RT~160℃ about 28min


  Temp controller The microcomputer automatically calculus controller
  Chamber materials

1.Inner chamber materials:SUS stainless steel plate

2.External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating.

3.Insulation material: aluminum silicate glass wool

4.The clapboard Material: Stainless Steel

5.Stainless steel electric heater Material: fin heat pipe type

6.Time control: 0 ~ 999H/M/S adjustable.

7.The rmometry body: T thermocouple

  Air supply method

Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door.


  Use of the environment

Allowable temperature range of 0 ~ 35 ℃



Features: micro-computer intelligent PID control,with timer,over-temperature alarm.

2.zinc-plating chamber/S.S chamber,anti-acid,anti-corrosion.

3.large diameter centrifugal wind wheel,uniform heat circulation.

4.the shell is made of high quality cold-rolled steel with metallic paint spray.


High Efficiency Industrial Drying Oven Temp Control Fluctuation ±1.5℃ 0
