Resolution: | 24-bit Digital-to-analog Converter (DAC / ADC) | Enter The Range: | ± 10 VPEAK |
---|---|---|---|
Controlling Software: | Sine Control, Random Control, Typical Impact Control, Resonant Search And Presence | Enter The Number Of Channels: | 2 Voltage Channels, 2 Charge Channels |
Amplifier Output: | 8kVA | Vibration Table Weight: | 1850kg |
High Light: | vibration testing equipment,shaker test equipment |

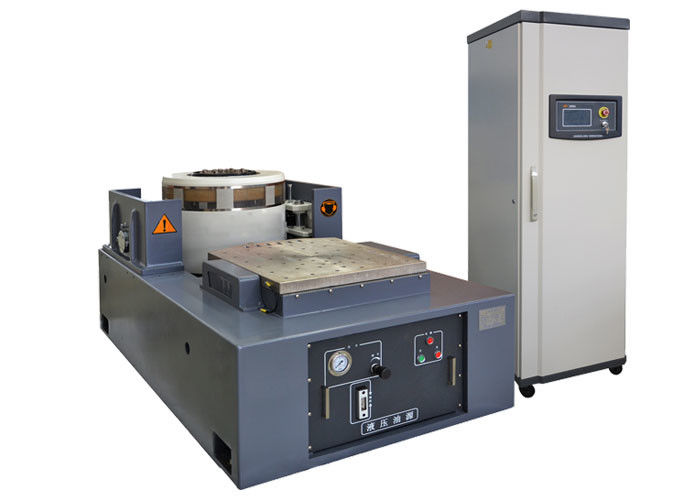

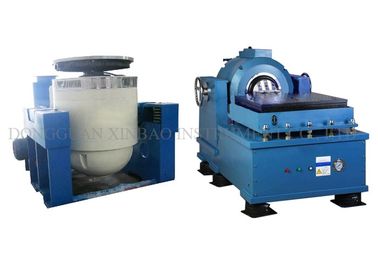

High Frequency Electrodynamic Vibration Shaker System Machine 8kVA Amplifier Output
System Performance parameters
Vibration table | ||
Sine thrust | 600kgf | |
Random thrust | 600kgf | |
Impact thrust | 1200kgf | |
Frequency Range | 5~2000Hz | |
Continued displacement | 51mm | |
The impact of displacement | 51mm | |
Maximum speed | 2m/s | |
Maximum acceleration | 981m/s2 | |
Moving coil diameter | Φ150mm | |
Allow eccentric moment | >190N.m | |
Load connection point | 6 piont | |
Equivalent mass of moving parts | 6kg | |
Countertops screw size (standard) | M8 | |
Screw layout table (diameter, circumference) | 8 on Φ100mm,8 on Φ,200mm. | |
Axial isolation frequency | <3Hz | |
Maximum load | 120Kg (customer request 45Kg) | |
Magnetic flux leakage | <1mT | |
Dimensions (without packaging)(L×W×H) | 1600mm×985mm×850mm | |
Vibration table Weight | 1850kg | |
Amplifier output | 8kVA | |
SNR | >65dB | |
System Protection | The entire power amplifier has: Grid overvoltage, undervoltage power grid phase, logical failure, power module protection, power module temperature, output overcurrent, output overvoltage, power supply, displacement units, units body temperature, external linkage, etc. protection circuit, when any fault occurs, turn off the output, sound and light alarm. In addition to the above protection, it also has a protective function RMS values of tolerance protection, emergency stop devices, such as improving running. | |
Rated output voltage | 120Vrms | |
Amplifier efficiency | >95% | |
Fan | ||
Power | 0.75kW | |
Airflow | 0.3m3/s | |
Duct diameter | 120mm | |
Pressure | 0.048kgf/cm2 | |
Vertical extension table | ||
Table size | 600mm×600mm | |
Equivalent mass | 23kg | |
Upper frequency | 2000Hz | |
Countertop Materials | Aluminium | |
Horizontal slide | ||
Table size | 600mm×600mm | |
Thickness | 30mm | |
Countertops weight | 36kg | |
Frequency | 2000Hz | |
Bearing number | 1 | |
Bearing weight | 0.58kg | |
Connector Weight | 1.4kg | |
Maximum Load | 300kg | |
Countertop Materials | Aluminium |
Vibration controller | |
Enter the number of channels | 2 voltage channels, 2 charge channels |
Number of output channels | 1 Drive output, 1 COLA output |
Resolution | 24-bit digital-to-analog converter (DAC / ADC) |
Anti - aliasing filter | Analog anti-aliasing filter plus digital filter, stopband attenuation greater than 160dB / Oct |
Coupling method | AC differential, AC single-ended, DC differential, DC single-ended, IEPE, TEDS (optional), charge |
Enter the range | ± 10 VPEAK |
controlling software | Sine control, random control, typical impact control, resonant search and presence |
Features - vibration system test machine
1.Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
2. U-type spring ,rollers and linear bearing for strong resistance of deflecting load
3. Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
4. Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
5.Able to complete sine ,random , impact environmental tests
6. This system requires voltage fluctuation, ≤±10%
7. This system requires Grounding resistance, ≤4Ω
8. High reliability, especially suitable for long-time operation
OTS Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation;
2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
FAQ:
1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. Do you have a branch company or service office in my country?
Yes,we have branchs over the world.
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
