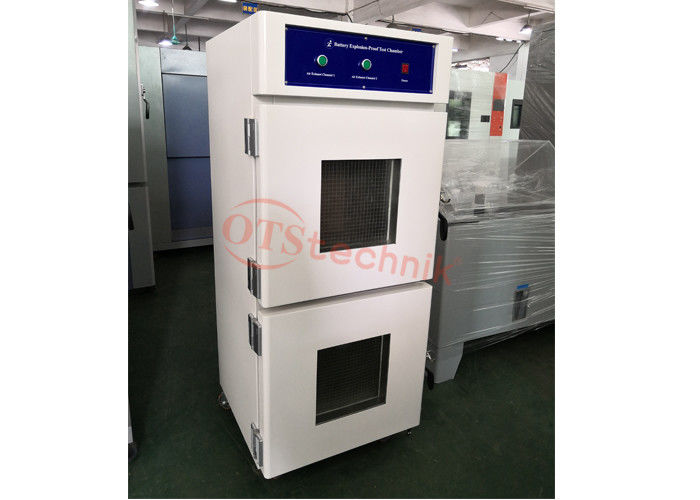

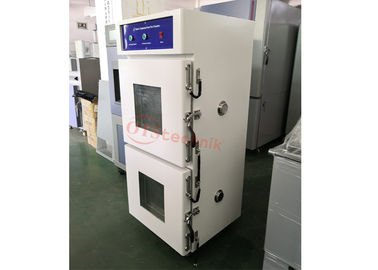

High Low Temperature Battery Explosion - Proof Testing Machine With PLC Touch Screen

High Low Temperature Battery Explosion - Proof Testing Machine With PLC Touch Screen
High Low Temperature Battery Explosion - Proof Testing Machine With PLC Touch Screen
video play

Large Image :  High Low Temperature Battery Explosion - Proof Testing Machine With PLC Touch Screen

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE ISO
Model Number: XB-OTS-7078
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units (Min. Order)
Price: Negotiable
Packaging Details: Strong wooden case for Battery Testing Equipment Battery burning Test Machine
Delivery Time: 20 days after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Usage: Battery Testing Equipment Display Method: PLC Touch Screen
Internal Size: 500*500*500mm L*W*H (Customized) Internal Material: A3 Steel Bord With Bake Paint Coating Thinkness: 1.2mm
External Material: SUS #201 Stainless Board Thinkness: 1.0mm Use Power: 220V, 50 / 60Hz
Observation Window: 250*250mm Test Hole: D.50mm; For Power-on Test
Warranty: 12 Months
High Light:

battery testing equipment


battery and cell test equipment

Battery explosion-proof testing machine

High low temperature battery explosion-proof testing machine




Battery explosive-proof test chamber is mainly used for protection on technicians and machines in battery over-discharge test. The chamber can be customized for different needs of test.





GB 31241-2014; GB/T 18287 -2013; GB/T 8897.6-2008; YD/T 2366.1-2011; GB/T 21966-2008, MT/T 1051-2007




Internal Size(single chamber) 500*500*500mm L*W*H (Customized)
Internal Material

A3 Steel bord with bake paint coating

Thinkness: 1.2mm

External Material

SUS #201 Stainless board

Thinkness: 1.0mm

Material Single, double, inner door is made of stainless steel, and silica gel is used to tighten the door and chamber.
Door Equipped with observation window; There is a strong connecting hinge, explosion proof handle between the door and chamber
Observation window 250*250mm
Test hole D.50mm; for power-on test.
Teflon tape is added inside the chamber, which is for a effective insulation, flame retardant and easy to clean up.
The separate test panel controls the lighting and exhaust of each test room. When samples burning, the fan automatically works and exhausts smoke.



Battery explosion-proof box is mainly used for battery over-charge and over-discharge test. The battery is put in the explosion-proof box, connected to external charge and discharge tester. The operator and equipment are under protection.



GB 31241-2014 Safety requirements for lithium ion batteries and battery pack for portable electronic product

GB/T 18287 -2013 General specification for lithium ion batteries for cellular telephones External short circuit requirements

GB/T 8897.6-2008 The sixth part of the primary cell: safety requirements of lithium batteries

YD/T 2366.1-2011 The first part of lithium iron phosphate batteries for communication: integrated batteries

GB/T 21966-2008 Safety requirements for lithium primary batteries and storage battery in transit

MT/T 1051-2007 Lithium ion battery for miner's lamp

YD 1268-2003 Safety requirements and test methods for lithium batteries and chargers of mobile communication handsets

GB/T 19521.11-2005 Safety specification for hazardous features inspection of dangerous cargo of lithium batteries

YDB 032-2009 Backup lithium ion battery for communication

UL 1662:2012 Standard for lithium battery

UL 2056: 2012 Household and commercial batteries

UN38.3(2012) The third part of Recommendations on the transport of dangerous goods - Test and standard manual

IEC62133-2012 Safety requirements for storage batteries with alkaline or non acid electrolytes


Specification and Parameter:

1. Size of each test case :500*500*500mm(L*W*H);(or customized)

2.Material quality: outer container:3mm A3 steel plate with stoving varnish , inner container: SUS#201 stainless steel

3.Single door, double layer door, the inner door is made of stainless steel material.The front observation window is notavailable.

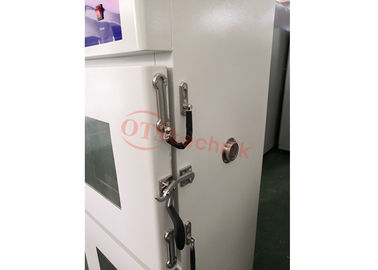

4.The door is connected with the box body by a strong hinge,explosion proof door lock

5. The side convection window: open a 250 x 250mm hatch at each side of each box (also can only open the front and back side), in order to abstract heat and convection. With stainless steel mesh, it can prevent explosion and splash effectively.

6.Put a electric board or affix the Teflon tape inside the test box,effective for inflaming retarding and insulation , easy to clean.

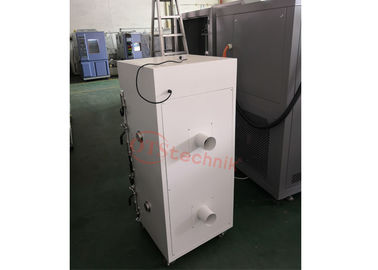

7.Open two circular mounting ports at the rear part of each box, which is convenient for the testing and connecting wires to pass through.

8.There is a separate test panel to control the lighting and exhaust of each test room.Smoke detection alarm is available, when there is a fire, the exhaust fan would be turned on automatically;


Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license

Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
