| Power: | 1 Phase 220V 50Hz | Volume: | 150L |
|---|---|---|---|
| Control Method: | PID ,PID Automatically Adjust The Output | Temperature Range: | RT+10℃～300℃ |
| Accuracy: | ±0.5℃ | Temperature Uniformity: | ±2℃ |
| Highlight: | dryer oven machine,hot air circulation drying oven |
||

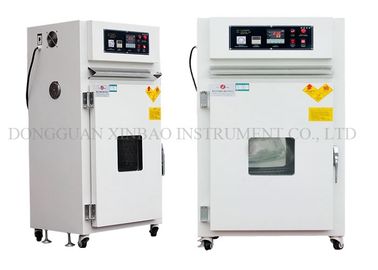

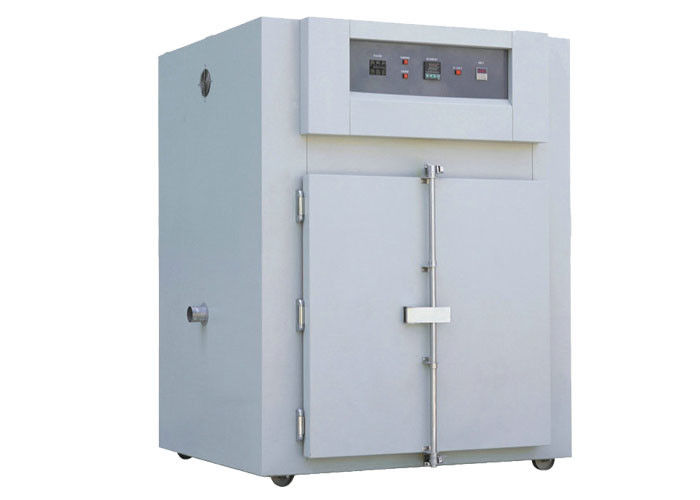

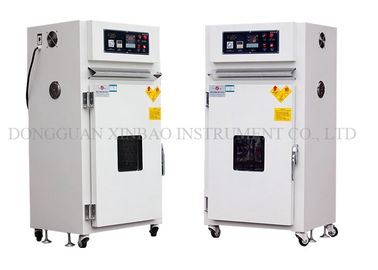

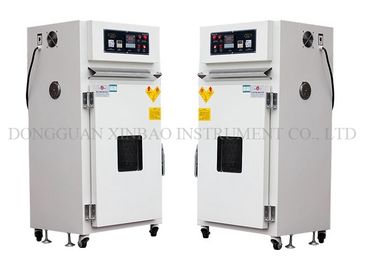

High Precision Industrial Drying Oven Four Tiered Safety System 150L Volume
Ovens with high temperatures of 200, 300, 500 or 700°C
It is applicable to a variety of products, materials, components, electronics, automobiles, aviations, plastics, chemicals, foods, chemicals, etc.
OTS offers two types of standard models: the space-saving vertical ovens and the horizontal ovens. Both provide horizontal airflow for even exposure to all samples. Control constancy as low as ±0.1°C and uniformity as low as ±0.5°C ensures accurate operation. An exhaust damper is included to ventilate the oven and allow quick cool-down.
The standard controller offers two-step programming for simple heat-up or shut-down steps. An inexpensive upgrade allows creation of up to ten programs for full cycling applications. The large display is easy to use and read. Four levels of overheat protection are included for safety. A wide variety of options are also available.
Specification:
| Product name | High Temperature oven | Model Number | XB-OTS-150L | ||
| Power | 1 phase 220V 50Hz | Cable Port | External Power | ||
| Interior size(W*H*L) | 50*60*50cm(W*H*D) |
Exterior size (W*H*L) |
69*110*64cm(W*H*D) | ||
| Customized size | Acceptable | Control method | PID ,PID automatically adjust the output | ||
|
Advantages:
|
1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted. |
||||
| Temp control fluctuation | ± 1.5℃ | Temperature range |
|
||
| Accuracy | ±0.5℃ | Temperature resolution | 0.1 | ||
| Temperature uniformity | ±2℃ | Power |
4.8KW
|
||
|
Key set of data input |
Resolution 0.1 ℃ ntegration time(IT): 0～3600s Derivative time(DT): 0～900s Built-in timer function |
Protection device |
Motor overload protection
|
||
|
Heating up time (NO-load) |
RT～160℃ about 28min |
||||
| Temp controller | The microcomputer automatically calculus controller | ||||
| Chamber materials |
1．Inner chamber materials:SUS stainless steel plate |
||||
| Air supply method |
Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door. |
||||
| Use of the environment |
Allowable temperature range of 0 ~ 35 ℃
|
||||
