Product Details:
Payment & Shipping Terms:
|
| Drop Height: | 300~1500mm(Controllable, Steel Ruler ,min.indication Value :1mm) | Testing Method: | Face, Edge, Corner Dropping |
|---|---|---|---|
| Max Test Loading: | 2kg±100g | Drop Floor Dimension: | 500 X 600 X 200mm(solid Plate) |
| Drop Method: | Pneumatic Dropping | Air Source: | <1mpa |
| Control Box: | 210*180*140mm | Power Supply: | AC 1 Phase 220V 60/50Hz |
| Drop Floor Mate: | A3steel Plate (Acrylic Plate,marble Plate, Wooden Plate Optional | ||
| High Light: | battery and cell test equipment,impact test apparatus |
||

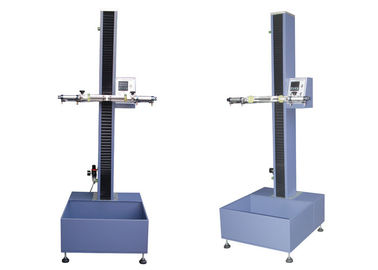

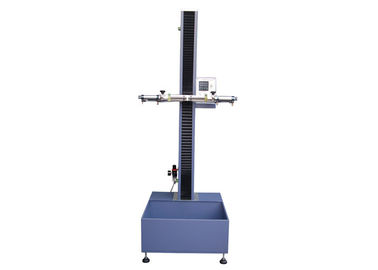

High Stability Battery free Drop Test Equipment for any type battery
Introduction:
This machine available for package face, corner, edge free drop testing.
With height digital display instrument and tracing height with encoder, so can measure the precision drop height. Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping . The drop height controllable, and with height steel ruler which makes drop height available. Various kinds drop floor optional. Meets different testing standards.
Specification:
| Model | XB-OTS-657 |
|---|---|
| Drop Height | 300~1500mm(Controllable, steel ruler ,min.indication value :1mm) |
| Testing Method | Face, edge, corner dropping |
| Max Test Loading | 2kg±100g |
| Drop floor material | A3steel plate (Acrylic plate,marble plate, wooden plate optional ) |
| Drop floor dimension | 500 x 600 x 200mm(solid plate) |
| Machine dimension | W700 X D900 X H1650mm |
| Drop method | Pneumatic dropping |
| Height display | Altimeter height control,LED number,Accurate to 1 mm |
| Air Source | <1mpa |
| Control box | 210×180×140mm |
| Power supply | AC220V |
| Machine weight | 80KG |
Features:
1. Drop tester for the face of the package, Angle and edge for free drop test, equipped with digital display and the highly display decoder to track height, drop height, which can accurately give products with preset drop height error less than 2%, or 10 mm.
2. The machine adopts single arm double column structure with electric reset, electric control drop and electric lifting device, easy to use;
3. The unique hydraulic buffer device greatly increases the service life of the machine, the stability and security.
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Our Company
OTS Instrument Co., Ltd.
was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing
requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing
process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI,
AATCC, IEC, VDE...
