Test Standard: | SJ/T11169-1998(eqv UL 1642:199 | Test Cover Width: | 12 Inches (305 Mm) X Depth 14 In |
---|---|---|---|
Flame Hight: | 10~ 75±2 Mm | Burner: | Bunsen Burner, Nozzle Diameter O |
Burning Gas Demand: | High Purity Liquefied Petroleum G | Power Supply: | AC 1 Phase 220V 60/50Hz |
Test Hole Diameter: | 102mm | Flame Application Time: | 0 ~ 999.9 Seconds ± 0.1 Seconds |
Brand: | OTS | Inner Size: | 10.740*730*500mm (W*D*H) |
Highlight: | battery testing equipment,battery and cell test equipment |

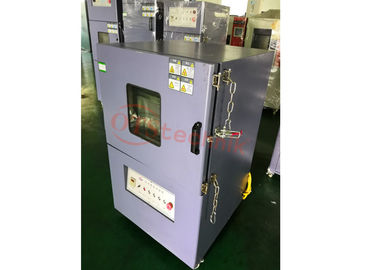

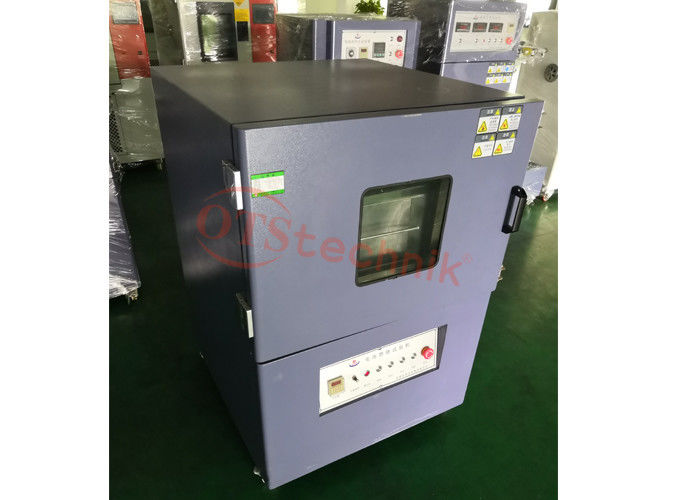

High Temperature Battery flammability Fire Burning Test Machine
Introduction

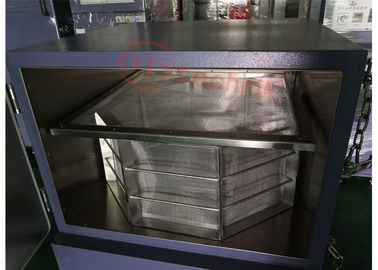

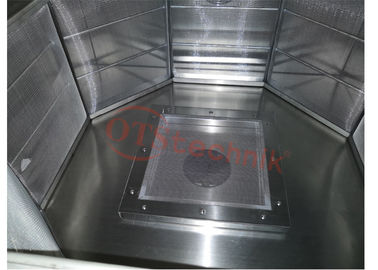

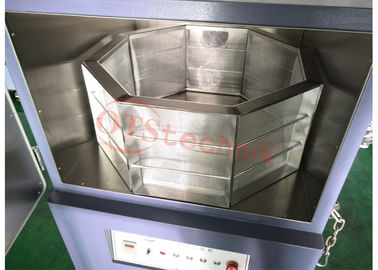

Battery Burning Test Machine is suitable for lithium battery (or battery pack) flammability test. Drill a round hole with a diameter of 102 mm on an experimental platform and place a wire mesh on the round hole to place the measured battery on the wire mesh. Install an octagonal aluminum mesh around the pattern (then ignite the burner, heat the sample until the battery explodes or the battery burns, and the combustion process is timed.
Technical Parameter
Model | XB-OTS-659 |
---|---|
Burner | Bunsen burner, nozzle diameter of 9.5mm long about 100 mm |
Burning gas demand | High purity liquefied petroleum gas (configured by yourself) |
Flame application time | 0 ~ 999.9 seconds ± 0.1 seconds |
Flame hight | 10~ 75±2 mm |
Test hole diameter | 102mm |
Test cover width | 12 inches (305 mm) X depth 14 inches (355 mm), octagon |
Test cover height | 24 inches (610 mm) |
Ignition devices | Automatic ignition (remote control type control 8 meters of less than effective) |
Purpose: This machine is suitable for battery flame resistance test, made according to test standards such as UL2054
Specifications:
1. Burner: Bunsen burner with inner diameter of 9.5mm and length of approx. 100mm
2. Flame application time: 0~999.9 seconds±0.1 seconds
3. Test round hole surface diameter: 102mm
4. Automatic ignition, automatic control of the test process.
5. Test hood width: 24′′ (610mm), octagon
6. Test hood height: 12′′ (305mm)
7. Including burner and support frame, test table, standard metal mesh cover, standard metal mesh
8. Power supply: 1φ220V, 50/60HZ, 10A
9. Inner chamber:740*730*500mm (W*D*H)
Burning gases: methane or Liquefied petroleum gas(prepareed by customer)
Features:
1. The battery combustion tester is used for testing fire resistance of battery.
2. The result is according to the fire time to determine the fire resistance capability.
3. The test finish when the burning battery is exploded or burned away.
