Model Numbe: | XB-OTS-30A | Product Name: | Flexible Customized Walk-in High Temperature Aging Test Room For Cars Testing |
---|---|---|---|
Temperature Control: | -40°C ~ +85 °C | Power Supply: | 380V, 50Hz / 60Hz Customized Acceptable |
Body Materials: | SUS#304 Stainless Steel Plate | Temperature Accuracy: | 0.5°C |
Heating Cooling Rate: | 5°C/min 1.2°C/min | Usage: | Universal Testing Machine,environmental Test Chambers |
Power: | Electronic | Place Of Origin: | Original France Tecumseh |
Highlight: | climate control chamber,walk in environmental chamber |

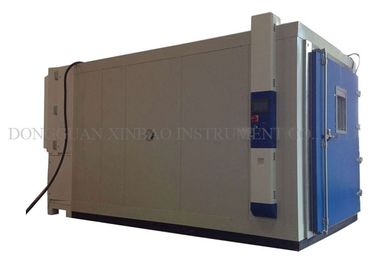

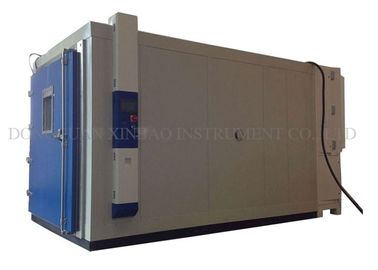

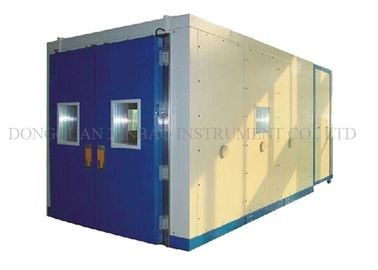

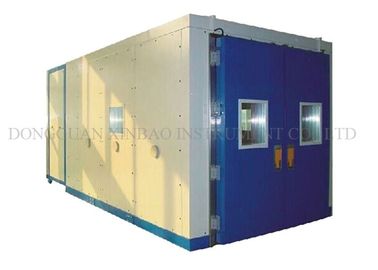

Flexible Customized walk-in high temperature aging test room for cars testing
Applicable Industries:
Flexible Customized walk-in high temperature aging test room for cars testing, also known as Burn-in Room, is one of the common equipment in all kinds of aging tests, which widely used in electronic,computer, communication and any other field . It is consist of containment structures, air duct system,control system,indoor test architecture and other components.
Specification
Flexible Customized walk-in high temperature aging test room for cars testing
Model
Model | XB-OTS-K-A |
Volume | 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements |
Temperature range | -65 °C ~+80 °C |
Humidity range | 20%~95%R.H. |
Accuracy/uniformity | ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
Accuracy/volatility | ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
Cooling time | 5.0 °C /minute |
Inside material | SUS#304 Stainless Steel |
Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
Cooling system | Water-cooled / two-stage compressor |
Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
Accessories | recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
Controller | German Siemens PLC or TH-900C Korea or TEMI |
Compressor | France's Tecumseh Brand or Germany |
Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Control System
(1) P.I.D microcomputer automatic calculate temperature controller, PV/SV display at
the same time, set by press key. (Korea TEMI touch screen controller optional);
(2) 380V Solid state relay temperature output;
(3) Current Controller : SSR no contact relay
Optional accessories:
1. Cable Port: Two size of cable port is available: &50mm, &100mm.
2. Double door
3. Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
4. Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
5. Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.
6. Entire ceiling blow-out duct
7. The extremely wide air inlet reduces the airflow rate (down to apprrox.0.5m/s)
8. Dehumidifier
9. The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21°C,23%RH)for electrostatic reliability tests.
10. Temperature and humidity recorder
11. 100mm width recording paper with 6 dots
12. 180mm width recording paper with 12 dots
13. Status indication lamp
14. Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.
15. Water purifier
16. Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.
17. Power socket
Standard Met and Implemented:
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
Features:
Warranty:
A year's quality guarantee period starting from the date of acceptance of the equipment, in guarantee period, completely free maintenance (except natural disaster, abnormal power, people improper use and maintain causing the damage), in the condition of the buyer abiding by the rules of custody, use and installation, because of the test chamber manufacturing quality problem can't work normally, after the supplier be notified, in accordance with the service commitment of time will help the buyer solve the problem by email, if the buyer need that supplier send maintenance personnel to solve it,the buyer only need pay travel charge.
Equipment problems after warranty period, the supplier promise to give solution on time, discretion charge maintenance costs and the cost of raw materials.
