hot air circulating system Battery temperature thermal shock chamber/impact test equipment

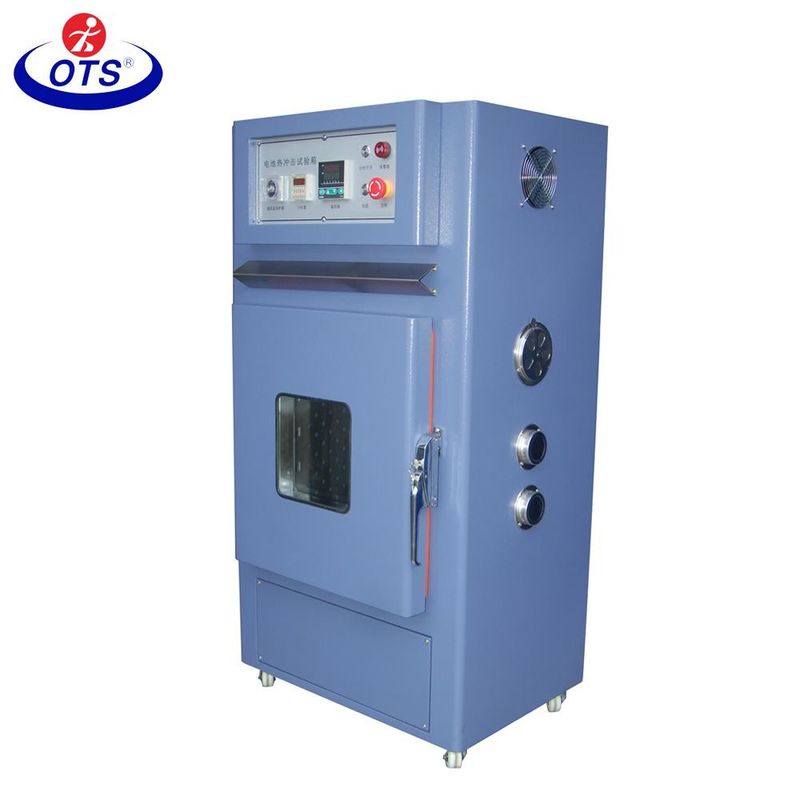

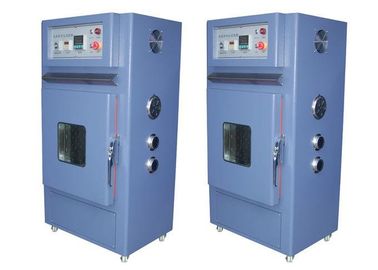

The battery thermal shock test chamber

Product Overview:
The battery thermal shock test box is a simulated battery placed in a high temperature box with natural convection or forced ventilation. The temperature is raised to a set test temperature at a certain heating rate and held for a certain time. A hot air circulation system is used to ensure uniform working temperature distribution.

 The standards:
GB / T 31485-2015, GB / T 31241-2014, UN38.3, IEC62133, QC / T743-201X, GB / T 8897.4-2008, GB / T 21966-2008

technical parameters:

1. Inner box size: 400x400x400mm (width x depth x height)
2. Outer box size: 650x510x1280mm (width x depth x height)
3. Temperature range: normal temperature ~ 200 ℃
5. Temperature display accuracy: 0.1 ℃
6. Temperature stability: ± 1.0 ℃
7. Temperature uniformity: ± 2 ℃
8. Heating time: (5 ± 2) ℃ / min, (average heating, non-linear no-load)
9, temperature control meter: programmable temperature controller, can achieve the total temperature control time, different from ordinary temperature control meters.
10. Material of inner box: stainless steel plate
11. Outer box material: cold-rolled steel plate baking paint
12. Insulation material: efficient compression glass wool
13. Thermal insulation device: no fuse switch, over-temperature protection switch, fuse
14. Power supply: 1∮, 220V, 20A
15. Safety device: sub-temperature alarm, MCCB overload protection, etc.
16. Exhaust flue: blade type design can adjust air volume
17. Control formation: When the temperature of the battery thermal shock test box reaches the set temperature, the time meter is automatically turned on. After the time is reached, the heating power is cut off and the beep sounds.
18. Air circulation system: Convection air circulation system
19. Control system: It's time to warm up, stop when the time comes, and beep

Our Company

OTS Instrument Co., Ltd.

was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing
requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing
process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI,
AATCC, IEC, VDE...

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

98% RH Humidity and Temperature Climate Tester from our factory has a 14-month warranty after shipment. Generally,

we offer 12 months for the FREE maintenance, while considering of sea transportation,

we can extend 2 months for our customers.

If your machine doesn’t work, you can send E-mail to us and we will try our best to find

the problem by email or skype video chat if neccesary. After confirmation of the problem,

we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery

time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider

making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine.
