Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-800P | Product Name: | IEC60529 Lab Dustproof Test Chamber , IP5X IP6X Sand And Dust Test Chamber |
|---|---|---|---|
| Dust Concentration:: | 2kg/m3~5kg/m3, Should Be Replaced | Dust Type: | Powdered Cement, Dry Talcum Powder |
| Blower: | Centrifugal Fan | Environment Temperature And Humidity:: | 15~45c, 45~75%Rh |
| Sieves Hole Size: | 75um | Wire Netting Wire: | 50um |
| Dimension: | All Size Customized | Test Standards: | IEC60529 IEC 60598 GB2423.37-89 I |
| High Light: | climate control chamber,walk in environmental chamber |
||

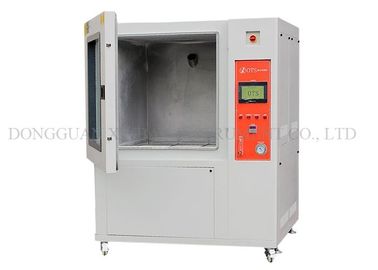

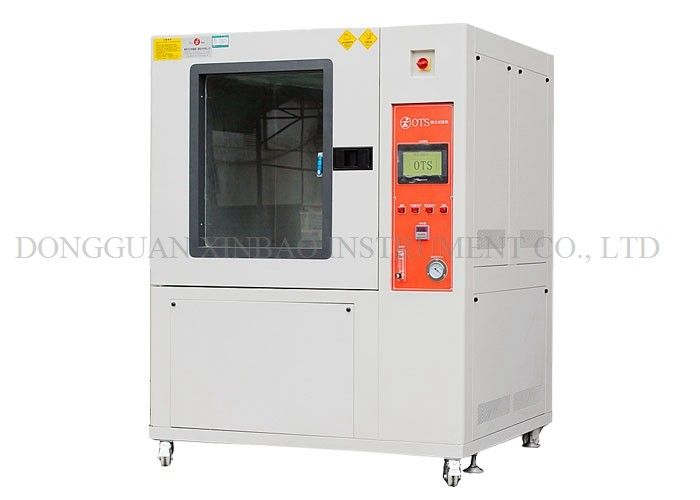

IEC60529 Lab dustproof test chamber , IP5X IP6X Sand And Dust Test Chamber
Working principle of chamber:
Centrifugal fan is the main source of dust movement, the high-speed operation of the fan so that dust into the fan due to the centrifugal force of the role of fan blades into the dust pipe dust. The wind speed of the pipeline is usually more than 7.5m / s (too low wind speed will make the dust precipitate in the pipeline will cause the test tube can not work). The dust line was sprayed from above into the test chamber and passed through the sample at a rate of> 2 m / s. Sand and dust chamber As the lower part of the working box for the funnel, it can precipitate down the dust into the lower part of the 72 × 50um filter. Through the vibrating motor vibration, less than the diameter of the filter hole in the dust and centrifugal fan sucked so back and forth.
Uses
The Dustproof Test Chamber XB-OTS-IP65X is according to IEC60529, IEC 60598, GB2423.37-89 (Test L:dust test methods), GB 4208-93 protective casing grade (IP code), GB/T 4942.2-93(protective casing grade of low-voltage apparatus), GB 7000.1-1996, GB 7001-1986(protective casing grade of lamps),DIN40050 and IP5K0. The XB-OTS-IP65X is applied in LED or other luminaries for IP5X and IP6X test
Specifications :
| Product name | IEC60529 Lab dustproof test chamber , IP5X IP6X Sand And Dust Test Chamber |
| Test chamber dimension | 800*800*800mm(800*1000*1000mm, 1000*1000*1000mm, 1000*1500*1000mm) |
| Outer dimension | according to inner structure |
| Metal screen wire diameter | 50um |
| Screen line space | 75um |
| Environment temperature and humidity | 15~45°C, 45~75%RH |
| Dust(talcum powder) concentration | 2~4kg/m3 |
| Test time | Dust test time set freely, 0~999.9hr |
| Test dust | Dry talcum powder or port land cement |
| Test standards | GB4706,GB2423,GB7000.1,IEC60529 |
| Cable hole | φ50mm(circumscribed power accepted) |
| Power supply | AC 2ψ3W220V 50HZ 2.5KW |
Chamber Design Features
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
We are here to help you. Services available:
Replacement manuals
If you have an OTS chamber , we will do our best to help you in whatever way we can.
Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.
Please feel FREE to contact us if you have any needs.
