Product Details:
Payment & Shipping Terms:
|
| Product Name: | Easy Installation Welded Stability Walked-in Rooms With Inspection Window | External Chamber: | R Material: Plate+painting Or Stainless Steel |
|---|---|---|---|
| Refrigerant: | Environmental Friendly R23/R404A | Heat Up & Cool Down Time: | About 3℃/min From Room Ambient To 100℃, About Average 1℃/min From Room Ambient To -60℃. |
| Warranty: | 12 Months | Temperature: | -70℃~180℃ |
| Humidity: | 10%~98% | Inner Chamber Material: | Stainless Steel |
| High Light: | walk in stability chamber,walk in climatic chamber |
||

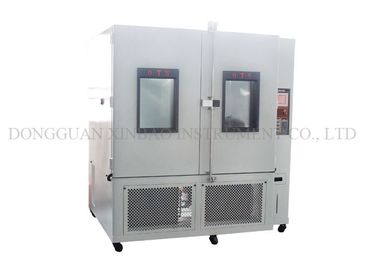

Easy Installation Welded stability walked-in rooms with inspection window
Introduction:
Easy Installation Welded stability walked-in rooms with inspection window is suitable for high temperature testing(180℃), high humidity, rapid temperature change rates, or combined environmental testing environment.
| Model | XB-OTS-1200E |
| Volume | 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements |
| Temperature range | -70℃~180℃ |
| Humidity range | 10%~98%R.H. |
| Accuracy/uniformity | ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
| Accuracy/volatility | ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
| Cooling time | 5.0 °C /minute |
| Inside material | SUS#304 Stainless Steel |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Cooling system | Water-cooled / two-stage compressor |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| Accessories | recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| Controller | German Siemens PLC or TH-900C Korea or TEMI |
| Compressor | France's Tecumseh Brand or Germany |
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
|
Humidifying &Humidifying System |
(1) Electric & byte type humidifying system (2) Stainless steel humidifying barrel with view window for water level (3) ADP dehumidifying way (4) Over temperature and overflow protection units |
| Humidity Range |  |
Applications
For all types of electronic products quality inspection , electric appliance, and communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries products.
Features:
1.Realize temperature constant value control and program control;
2.The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3.With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.
4.Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5.Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6.Customize size/customize indicators/customize various optional features
Related Testing Standard:
Humidifying &Humidifying System:
(1) Electric & byte type humidifying system
(2) Stainless steel humidifying barrel with view window for water level
(3) ADP dehumidifying way
(4) Over temperature and overflow protection units
(5) P.I.D control Humidifying & dehumidifying systems separated
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for Easy Installation Welded stability walked-in rooms with inspection window.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
