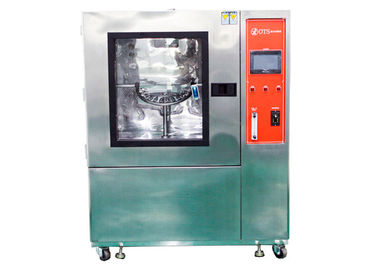

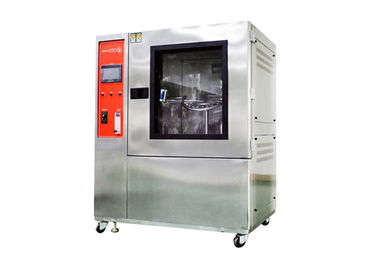

JIS D 0203- R1 R2 S1 S2 Environmental Testing Machine Rain Spray Test Chamber

Large Image : JIS D 0203- R1 R2 S1 S2 Environmental Testing Machine Rain Spray Test Chamber

Product Details:

Place of Origin:	China
Brand Name:	OTS
Certification:	CE Certification
Model Number:	XB-OTS-900

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	Negotiable
Packaging Details:	Strong standard wood case, inner plastic films wrapped for Lab waterproof testing Environmental Rain Spray Test Chamber Ipx1 Ipx2 Ipx3 Ipx4 For Automobile
Delivery Time:	20 working day after getting the payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 Unit/Units per Month

Contact Now

Detailed Product Description

Model Numbe:	XB-OTS-900	Product Name:	JIS D 0203-R1, R2, S1, S2 Rain Spray Test Chamber
Rain Pressure:	Speed Of Turntable Rpm	Speed Of Turntab:	1~10 Adjustable
Chamber Material:	SUS304 Stainless Steel	Drop Test::	0.1~1.5°C/Min
Temperature Rising Speed::	Ipx3. Ipx4 Swing Pipe: Rt-+80°C	Test Standard::	JIS, ISO, IEC60529, DIN40050, GB4208
Highlight:	temperature controlled chamber , environmental growth chambers

JIS D 0203-R1, R2, S1, S2 Rain Spray Test Chamber

Description & Application

Rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
This product uses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.

Meet the standard:

GB4208-2008 IEC60529-2001 JIS D 0203-R1, R2, S1, S2

The main technical parameters

Inner chamber size	L900D900H900mm
Dimension	About L1400D1280H1900mm
Turntable Diameter	￠400mm(could be option ￠200mm)
Turntable Load Weight	50KG
Lifting height	450-750 mm
Turntable Angle	0° or 15°(Horizontal)
Turntable Speed	1 -20r/min (precision adjustable)
Rotation mode of turntable	Always forward/forward/backward alternation/intermittent rotation
Test Time	0-999 min
Weight	About 250kg
IPX34 Part - Technical parameters
Radius of pendulum tube	R400mm(could be option R200mm)
Swing pipe flow rate	IPX3=1.1L/min； IPX4=1.8L/min； IPX4K=15L/min(0-18L/min adjustable )
pressure	IPX3=80Kpa, IPX4=80Kpa； IPX4K=400Kpa(0-500Kpa adjustable)
Size of water spray aperture	IPX3-4=0.4mm,IPX4K=0.8mm (Convenient replacement)
Water jet aperture spacing	50mm
Internal diameter of pendulum tube	15mm
Pendulum angle	120º(IPX3),350º(IPX4)Or custom settings
Swing speed	240°back and forth 4S,720°back and forth 12S (precise control)
Parameter of JIS D0203 R1/R2
Rain nozzle	Strictly designed according to the figure of JIS D0203 standard
hydraulic pressure	0.003～0.015MPa,Adjustable pressure
Water jet hole	As shown in the figure, the sprinkler hole can be machined to meet the requirements of JIS D0203 sprinkler test.
Nozzle number	2 pcs
Spray water time range	0～99h59m,could be setting
Tube rotates around the shaft	1～23r/min adjustable
Parameter of JIS D0203 S1/S2
Rain nozzle	Strictly designed according to the figure of JIS D0203 standard
hydraulic pressure	0.003～0.015MPa,Adjustable pressure
Nozzle diameter	Φ1.2mm
Nozzle number	40 pcs
Spray water time range	0～99h59m,could be setting
Tube rotates around the shaft	1～23r/min adjustable
Electric Parameter
Power supply	220V
Power supply of specimen	220V
Power	1.0KW
Safety protection function	Leakage protection, water shortage protection, short circuit protection
