Product Details:
Payment & Shipping Terms:
|
Temperature Control Range: | -70°C ~ +150(180) °C | Refrigerant: | RS23/R404A |
---|---|---|---|
Power Supply: | 220V Or 380V 50/60Hz (Can Be Customized) | Controller: | OTS Designed Controller With LCD Touch Screen |
Body Materials: | SUS#304 Stainless Steel Plate | Waterway Device And Circuit Device: | Separated |
Compressor: | Franch Tecumseh | Warranty: | 12+2 Months |
High Light: | constant temperature chamber,constant temperature humidity chamber |
Introduction:

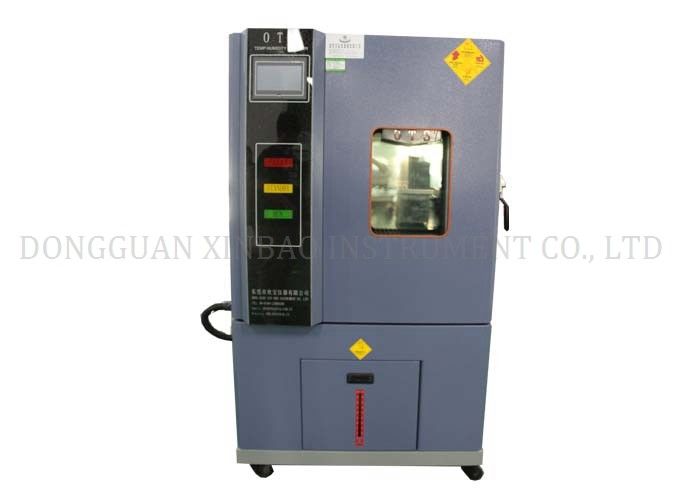

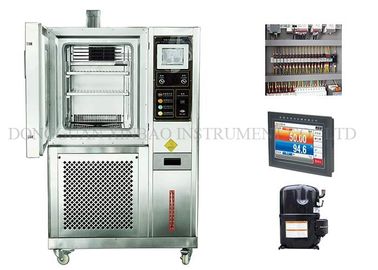

Laboratory Temp Chamber , Temperature Cycling Chamber , Thermal Cycling Chamber is for testing material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,Communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials, medical, aerospaceand other products.
Technical Parameters:
Model | XB-OTS-80 | XB-OTS-150 | XB-OTS-225 | XB-OTS-408 | XB-OTS-800 | XB-OTS-1000 |
---|---|---|---|---|---|---|
Inner Chamber Size W*H*D(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 80*85*60 | 100*100*80 | 100*100*100 |
External Chamber Size W*H*D(cm) | 90*142*100 | 100*152*113 | 110*167*113 | 130*177*123 | 150*192*144 | 150*192*163 |
Inner Chamber Volume(L) | 80 | 150 | 225 | 408 | 800 | 1000 |
Temperature Range | -70°C~+150°C(180°C)(A:-20℃ B:-40℃ C:-60°℃ D:-70℃) (Optional) | |||||
Humidity Range | N/A |
Standard Reference:
GB11158 | GB10589-89 |
GB10592-89 | GB/T10586-89 |
GB/T2423.1-2001 | GB/T2423.2-2001 |
GB/T2423.3-93 | GB/T2423.4-93 |
GB/T2423.22-2001 | IEC60068-2-1.1990 |
MIL-STD-810F-507.4 | MIL-STD883C 1004.2 |
JIS C60068-2-3-1987 | IEC68-2-03 |
ASTM D1735 | JESD22-A101-B-2004 |
JESD22-A103-C-2004 | JESD22-A119-2004 |
FAQ:
1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. Do you have a branch company or service office in my country?
We have offices in the belowing:
The US Office: XIN BAO INSTRUMENT (US) LLP
Address: 1201 N Park Ave Tucson AZ 85719
Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD
Tel:+(848)66764653 Fax:(+848)37527888
Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.
Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd
Tel: (+65) 96857857
Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349
Italy Dealer :AMSE SRL
Tel:+39-011-2730000
Address: Strada della Cebrosa 86, 10156 Torino Italy
Suzhou Branch: XIN BAO INSTRUMENT SUZHOU BRANCH
Tel:0512-67078249 Fax: 0512-67078749
Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province
Taiwan : TAIWAN XIN BAO INSTRUMENT CO.,LTD
Tel:04-24731563 Fax:04-23804092
Address: No. 551-1, 4, Central Road, Taichung City, Taiwan
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
