Model Numbe: | XB-OTS-800P | Product Name: | IP5X IP6X Sand Dust Resistance Test Chamber For LED Light Lab Dustproof Testing |
---|---|---|---|
Dust Concentration:: | 2kg/m3~5kg/m3, Should Be Replaced | Dust Type: | Powdered Cement, Dry Talcum Powder |
Blower: | Centrifugal Fan | Environment Temperature And Humidity:: | 15~45c, 45~75%Rh |
Sieves Hole Size: | 75um | Wire Netting Wire: | 50um |
Dimension: | All Size Customized | Test Standards: | IEC60529 IEC 60598 GB2423.37-89 I |
High Light: | climate control chamber,temperature and humidity chamber |

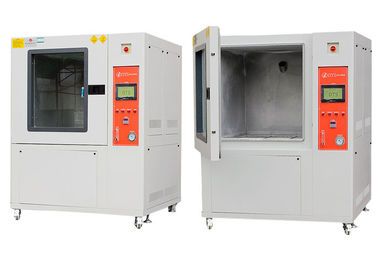

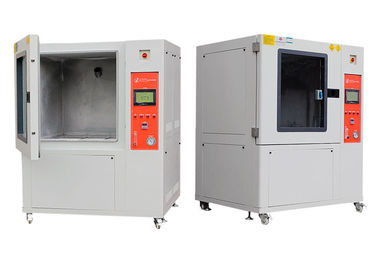

IP5X IP6X sand dust resistance test chamber for LED light Lab dustproof testing
Working principle of chamber:
Centrifugal fan is the main source of dust movement, the high-speed operation of the fan so that dust into the fan due to the centrifugal force of the role of fan blades into the dust pipe dust. The wind speed of the pipeline is usually more than 7.5m / s (too low wind speed will make the dust precipitate in the pipeline will cause the test tube can not work). The dust line was sprayed from above into the test chamber and passed through the sample at a rate of> 2 m / s. Sand and dust chamber As the lower part of the working box for the funnel, it can precipitate down the dust into the lower part of the 72 × 50um filter. Through the vibrating motor vibration, less than the diameter of the filter hole in the dust and centrifugal fan sucked so back and forth.
Uses
The Dustproof Test Chamber XB-OTS-IP65X is according to IEC60529, IEC 60598, GB2423.37-89 (Test L:dust test methods), GB 4208-93 protective casing grade (IP code), GB/T 4942.2-93(protective casing grade of low-voltage apparatus), GB 7000.1-1996, GB 7001-1986(protective casing grade of lamps),DIN40050 and IP5K0. The XB-OTS-IP65X is applied in LED or other luminaries for IP5X and IP6X test
Specifications :
Model No | XB-OTS-800P | XB-OTS-1000P | XB-OTS-1500P | ||
Inner chamber size (W*H*D mm) | 800*800*800 | 1000*1000*1000 | 1000*1000*1500 | ||
Metal screen stencil OD | 50um | ||||
Standard line-line distance | 75um | ||||
Fossil meal usage | 2kg ~ 4kg/m3 | ||||
Vibration hit time | 0 ~ 99H59M,adjustable | ||||
Circular air flow time | 0 ~ 99H59M,adjustable | ||||
Dust collection | 25gm±5gm within 5 mins | ||||
Control system | |||||
Controller | LCD touch screen controller, TEMP880 | ||||
Vacuum system | Equipped with a pressure gauge, air filter, pressure regulating triple, connecting tube ( Reprovision vacuum pump) | ||||
Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | ||||
Dust heating system | Stainless steel mica sheet heating jacket | ||||
Safety Devices | Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller |
Chamber Design Features
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
Dust Testing Equipment troubleshooting methods:
1, dust chamber no electricity power meter does not light: Check the power supply is normal, check the phase sequence is normal, whether the zero line.
2, do not blow dust: Check the blower fan is working properly or is too small, check the dust is dry.
3, does not vibrate: Check vibration motor is normal.
4, there should be someone Shachenshiyanxiang management operations, and regular cleaning of the blower housing and regular maintenance should be professionals.
5, in order to stably play chamber function, performance, select a constant temperature of between fifteen to twenty-five degrees, relative humidity less than 85% of the space.
6, the distance between adjacent walls or between objects. Installation site ambient temperature should not abruptly change five should be installed in a place without direct sunlight, should be installed in a well ventilated place, away from the place combustible, explosive and high temperature heat source, the equipment should be installed in a dusty little place, do It may be installed near the power supply place.
7, the device no power: Check the power supply is normal, check the phase sequence is normal, whether the zero line.
Please feel FREE to contact us if you have any needs.
