Luggage Drop Weight Impact Testing Machine QBT 2155-2018 Standard For Shaped Bags

Certification
China Dongguan Xinbao Instrument Co., Ltd. certification
China Dongguan Xinbao Instrument Co., Ltd. certification
This is my second cooperation with OTS, the machine is very good, and fast service. Look forward our next order.

—— Vinod Kumar Pandey

OTS is a very professional manufacturer for our customized machine. The quality is very surprising under such a friendly price.

—— Kohut Gabor

I visited OTS factory before order. I like their production machines, and experienced technicians. Now we have annual order from them, it is always a happy cooperation with them.

—— Chris

I'm Online Chat Now

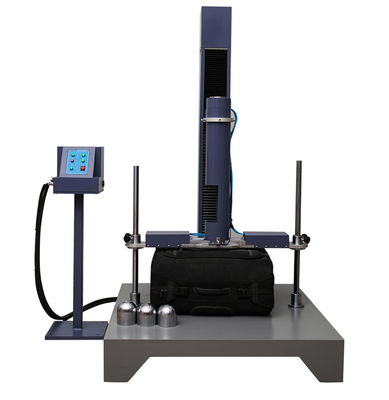

Luggage Drop Weight Impact Testing Machine QBT 2155-2018 Standard For Shaped Bags

Luggage Drop Weight Impact Testing Machine QBT 2155-2018 Standard For Shaped Bags
Luggage Drop Weight Impact Testing Machine QBT 2155-2018 Standard For Shaped Bags

Large Image :  Luggage Drop Weight Impact Testing Machine QBT 2155-2018 Standard For Shaped Bags

Product Details:
Place of Origin: Dongguan China
Brand Name: OTS
Certification: CE ISO9001
Model Number: Lab Test Chamber
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for RoHS Energy Dispersive X-Ray Fluorescence Spectrometer XRF Analyzer
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Key Words: Luggage Drop Weight Impact Testing Machine Maximum Height: 1500mm
Falling Ball Control Method: DC Electromagnetic Control Weight Of Impact Head: 2000g, 3000g, 4000g, 5000g Each
Machine Size: (L × W × H) 120cm × 120cm × 210cm Brand: OTS
High Light:

Luggage Drop Weight Impact Testing Machine

,

Impact Testing Machine QBT 2155-2018

,

Impact Testing Machine For Shaped Bags

Luggage Drop Weight Impact Testing Machine Suitable For The Impact Resistance Test Of Shaped Bags And Other Materials

Product introduction



The drop weight impact tester is suitable for the impact resistance test of shaped bags and other materials. The instrument is adjusted at a certain height with the specified weight of the impact head to make it fall freely and strike the sample, depending on the degree of damage. It is suitable for the impact resistance test of shaped bags and other materials test method



The instrument is adjusted at a certain height with a specified weight of impact head to make it fall freely and strike the sample according to the damage degree.



Test standard:

the instrument conforms to JIS-K6745, a5430, QB / T 2918-2007, QBT 2155-2018 luggage test standard.



Technical parameters:



Maximum height: 1500mm

Falling ball control method: DC electromagnetic control

Weight of impact head: 2000g, 3000g, 4000g, 5000g each

Dimension of impact head: cylinder diameter 100 ± 2mm, bottom radius 50 ± 2mm

Machine size: (L × w × h) 120cm × 120cm × 210cm

Power supply: 1 ∮, AC 220



Advantage Service:



1. We have R&D, designing department which can not only provide technological machines but also can satisfy special customized needs of our clients.

2. Over 50 years’ manufacturing experience, advanced machine and sophisticated handcraft.

3. There are TWO laboratories in our factory: Environmental laboratory and Physical laboratory.

4. Our factory have adequate stock monthly, which can meet customers’ urgent needs.

5. Annual sales over 1,500,000USD; 30,000㎡manufacturing base, equipped with 120 technicians, we are capable to take large budget project.
