Key Words: | Luggage Oscillation Test Machine | Voltage: | AC220V,50Hz |
---|---|---|---|
Machine Size: | (L*W*H) 150x200x2900mm | Safety Device: | Photoelectric Sensor |
Impact Height: | 0~200mm (Adjustable) | Brand: | OTS |
High Light: | Luggage Oscillation Impact Testing Equipment,Impact Testing Equipment For Buckle Strength,ISO9001 Impact Testing Equipment |

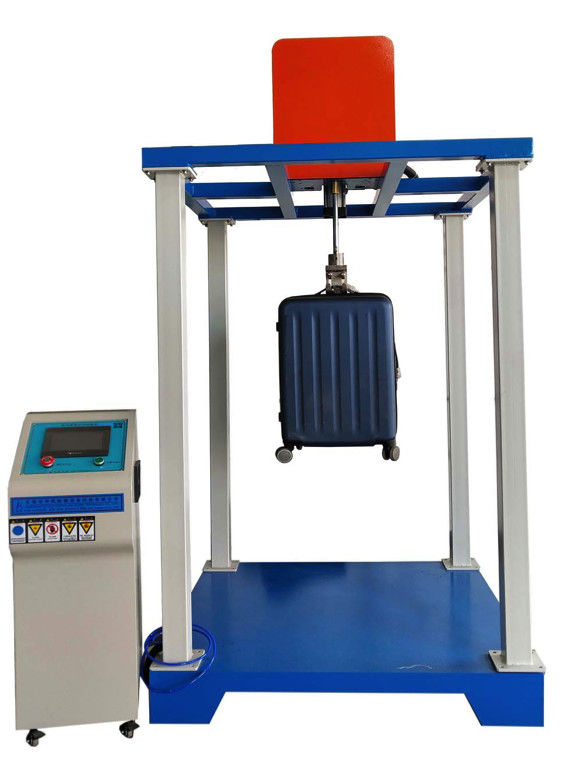

Luggage Oscillation Test Machine Used For Testing The Strength Of Buckle
Luggage Oscillating Impact Testing Machine is used for testing the strength of buckle, handle and whole structure of suitcase, travel bag. The test results can be used as a reference for product improvement when the test pieces are tested at a speed of 20 times per minute and a stroke of 0 ~ 4 inches with the specified load of suitcase, travel bag and so on. Using touch screen control, can accurately display the speed, test times, test process, screen simple operation simple, elegant appearance.
(PLC man-machine interface control, independently developed JY5.0 test software)
Design standard
QB/T1333-2018-5.3.1.3,QB/T2155-2018-5.5.4,QB/T5082-2017-5.5.1
Model | XB-OTS-1314 |
Impact device | Mass (8.1 + 0.2) kg ; The one-way stroke of up and down motion is (150 + + 5) mm |
Impact height | 0~200mm (Adjustable) |
Oscillation mode | Spring type 1.79kg/mm, (17.54 + 0.88) N/mm |
Control mode | Touch screen +PLC control, preset and edit impact mode (New standard requires one impact test and one pull rod lift test) |
Maximum load | 100kg |
Testing speed | 20 times/min |
Number setting | 0 to 999.9 hours, automatic shutdown (power failure memory function) |
Control mode | PLC+ touch screen |
Testing software | Independent research and development of JY5.0 test software |
Safety device | Photoelectric sensor |
Weight | 200KG |
Voltage | AC220V,50Hz |
Machine size | (L*W*H) 150x200x2900mm |
Test fixture | Two sets (One set for Trolley handle grips, another for shoulder strap clamps) |
The exclusive specially designed drop starting point device ensures that the starting point of the spring is automatically adjusted under different load, ensuring the height of the drop and ensuring the accuracy of the test. |
