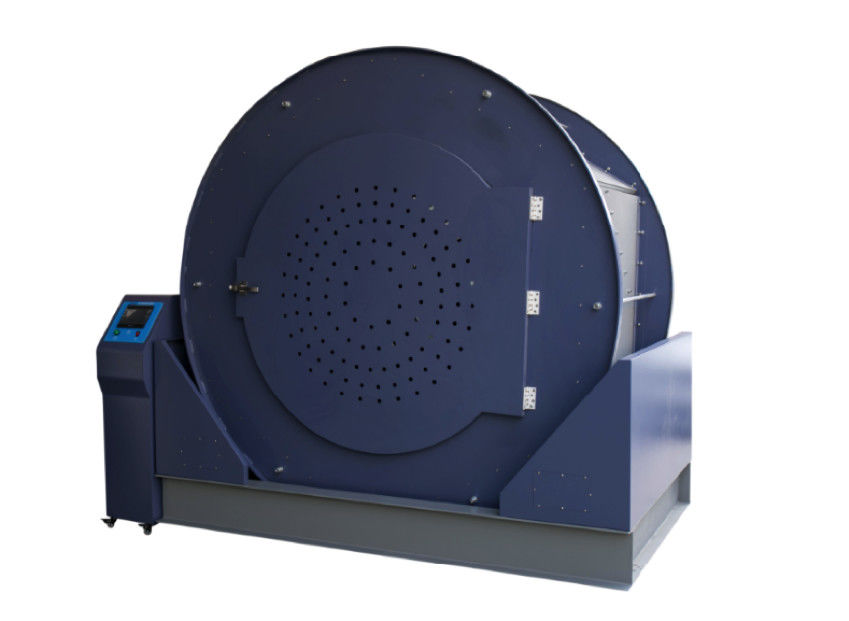

Luggage Roller Impact Testing Machine ISTA Standard GB Standard

According To ISTA Dand GB Standards Luggage Roller Impact Testing Machine / Depth : 1250mm​

Product model: Xb-OTS-290C

Product Introduction

This product is designed and manufactured according to ISTA and GB standards. Simulation tests are carried out on the roll and impact of travel case and other packing cases during transportation. The box rolls and impacts in the roller. After the specified number of revolutions, check the damage condition of the box as the basis for product improvement.

According to the standard:

QB / t4116-2018 drum drop test method QBT 2155-2018 luggage.

Product specification:

A. Inner diameter of roller: ￠ 2200mm;

B. Depth: 1250mm

C. Drum speed: 2 rpm

D. Obstacle specification: 3 groups of 96 degree obstacles, 1 conical block and 1 horizontal baffle

E. Specimen size: (maximum) 1000 × 700 × 400mm

F. Counter: 0 ~ 99999, can be set (can stop automatically)

G. Transmission system: Taiwan Changyi speed control motor, stable operation

H. Machine size: 250 * 160 * 250cm (L * w * h)

1. Power supply: 220 V, 50 Hz

J. Weight: 1860 kg

Technical Service:

Each machine we can provide circuit diagram and Spear parts list for you to full understand. All controller made by OTS is Chinese-English version, and equipped with specific operation instruction.
