Multifunctional Walk In Test Chamber SUS304 Inner Chamber Materials Tear Resistance Walk In Stability Chamber

Multifunctional Walk In Test Chamber SUS304 Inner Chamber Materials Tear Resistance Walk In Stability Chamber
Multifunctional Walk In Test Chamber SUS304 Inner Chamber Materials Tear Resistance Walk In Stability Chamber Multifunctional Walk In Test Chamber SUS304 Inner Chamber Materials Tear Resistance Walk In Stability Chamber

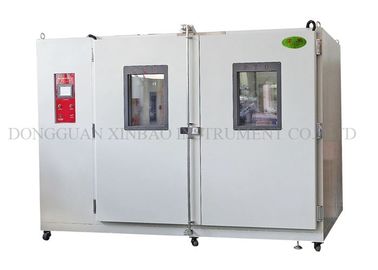

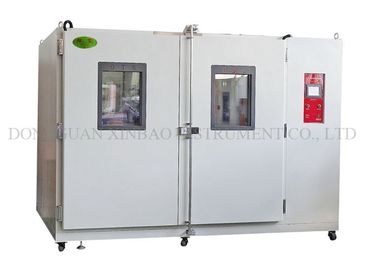

Large Image :  Multifunctional Walk In Test Chamber SUS304 Inner Chamber Materials Tear Resistance Walk In Stability Chamber

Product Details:
Place of Origin: Guangdong Provice; China
Brand Name: OTS
Certification: CE; ISO
Model Number: XB-OTS-1000E
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped
Delivery Time: 30 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100sets per month
Detailed Product Description
Product Name: Multi-function Water Cooling Walk In Climatic Simulation Temperature Humidity Test Chamber Controller: Programmable LCD Touch Screen
Inner Chamber Materials: SUS304 External Chamber: R Material: Plate+painting Or Stainless Steel
Temperature: -40℃~120℃ Refrigerant: Environmental Friendly R23/R404A
Heat Up & Cool Down Time: About 3℃/min From Room Ambient To 100℃, About Average 1℃/min From Room Ambient To -60℃. Warranty: 14 Months
High Light:

walk in stability chamber

,

walk in climatic chamber

       Multi-function water cooling walk in climatic simulation temperature humidity test chamber


Introduction:
Multi-function water cooling walk in climatic simulation temperature humidity test chamber are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.



Model XB-OTS-1000E
Volume 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements
Temperature range -40 °C ~+120 °C
Humidity range 10%~98%R.H.
Accuracy/uniformity ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.
Accuracy/volatility ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.
Cooling time 5.0 °C /minute
Inside material SUS#304 Stainless Steel
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Water-cooled / two-stage compressor
Protection No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
Accessories recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball
Controller German Siemens PLC or TH-900C Korea or TEMI
Compressor France's Tecumseh Brand or Germany
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
Humidity and Temperature Area: Multifunctional Walk In Test Chamber SUS304 Inner Chamber Materials Tear Resistance Walk In Stability Chamber 0


Applications:



  • Battery
  • Vehicles
  • Chemical
  • Aerospace
  • Metal Parts
  • Electronics
  • Car Spare Parts
  • Building Materials
  • Communication Equipment
  • Plastic Rubber Products


Features:



1.Realize temperature constant value control and program control;
2.The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3.With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.
4.Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5.Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6.Customize size/customize indicators/customize various optional features


Electrical System:



(1) adjustable over-temperature protection

(2) test space temperature fuse

(3) air-conditioning channel over-temperature

(4) Short-circuit protection device leakage

(5) the total power supply phase sequence protection

(6) Overload circuit protection

(7) load short-circuit protection



Program storage capacity:





(1) up to 127 programs, long run

(2) each 999 hours, maximum 32,000 cycles

(3) Each command may 9999) Time: 0 to 99 hours 59 minutes

Real-time display of graph during program execution,etc.


Related Testing Standard:

GB/Bb T2423.2-89 high temperature test method

GB2423.1-89 test A: low temperature test method 6

Ab IEC60068-2-1 low temperature test method

GJB150.4-1986 test at low temperature

EIA - 364-59 test at low temperature

IEC60068-2-38 temperature cycle

IEC60068-2-78 constant humidity temperature

MIL - STD – 202G – 103B humidity test

IEC60068-2-30 humidity temperature cycle

EIA - 364-31C wet resistance

GB/T2423.3 constant humidity heat test method

GJB150.4-86 military equipment environment test method for low temperature test

GJB150.3-86 military equipment environment test method for high temperature test

GB/T2423.34-2005 temperature and humidity combined cycle test method
 GJB150.9-86 military equipment environment test method for humidity  temperature test


Humidifying &Humidifying System:





(1) Electric & byte type humidifying system

(2) Stainless steel humidifying barrel with view window for water level

(3) ADP dehumidifying way

(4) Over temperature and overflow protection units
  (5) P.I.D control Humidifying & dehumidifying systems separated




Package and shipment:


(1). Strong standard wood case, inner plastic films wrapped for Multi-function water cooling walk in climatic simulation temperature humidity test chamber .
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.



Multifunctional Walk In Test Chamber SUS304 Inner Chamber Materials Tear Resistance Walk In Stability Chamber 1
