Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Usage: | Abrasion Tester |
|---|---|---|---|
| Drum Speed: | 45 +/- 5 Rpm | Downward Force Of Mass: | 22 N (5 Lbf) |
| Required Air Pressure: | 35 Psi | Load: | 2265 G, Three Groups |
| Counter: | LCD, 0 ~ 999999 | Aspiration Force: | 2.1 Kg/cm2 |
| Motor: | 1/4 HP | Grinding Paper: | #40 Grit |
| High Light: | mechanical tensile testing machine,tensile strength testing equipment |
||

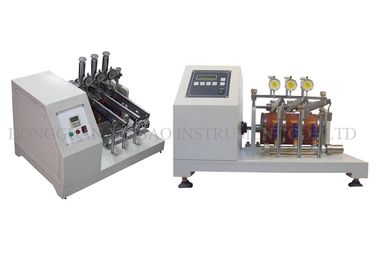

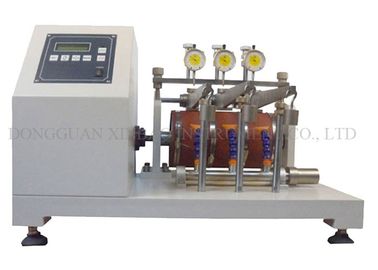

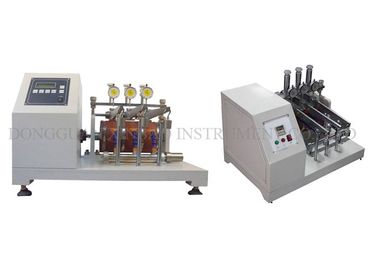

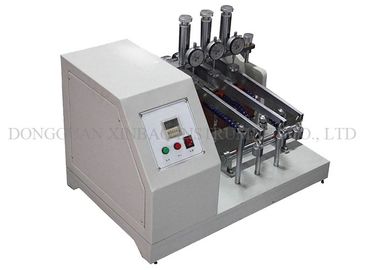

NBS Plastic Rubber Abrasion Tester, NBS Gum-elastic Abrasion Test Machine
Introduction:
Abrasion Test Machine is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight,
volume and thickness, from this standard to assess the abrasive nature of materials.
Main functions:
Abrasion Test Machine is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.
Corresponding standard:
Abrasion Test Machine meet DIN-53516;ISO-4649;GB/T9867-88;
Applicable industry:
Abrasion Test Machine applied to test leather performance in shoes, clothing, luggage handbag
industry, research laboratories; commodity inspection, arbitration and technical supervision departments
Technical parameters:
| 1.Products Name | Abrasion Test Machine |
| 2. Model | Rubber Shoes DIN Abrasion Resistance Tester |
| 3. Specimen Size | dia 16mm, thickness at least 6mm |
| 4. Specimen Load | 10N± 0.2N |
| 5. Diameter of wear wheel | dia 150mm |
| 6. Speed of wear wheel | 40 ±1RPM |
| 7. Emery cloth Specification | 60 #, seam is less than 2mm |
| 8. Testing Length | 40M (about 84 rotate) |
| 9. Horizontal displacement | 4.2mm / rotate |
Machine Specifications:
| 1. Test-arm weight | 250 ± 5 (g) |
| 2. Testing Load | 2.5N, 7.5N |
| 3. Diameter abrasive wheel | dia 150 ± 450L (mm) |
| 4. Emery cloth | 60 #, 425 ±473 ±1.5 (mm) |
| 5. Wheel Speed | 40 ± 1RPM |
| 6. Shift screw | 6 teeth / inch |
| 7. Limit rotation | 85 rotate |
| 8. Set rotation | 84 rotate (about 40M) |
| 9. Return form | Electric automatic reset |
| 10.Drive Power | 40W; 1 / 30 |
| 11.Power | 220V 50HZ |
| 12.Machine Dimensions | 600 ±330 ±420 (mm) |
| 13.Machine Weight |
75kg |
