Product Details:
Payment & Shipping Terms:
|
| Power: | 1 Phase 220V 50Hz | Cable Port: | External Power |
|---|---|---|---|
| Customized Size: | Acceptable | Control Method: | PID ,PID Automatically Adjust The Output |
| Temp Control Fluctuation: | ± 1.5℃ | Temperature Range: | RT+10℃～300℃ |
| High Light: | hot air circulation drying oven,laboratory drying oven |
||

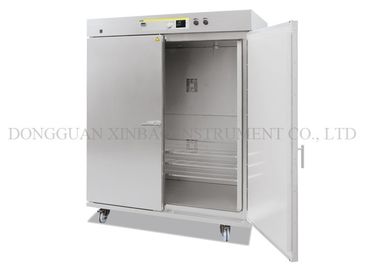

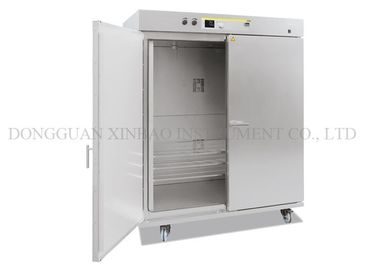

OEM Acceptable Forced Air Drying Oven , Laboratory Heating Oven PID Control Method
Specification:
| Product name | High Temperature oven | Model Number | XB-OTS-150L | ||
| Power | 1 phase 220V 50Hz | Cable Port | External Power | ||
| Interior size(W*H*L) | 50*60*50cm(W*H*D) |
Exterior size (W*H*L) |
69*110*64cm(W*H*D) | ||
| Customized size | Acceptable | Control method | PID ,PID automatically adjust the output | ||
|
Advantages:
|
1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted.
2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.
3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.
4.Timing device for LED Digital constant timing, providing complete use Conditional design.
5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.
6.Machine continuous running time is above three month
7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down. |
||||
| Temp control fluctuation | ± 1.5℃ | Temperature range |
RT+10℃～300℃
|
||
| Accuracy | ±0.5℃ | Temperature resolution | 0.1 | ||
| Temperature uniformity | ±2℃ | Power |
4.8KW
|
||
|
Key set of data input |
Resolution 0.1 ℃ ntegration time(IT): 0～3600s Derivative time(DT): 0～900s Built-in timer function
|
Protection device |
Motor overload protection
|
||
|
Heating up time (NO-load) |
RT～160℃ about 28min
|
||||
| Temp controller | The microcomputer automatically calculus controller | ||||
| Chamber materials |
1．Inner chamber materials:SUS stainless steel plate 2．External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating. 3．Insulation material: aluminum silicate glass wool 4．The clapboard Material: Stainless Steel 5．Stainless steel electric heater Material: fin heat pipe type 6．Time control: 0 ~ 999H/M/S adjustable. 7．The rmometry body: T thermocouple |
||||
| Air supply method |
Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door.
|
||||
| Use of the environment |
Allowable temperature range of 0 ~ 35 ℃
|
||||
FEATURES:
*External material: cold-rolled steel with anti-bacteria powder coating.
*Stainless steel inner chamber, round angle structure, adjustable shelves.
*Double-layer glass observation window, adjustable airtight buckle lock.
*PID microprocessor intelligent temperature controller.
*Over-temperature protection.
Company Introduction
Dongguan Xinbao Instrument Co., Ltd, with owner brand of OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards:ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, Aviation, etc.
OTS Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation;
2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
FAQ:
1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. Do you have a branch company or service office in my country?
Yes,we have branchs over the world.
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
