Product Details:
Payment & Shipping Terms:
|
| Outer Box Material: | A3 Cold Plate Paint, Thickness | Pressure Range: | 0.5 ~ 100Kpa, Commonly Us |
|---|---|---|---|
| Inner Box Size: | W400xH400xD400mm | Outside Dimension: | W550xH1200xD550 |
| Sample Shelf: | Stainless Steel | Vacuum Display: | Pointer (or Digital Display) |
| High Light: | battery and cell test equipment,impact test apparatus |
||
Technical parameter:

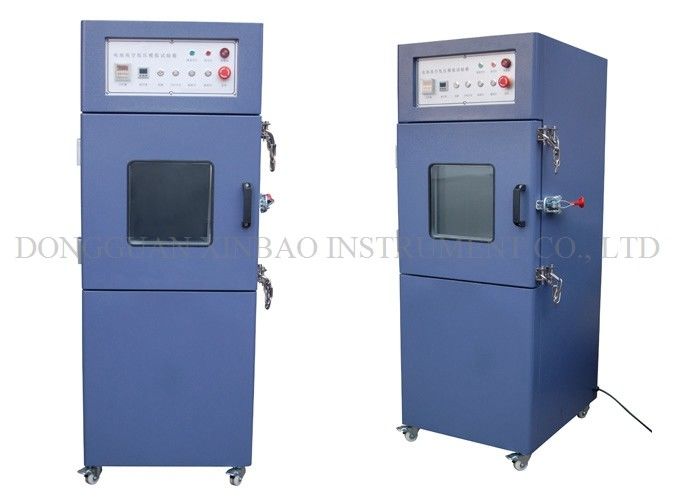

| Product name | Battery simulate high altitude low pressure test chamber |
| inner box Material | SUS201 # stainless steel, thickness 3mm |
| outer box material | A3 cold plate paint, thickness 1.5mm |
| pressure range | 0.5 ~ 100Kpa, commonly used test pressure 11.6 Kpa |
| inner box size | W400xH400xD400mm |
| Outside dimension | W550xH1200xD550 |
| Sample shelf | stainless steel |
| vacuum display |
pointer (or digital display) vacuum control table, accurate display of vacuum, easy to set the vacuum |
| timer | LED digital display, in 0-9999H free to set (H / M / S seconds to switch) |
| pressure fluctuations | ≤ 5% |
| Power | AC380V, 50HZ, 2.2KW |
| Placed environment |
laboratory must be controlled by the internal temperature (20 ℃ +5 ℃), in order to achieve the test box temperature requirements. |
Product Description
Battery simulate high altitude low pressure test chamber aim at UL, EN, IEC and other standard test requirements
and design, in a short period of time to achieve low-pressure sample storage state, can automatically control the test cycle, the entire process to monitor the pressure
changes in the box to achieve automatic termination of the test. The battery and battery pack are stored for 6
hours at a pressure equal to or lower than 11.6 kPa and ambient temperature of (20 ± 5) ° C. If the battery is free
from leakage, no exhaust, no disintegration, no rupture and no fire, An experimental battery or battery pack after
the test open circuit voltage is not less than 90% of the voltage before the simulation experiment, that is qualified.
Corresponding Standard
GB/T 31485-2015,GB/T 31241-2014,UN38.3,IEC62133,QC/T743-201X,GB/T 8897.4-2008,
GB/T 21966-2008,
