Phone Charger Plugged Life Tester Plug and Socket Plug Service Life Test Machine

Phone Charger Plugged Life Tester Plug and Socket Plug Service Life Test Machine
Phone Charger Plugged Life Tester Plug and Socket Plug Service Life Test Machine Phone Charger Plugged Life Tester Plug and Socket Plug Service Life Test Machine

Large Image :  Phone Charger Plugged Life Tester Plug and Socket Plug Service Life Test Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE ISO
Model Number: XB-OTS-1220S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units (Min. Order)
Price: Negotiable
Packaging Details: Strong standard export plywood case for Concrete Flexural Strength Test Machine.
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 120 Unit/Units per Month
Detailed Product Description
Power: Electronic Usage: Universal Testing Machine,Battery Crush Equipment,Impact Testing Machine
Product Name: Mobile Phone Test Equipment Warranty: 1 Year
High Light:

impact test equipment

,

test equipment for cell phones

Phone Charger Life SB Insertion Test Machine



Introduction:



Phone Charger Plugged Life Testing Machine is for plug tests on mobile phones and other similar products . With 6 digital displays, 2 samples can be test in the same time. This machine is also suitable for all kinds of connectors, and test result(PEAK data) can be received by automatic core device which is designed by patent.



Standard:

GB/T2423.8-1995 , IEC60068-2-32,Ed2 , GB/T2423.8-1995



3.Technical parameters:

Product Name Phone Charger Plugged Life Testing Machine
Testing speed 5~20 times/min
The height of test roller 0.5 1m/1 m
Roller test warehouse number 2 PCS
Count 6 digital display count(1~999999)
Max weight of sample 5kg
power 1phase 220V ,50-60HZ
Machine size 600*420*430(mm)





Features
1. Use touch screen control to operate simple and intuitive.
2. Independent controller to control the motor, so that the trip to an accurate up to 0.01mm, which is other mechanical control stroke or photoelectric control stroke simple plug test machine can not be compared;
3. The design of the load protection, when the upper and lower limits to set the test machine to automatically stop the action to prevent the sensor was crashed.
4. Ordinary non-computer plug-in testing machine has the following defects:
a single function, can only do plug-in test; stroke is mechanical control (adjust the deflection wheel or adjust the electrical switch), travel accuracy can not meet the connector test requirements;
Protection, because the test procedure is quite simple, when the customer misuse the upper and lower jigs hit together, the program can not stop the test machine work, to make great damage to the sensor;
compared with the horizontal plug force, can be equipped with automatic heart device, Test is not inserted partial; powerful, price concessions. Is a connector manufacturer of a considerable practical utility of the plug test machine.

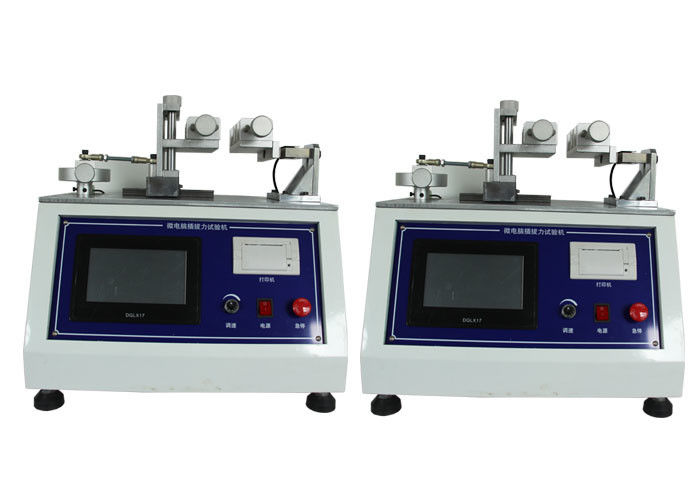

Phone Charger Plugged Life Tester Plug and Socket Plug Service Life Test Machine 0

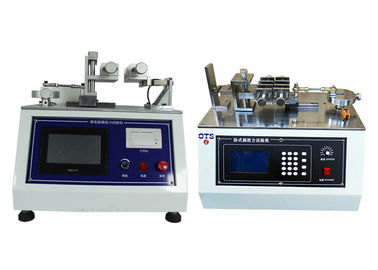

Phone Charger Plugged Life Tester Plug and Socket Plug Service Life Test Machine 1
