Piston Stroke 80mm 2000KN Digital Concrete Compression Test Machine

Piston Stroke 80mm 2000KN Digital Concrete Compression Test Machine
Piston Stroke 80mm 2000KN Digital Concrete Compression Test Machine

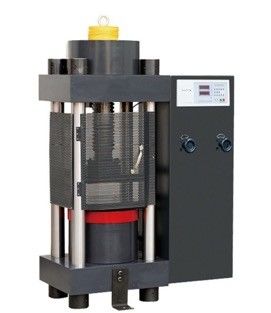

Large Image :  Piston Stroke 80mm 2000KN Digital Concrete Compression Test Machine

Product Details:
Place of Origin: Dongguan China
Brand Name: OTS
Certification: CE
Model Number: Digital Concrete Compression Test Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for ISO 4918 Floor Caster Tester for PVC Flooring Testing
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Key Words: Digital Concrete Compression Test Machine Maximum Test Force(kN): 2000
Test Range Of Force: 10%-100% Deviation: < ±1% Of Indicating Value
Piston Stroke (mm): 80 Column Spacing(mm): 270
Plate Size(mm): 260×300mm Rated Pressure Of Oil Pump: 40MPa
High Light:

2000KN Concrete Compression Test Machine

,

CE Concrete Compression Test Machine

,

digital compression testing machine 2000kn

2000KN Digital Concrete Compression Test Machine / Piston Stroke (Mm) 80​




Overview



This machine adopts the structure of the host and the hydraulic system, which is compact and exquisite. Using hydraulic loading and electronic measuring force, it has the function of charging number rate, peak holding etc, and it is also equipped with a micro printer.





Hydraulic System



The hydraulic oil in the tank goes through the motor to drive the high pressure pump into the oil road, and flows back to the oil valve and enters the oil cylinder. The measuring instrument collects, analyses and displays data through the sensor. The technician controls the flow through the oil delivery valve to realize speed of the test force.




Force Measuring System



1. Manually adjust the returning of oil valve with succinct and flexible operation.

2. With maximum load peak retention function.

3. Dynamically displays the charging load rate.

4. Test report randomly concludes: Test date, test number, damage load, compression strength etc.







Safety Protection Device



When the test force is over 3% of the maximum force, the oil pump stops working for overload protection.







Specification



Name Detail Mark
Maximum test force(kN) 2000 -----
Test range of force 10%-100% -----
Deviation < ±1% of indicating value -----
Distance of upper and lower plate(mm) 320 -----
Piston stroke (mm) 80 -----
Column spacing(mm) 270 -----
Plate size(mm) 260×300mm -----
Piston diameter φ250mm -----
Rated pressure of oil pump 40MPa -----
Resolution of test force 0.01kN -----
