Product Details:
Payment & Shipping Terms:
|
| Key Words: | Hinge Test Machine | Test Specimen Range: | 0~20 Inch |
|---|---|---|---|
| Weight: | 60kg | Test Station: | 1 |
| Fixture: | Adjustable Fixture | Working Face Height Adjustable Range: | 0-60 Mm |
| Brand Name: | OTS | Model Number: | XB-OTS-6600A |
| High Light: | Notebook Spindle Life Testing Machine,PLC Control Life Testing Machine,Adjustable Fixture Lab Testing Equipment |
||

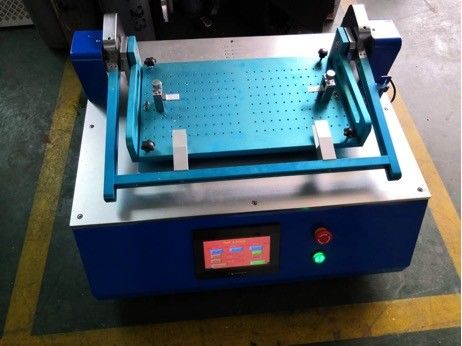

Notebook spindle life testing machine / Working face height adjustable range 0-60 mm / Hinge Test Machine
Usages:
The Notebook spindle life testing machine is suitable for the Notebook laptop computer. After opening the cover multiple times, whether thespindle still has the holding force or the shaft resistance becomes large, the plastic body is damaged. This machine adopts high-end touch LCD screen for full English display, easy to operate, all the numerical control power, angle, speed and frequency. The hardware adopts stepping motor + imported PLC + LCD screen, with high precision, low noise and long life.
Specification:
| Product name | Notebook spindle life testing machine | Model Number | XB-OTS-6600A |
| Power | 1∮ AC220V,50HZ | Weight | 60kg |
| Test station | 1 | Test angle |
0~180° Or 5~360° |
| Test Specimen range |
0~20 Inch |
Test speed |
2~20times/Min |
Test time |
0-99999999 times (can be preset, power-off memory function) |
Test mode |
Manual (debug mode) automatic (test mode) selectable |
Control system |
Seven inch TFT touch screen + PLC + precision motor |
Fixture |
Adjustable fixture |
Working face height adjustable range |
0-60 mm |
||
Protecting system |
Emergency stop function, automatic homing function |
||
Features:
1. The notebook shaft life tester is treated with electrostatic baking paint. The table top and fixture are all treated with pure aluminum oxidation. The whole machine is designed reasonably, the structure is tight, the operation is safe, stable, accurate and meets the requirements;
2, The notebook shaft life tester uses touch screen setting interface, PLC is the control system, driven by precision motor, easy to test, more in line with test requirements;
3, The notebook shaft life tester angle, speed, frequency and other parameters can be preset, user-friendly design, more practical
