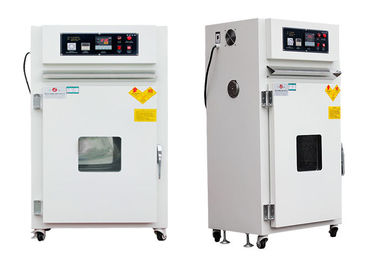

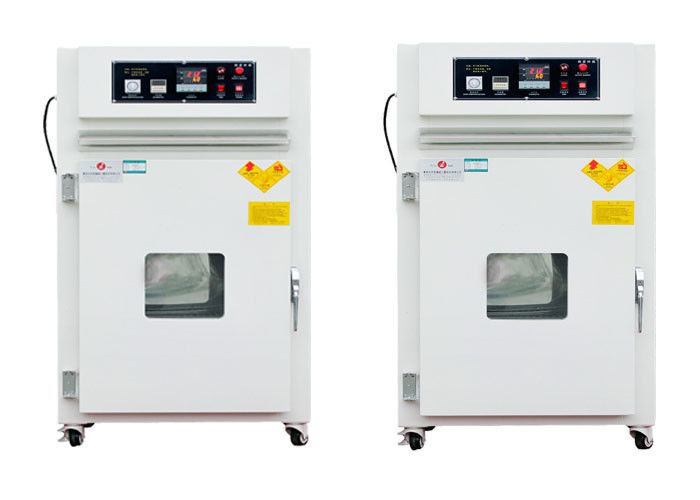

Powder Coating Industrial Drying Oven External Power Cable Port ISO Certificated

Powder Coating Industrial Drying Oven External Power Cable Port ISO Certificated
Powder Coating Industrial Drying Oven External Power Cable Port ISO Certificated Powder Coating Industrial Drying Oven External Power Cable Port ISO Certificated

Large Image :  Powder Coating Industrial Drying Oven External Power Cable Port ISO Certificated

Product Details:
Place of Origin: Dongguan,China
Brand Name: OTS
Certification: CE/ISO
Model Number: XB-OTS-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export plywood case suitable for different and long distance transportation
Delivery Time: 20 working days
Payment Terms: T/T, Western Union
Supply Ability: 300 sets/month
Detailed Product Description
Volume: 150 Liter Temperature Range: RT+10℃~300℃
Inner Oven Size: 50*60*50cm(W*H*D) Power: 1 Phase 220V 50Hz
Cable Port: External Power Customized Size: Acceptable
High Light:

dryer oven machine

,

laboratory drying oven

Powder Coating Industrial Drying Oven External Power Cable Port ISO Certificated

Specification:



  Product name High Temperature oven Model Number XB-OTS-150L
  Power 1 phase 220V 50Hz Cable Port External Power
  Interior size(W*H*L) 50*60*50cm(W*H*D)

Exterior size

(W*H*L)

69*110*64cm(W*H*D)
  Customized size Acceptable Control method PID ,PID automatically adjust the output


Advantages:



1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted.

2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.

3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.

4.Timing device for LED Digital constant timing, providing complete use Conditional design.

5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.

6.Machine continuous running time is above three month

7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down.


  Temp control fluctuation ± 1.5℃ Temperature range


RT+10℃~300℃




  Accuracy ±0.5℃ Temperature resolution 0.1
  Temperature uniformity ±2℃ Power



4.8KW






Key set of

data input

Resolution 0.1 ℃

ntegration time(IT):

0~3600s

Derivative time(DT):

0~900s

Built-in timer function


Protection device

Motor overload protection
Buzzer
Fault indicator
No fuse protection switch






Heating up time

(NO-load)

RT~160℃ about 28min


  Temp controller The microcomputer automatically calculus controller
  Chamber materials

1.Inner chamber materials:SUS stainless steel plate
2.External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating.
3.Insulation material: aluminum silicate glass wool
4.The clapboard Material: Stainless Steel
5.Stainless steel electric heater Material: fin heat pipe type
6.Time control: 0 ~ 999H/M/S adjustable.
7.The rmometry body: T thermocouple

  Air supply method

Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door.


  Use of the environment

Allowable temperature range of 0 ~ 35 ℃



Powder Coating Industrial Drying Oven External Power Cable Port ISO Certificated 0
OTS Equipment Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1.Device installation;
2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:

1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service

FAQ:
1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine

4. Do you have a branch company or service office in my country?
Yes,we have branchs over the world.

5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
