Precise Constant Temperature Humidity Chamber, JIS C60068-2-3-1987 High Humidity Temperature Environment Chamber

Precise Constant Temperature Humidity Chamber, JIS C60068-2-3-1987 High Humidity Temperature Environment Chamber
Precise Constant Temperature Humidity Chamber, JIS C60068-2-3-1987 High Humidity Temperature Environment Chamber
video play

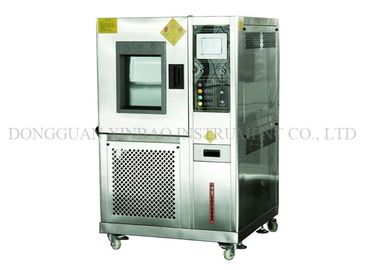

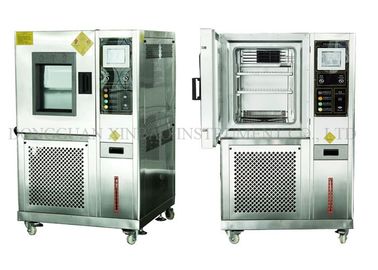

Large Image :  Precise Constant Temperature Humidity Chamber, JIS C60068-2-3-1987 High Humidity Temperature Environment Chamber

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: ISO , CE ...
Model Number: XB-OTS-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Strong wooden case for Temperature Humidity Chamber Drug Stability Test Chamber
Delivery Time: 20 working days after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 351 Units per Month
Detailed Product Description
Temp Range: 0~60℃ Temp Resolution: 0.1℃
Temp Fluctuation: High Temp ±0.5, Low Temp ±1 Temp Uniformity: ±1
Humidity Range: 40~90%RH Humidity Fluctuation: ±3%RH
Refrigerant: R134a Warranty: 14 Months
High Light:

high low temperature chamber


temperature humidity test chamber

 Temperature Humidity Chamber Drug Stability Test Chamber



The product has precise temperature and humidity control system. It provides various environment simulation conditions for industrial research and biotechnology testing. Therefore, it can be widely applied to aseptic tests such as pharmaceuticals, textiles and food processing, stability inspection and industrial Product raw material performance, product packaging, product life and other tests.


Technical Parameters:





XB-OTS-100 XB-OTS-150 XB-OTS-250 XB-OTS-300 XB-OTS-400 XB-OTS-800
Volume(L) 100 150 250 300 400 800
Temp range (℃) 0~60℃
Temp resolution 0.1℃
Temp Fluctuation (℃) High temp ±0.5, low temp ±1
Temp uniformity(℃) ±1
Humidity range 40~90%RH
Power(W) 1100 1400 1950 2000 2600 3200
Humidity Fluctuation ±3%RH
Refrigerant R134a
power supply 220V±10%,50/60Hz±2%
Continuous running time Long time continuous operation
Work environment (℃) 5~40
Outer chamber size(cm)W×D×H 58×61×116 61×63×135 71×73×153 71×77×164 84×100×1209 1237×612×1196
Inner chamber size(cm)W×D×H 45×38×59 48×40×78 58×50×85 58×54×95 70×55×1140 1220×585×1123
Net/gross(kg) 82/125 95/138 103/147 115/157 125/180 185/250



Structural Features

☆ Large-screen LCD display, multi-group data display, and menu-type operation interface are easy to understand and easy to operate.

☆ temperature, humidity control using the latest digital display multi-stage program control technology, high precision, no overshoot.

☆ PID control mode, precise control of temperature and humidity, small fluctuations, menu-driven operation pages, easy to understand and easy to operate.

☆ A program with 99 cycles, 30 cycles per cycle, 99 hours and 99 minutes per cycle, can satisfy almost any complicated experimental process.

☆ If the temperature exceeds the limit, the operation will be interrupted automatically and the operator will be notified by sound and light alarm. Ensure that the experiment runs safely without accidents.

☆ The cabinet and studio adopt garden arc structure design.

☆ The studio is made of mirror stainless steel plate, and the shelf can be freely adjusted to height and freely assembled to facilitate cleaning in the working room.

☆ The work room is equipped with a power socket and a germicidal lamp to facilitate sterilization in the work chamber.

☆ The outer surface of the box is spray-coated, the whole model is elegant and reasonable, and it is easy to use and maintain.

☆ The incubator door is designed as a double door, and the inner door is tempered glass. It can directly observe the situation of the culture in the work room. The outer door adopts a magnetic door seal and has good sealing performance.

☆ The use of international brand compressors, independent research and development of compressor cooling system, can effectively extend the life of the compressor.

☆ Adopt JAKEL flow circulation fan, coupled with the unique design of the air duct structure, to create a good air circulation system, effectively guarantee the temperature uniformity inside the box.

☆ We use international famous brand humidity sensor and independently designed built-in water tank heating pipe humidification system to effectively ensure humidity deviation.

☆ With leakage protector

☆ Auxiliary thermostat is installed to ensure that the product can work normally (for heating) if the main temperature control loses control.





1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are manufacturer of Wholesale Environmental High Temperature Chamber Price Temperature Test Machine. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.


2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.


3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized

machines according to your requirements. And we can also put your logo on the machine


4. Do you have a branch company or service office in my country?

We have offices in the belowing:

Address: 1201 N Park Ave Tucson AZ 85719

Tel:+(848)66764653 Fax:(+848)37527888
Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.

Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd
Tel: (+65) 96857857
Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349

Italy Dealer :AMSE SRL
Address: Strada della Cebrosa 86, 10156 Torino Italy

Tel:0512-67078249 Fax: 0512-67078749
Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province


Tel:04-24731563 Fax:04-23804092
Address: No. 551-1, 4, Central Road, Taichung City, Taiwan


5. How to install and use the product?

We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site
