Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-225L | Product Name: | Environmental Reliability Program Temperature Humidity Test Chamber 80 L 150L |
|---|---|---|---|
| Temperature Control: | -40°C ~ +150 °C | Humidity Control: | 20%~98% RH |
| Body Materials: | SUS#304 Stainless Steel Plate | Compressor: | Frans/s"Tecumseh" |
| Application: | Electronic,Auto,plastic,Instrument | Temperature Accuracy: | 0.5°C |
| Temperature Rate Of Change( ºC/Min): | 3-20ºC/Min | Temp.& Humidity Uniformity: | ≤±1.5℃,≤±2.5% RH |
| Heat Up&Cool Down Time: | ≤5℃/min For Heating; ≤ 1.2℃/min For Cooling | Cooling Type: | Water Cold |
| Screen Size &Display: | 7" TFT-LCD | Lead Time: | 18 Days |
| High Light: | high low temperature chamber,temperature humidity test chamber |
||

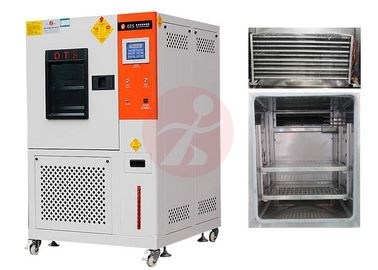

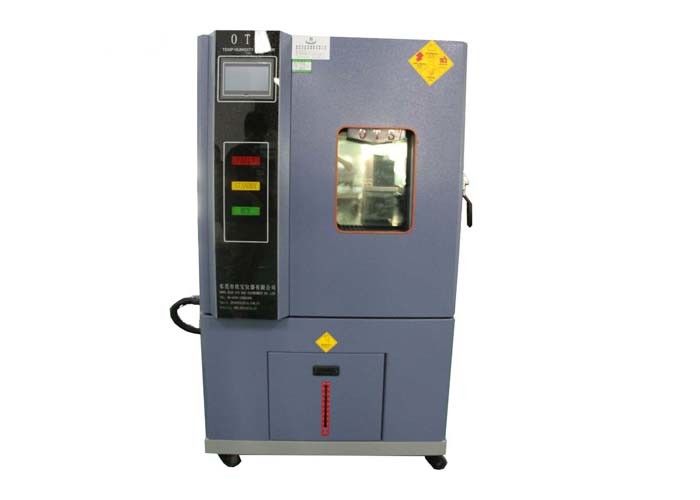

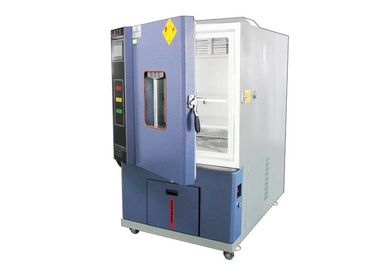

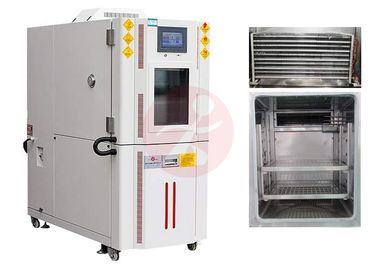

Programmable High Low Temperature Climatic Control Test Camera
Other model for options
| Model | XB-OTS-225L | XB-OTS-408L | XB-OTS-800L | XB-OTS-1000L |
| Chamber Volume(L) | 225L | 408L | 800L | 1000L |
| inner chamber size(cm) | 60*75*50 | 80*85*60 | 100*100*80 | 100*100*100 |
| External size(cm) | 110*167*110 | 130*177*120 | 150*192*140 | 150*192*160 |
Technical Specification:
| Model | XB-OTS-80L | XB-OTS-150L | ||
| Interior Dimension (mm) | 400×500×400 | 500×600×500 | ||
| Overall Dimension (mm) | 90×142×100 | 100×152×110 | ||
| Interior Dimension (mm) | 600×850×800 | 800×1000×1000 | ||
| Overall Dimension (mm) | 1210×1140×1960 | 1280×1480×2030 | ||
| Parameter | Temp. range | Model S:-70°C~+150°C ,Model L: -40°C~+150°C | ||
| Humidity Range | 20% ~ 98% R.H | |||
| Humidity bias | +2~-3%R.H | |||
| Temp. fluctuation | ≤±0.5°C | |||
| Temp. uniformity | ≤2°C | |||
| Heating rate | 1.0~3.0°C/min | |||
| Cooling rate | 1~1.5°C/min | |||
| Material | Shell material | High-quality SUS304 stainless steel plate | ||
| Liner material | High-quality SUS304 stainless steel plate | |||
| Insulation materials | Ultra-fine glass fiber insulation cotton / rigid polyurethane foam | |||
| Door seal | Double resistance to high and low temperature aging and hardening of refined silicone seal | |||
| Cold and heat exchange system | Controller | JIANQIAO Special color touch screen Controller | ||
| Accuracy range: temperature ± 0.1 °C, indicating accuracy: temperature ± 0.1 °C, resolution: ± 0.1 °C | ||||
| Circulatory system | Temperature low-noise motors, cycles, , stainless steel multi-leaf type centrifugal fan,the test time can set 999999 hours | |||
| Water supply | Electronic device controller automatic control of liquid, and more than recycled water, with water alarm | |||
| Humidification mode | External isolated, stainless steel electric steam humidification mode occurs | |||
| Dehumidification mode | Condensation method using the dew point temperature of the evaporator coil dehumidification mode laminar contacts | |||
| Refrigeration | Unit cooling mode / Dual (cascade) cooling method (air-cooled) | |||
| Condenser/ Evaporator | Tecumseh | |||
| Compressor | France " Tecumseh " closed refrigeration compressor / France "Taikang" Hermetic Refrigeration Compressors | |||
| Security Devices | Power overload, leakage, grounding, over-temperature protection (with voice prompts), fast fuse, compressor over-voltage protection | |||
| Standard |
Resistant to high and low temperature heat tempered glass hollow glass windows: 300 × 200 (mm), a lighting, , the two sample holder, |
|||
| Power supply | ACø220V·50HZ/380V·50HZ | |||
| Ambient temperature | 15°C~+30°C ≤85%R.H | |||
Chamber Summary:
Easy To Operating Performance of climate temperature humidity test chamber for electronics, plastic products, electrical appliances, instruments, metals, chemicals, building materials, food, vehicles, aerospace, medical ... Products of quality.
Easy To Operating Temperature Humidity Chamber specially test various materials resistance to heat, cold, dry, wet performance
Working principle
Easy To Operating Temperature Humidity Chamber (heating and cooling) and humidification is composed of two parts. Through installation in box within top Department of rotating fan, will air row into box achieved gas cycle, and balance box within of temperature, and humidity, by box built-in of temperature, and humidity sensor collection of data, biography to temperature, and humidity controller (micro information processing device) for edit processing, issued thermostat adjustable wet instruction, through air heating unit, and condensation tube and sink within heating evaporation unit of common completed.
Control
English LCD display LCD touch-panel, the screen on the input data, and programmable temperature and humidity, backlight adjustable 17, curve, curve of setting/display value. Can display a variety of alerts, failure occurs through the screen display, eliminating failures, eliminate misuse. Multi-PID control functions, sophisticated monitoring functions, and the data displayed on the screen.
Standard Features:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30IEC68-2-03 EIA - 364-31C EIA - 364-59
Please feel FREE to contact us if you have any needs.
