| Name: | Mask Dead Cavity Tester | Breathing Simulator To Simulate Breathing Frequency Modulation: | 10～40 Times/min |
|---|---|---|---|
| Adjustable Range Of Simulated Tidal Volume: | 0.5～3.0L/min | The Volume Fraction Of Carbon Dioxide Gas Source: | 5.0±0.1% |
| Range Of Carbon Dioxide Flowmeter: | Not Less Than 40L/min | Range Of Carbon Dioxide Analyzer: | Not Less Than 12% |
| Accuracy: | Not Less Than 0.1% | Ventilation Fan: | Wind Speed 0.5m/s |
| High Light: | 3.0L/Min Mask Dead Cavity Tester,PM2.5 Mask Dead Cavity Tester,3.0L/Min dead cavity detector |
||

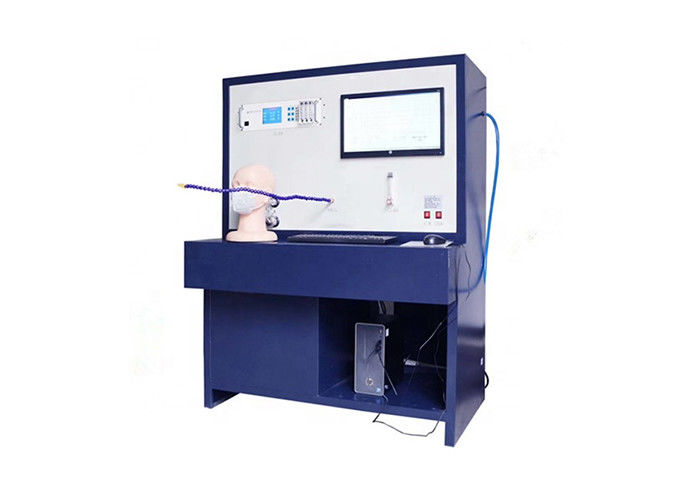

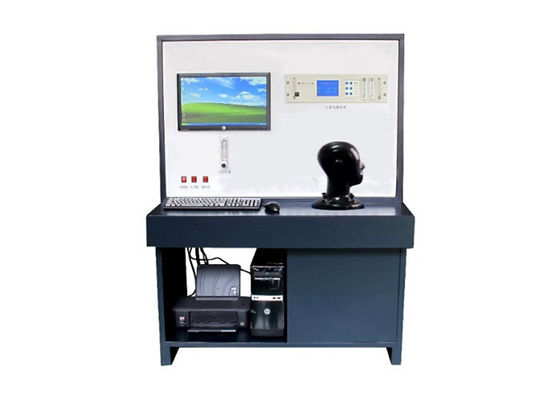

Protective Respirator PM2.5 3.0L/Min Mask Dead Cavity Tester
Overview:
The protective mask dead cavity tester is used to detect the protective mask dead cavity, that is, the volume fraction of CO2 in the inhaled gas. The testing standards must comply with the standard GB2626-2019 "Respiratory protective equipment-Self-priming filter anti-particulate respirator", TAJ1001-2015 "PM2.5 protective mask" dead cavity detection project and GB/T16556-2007 "Self-open Mask-type dead space detection items such as the carbon dioxide content in the inhaled gas of the mask in the "compressed air respirator";
Technical parameters:
| Name: | Mask Dead Cavity Tester | Breathing Simulator To Simulate Breathing Frequency Modulation: | 10～40 Times/min |
|---|---|---|---|
| Adjustable Range Of Simulated Tidal Volume: | 0.5～3.0L/min | The Volume Fraction Of Carbon Dioxide Gas Source: | 5.0±0.1% |
| Range Of Carbon Dioxide Flowmeter: | Not Less Than 40L/min | Range Of Carbon Dioxide Analyzer: | Not Less Than 12% |
| Accuracy: | Not Less Than 0.1% | Ventilation Fan: | Wind Speed 0.5m/s |
1. Breathing simulator to simulate breathing frequency modulation: 10～40 times/min
2. Adjustable range of simulated tidal volume: 0.5～3.0L/min
3. The volume fraction of carbon dioxide gas source is 5.0±0.1%
4. Range of carbon dioxide flowmeter: not less than 40L/min
5. Range of carbon dioxide analyzer: not less than 12%, accuracy is not less than 0.1%
6. Ventilation fan: wind speed 0.5m/s
